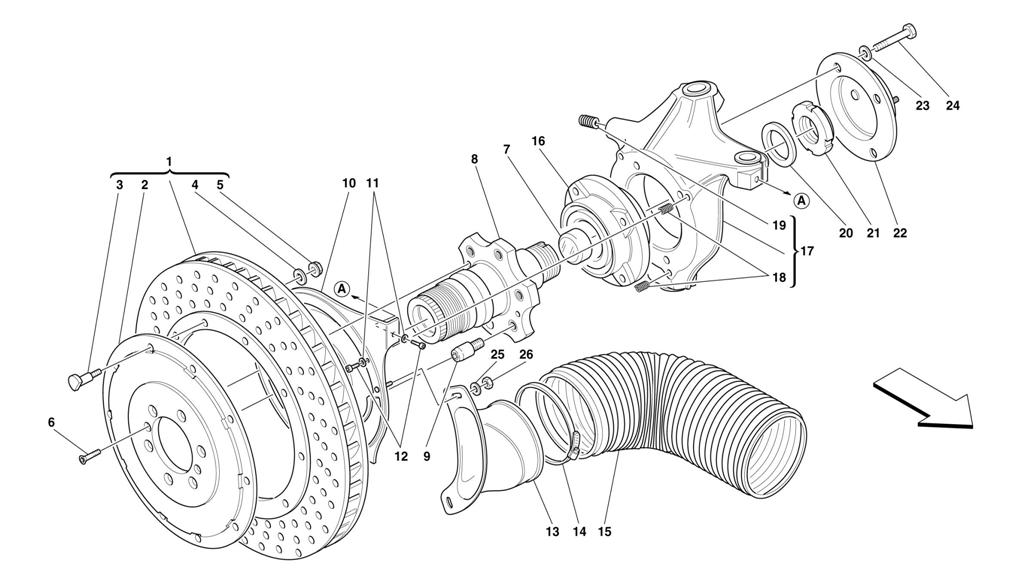

FRONT BRAKE DISC AND STEERING KNUCKLE

Go to Split View

FRONT BRAKE DISC AND STEERING KNUCKLE

Location Part # Quantity* Description Price Add To Cart
1 165272 1 L.H. FRONT BRAKE DISC WITH FLANGE Unavailable
1 165273 1 R.H. FRONT BRAKE DISC WITH FLANGE Unavailable
2 165281 2 FLANGE FOR BRAKE DISC Unavailable
3 139720 20 SCREW $34.21
4 139721 20 WASHER $8.20
5 139951 20 NUT $1.05
6 14441324 4 SCREW Unavailable
7 14329201 2 CUP $10.50
8 163552 1 R.H. FRONT WHEEL HUB $3,678.20
8 163553 1 L.H. FRONT WHEEL HUB $3,503.05
9 150780 12 WHEEL STUD $68.39
10 164505 1 L.H. AIR INTAKE $559.61
10 164504 1 R.H. AIR INTAKE $559.61
11 10519377 10 WASHER Unavailable
12 14304187 10 SCREW Unavailable
13 157660 1 R.H. AIR INTAKE DUCT $1,547.98
13 157661 1 L.H. AIR INTAKE DUCT $1,547.98
14 13001290 4 SCREW COLLAR Unavailable
15 167005 2 AIR DELIVERY TUBE $787.83
16 150608 2 BEARING $11,616.78
17 151473 1 COMPLETE L.H. STEERING KNUCKLE $1,380.40
17 151474 1 COMPLETE R.H. STEERING KNUCKLE Unavailable
18 13521770 10 THREADED INSERT $2.31
19 13524670 4 THREADED INSERT Unavailable
20 112800 2 WASHER $16.48
21 150785 2 RING NUT $311.10
22 150784 2 COVER $21.40
23 166448 8 WASHER $8.97
24 16323934 8 SCREW $18.07
25 12638124 4 WASHER $0.90
26 14058311 4 NUT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
