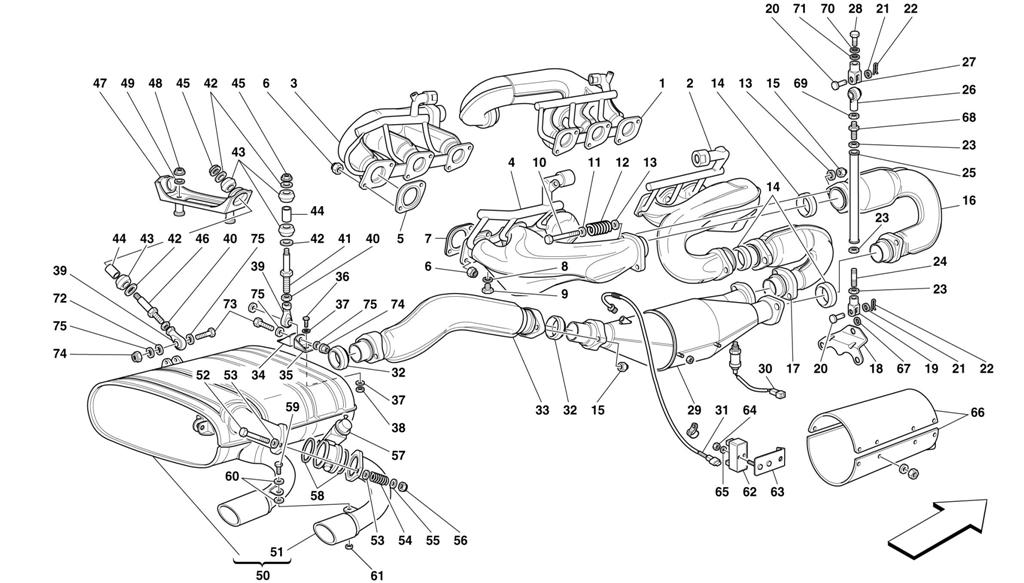

EXHAUST SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 162953 1 L.H. FRONT EXHAUST MANIFOLD $9,540.27
2 162854 1 R.H. FRONT EXHAUST MANIFOLD $9,540.27
3 163083 1 L.H. REAR EXHAUST MANIFOLD Unavailable
4 163080 1 R.H. REAR EXHAUST MANIFOLD $9,233.13
5 159243 6 L.H. GASKET $94.17
6 138392 24 NUT $1.50
7 159242 6 R.H. GASKET $94.17
8 10298460 12 GASKET $0.90
9 110860 12 THREADED PLUG $19.77
10 137431 24 SCREW $24.34
11 114749 24 SPACER $5.16
12 111743 24 SPRING $16.46
13 128010 48 WASHER $3.92
14 154984 8 GASKET $25.96
15 118251 24 NUT $28.91
16 165812 1 HOSE FROM R.H. REAR EXHAUST MANIFOLD TO R.H. CATALYST -Not for USA $3,832.62
16 165814 1 HOSE FROM L.H. REAR EXHAUST MANIFOLD TO L.H. CATALYST -Not for USA $3,832.62
16 166826 1 HOSE FROM R.H. REAR EXHAUST MANIFOLD TO R.H. CATALYST -Valid for USA $1,802.70
16 166828 1 HOSE FROM L.H. REAR EXHAUST MANIFOLD TO L.H. CATALYST -Valid for USA $2,226.10
17 165813 1 HOSE FROM L.H. FRONT EXHAUST MANIFOLD TO L.H. CATALYST -Not for USA $4,064.85
17 166825 1 HOSE FROM R.H. FRONT EXHAUST MANIFOLD TO R.H. CATALYST -Valid for USA $2,228.05
17 166827 1 HOSE FROM L.H. FRONT EXHAUST MANIFOLD TO L.H. CATALYST -Valid for USA $2,228.05
17 165811 1 HOSE FROM R.H. FRONT EXHAUST MANIFOLD TO R.H. CATALYST -Not for USA $3,480.76
18 166442 2 SUPPORT PLATE $37.33
19 10007871 2 FORK $22.41
20 10050814 4 PIN Unavailable
21 10732214 4 WASHER $1.20
22 10734301 4 SPLIT PIN Unavailable
23 16102314 6 NUT Unavailable
24 13543724 2 STUD Unavailable
25 166464 2 SUPPORT ROD $241.55
26 140755 2 BALL JOINT $211.10
27 166451 2 FORK $32.46
28 14359274 2 SCREW Unavailable
29 163026 2 CATALYST Unavailable
30 158730 2 LAMBDA FEELER $135.00
31 157501 2 THERMOCOUPLE Superseded
32 159906 4 GASKET Unavailable
33 162950 1 R.H. EXHAUST EXTENSION Unavailable
33 162954 1 L.H. EXHAUST EXTENSION $3,488.33
34 167006 2 L.H. BRACKET FOR SILENCER FIXING $9.72
35 149247 2 R.H. BRACKET FOR SILENCER FIXING $9.72
36 10902224 4 SCREW $0.90
37 14488624 8 WASHER Unavailable
38 14048115 4 NUT Superseded
39 140754 6 BALL JOINT $194.86
40 16102314 6 NUT Unavailable
41 159369 2 SILENCER SUPPORT PIN $29.21
42 167178 12 WASHER $2.38
43 154084 12 ANTIVIBRATION PAD $10.86
44 154085 6 SPACER -Not as spare part now -Replaced by 108294 Unavailable
44 108294 6 SPACER $118.73
45 133215 6 NUT Superseded
46 159369 4 PIN $29.21
47 159233 1 BRACKET $250.22
48 16100825 2 NUT $7.90
49 14496524 2 WASHER $0.90
50 163023 1 R.H. REAR SILENCER Unavailable
50 163024 1 L.H. REAR SILENCER Unavailable
51 162952 1 R.H. EXHAUST TERMINAL $503.42
51 162956 1 L.H. EXHAUST TERMINAL $419.66
52 145181 4 SCREW $44.13
53 12646778 8 WASHER Unavailable
54 111743 4 SPRING $16.46
55 114749 4 SPACER $5.16
56 118251 4 NUT $28.91
57 155006 2 BY-PASS VALVE Unavailable
58 119368 4 GASKET $373.50
59 16043221 2 SCREW Unavailable
60 14496524 4 WASHER $0.90
61 118251 2 NUT $28.91
62 179278 2 CATALYST TEMPERATURE CONTROL STATION $621.16
63 168108 2 CONTROL UNIT FIXING BRACKET $101.78
64 62790300 4 NUT $0.90
65 10519224 4 WASHER $0.90
66 162732 2 SHIELD FOR HEAT PROTECTION $169.08
67 128010 4 WASHER $3.92
68 168043 2 PIN $27.59
69 16102924 2 NUT $13.38
70 127496 2 WASHER $0.90
71 12646778 2 WASHER Unavailable
72 12625224 12 SPACER WASHER Unavailable
73 16043834 6 SCREW Unavailable
74 133215 6 NUT Superseded
75 14496524 12 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
