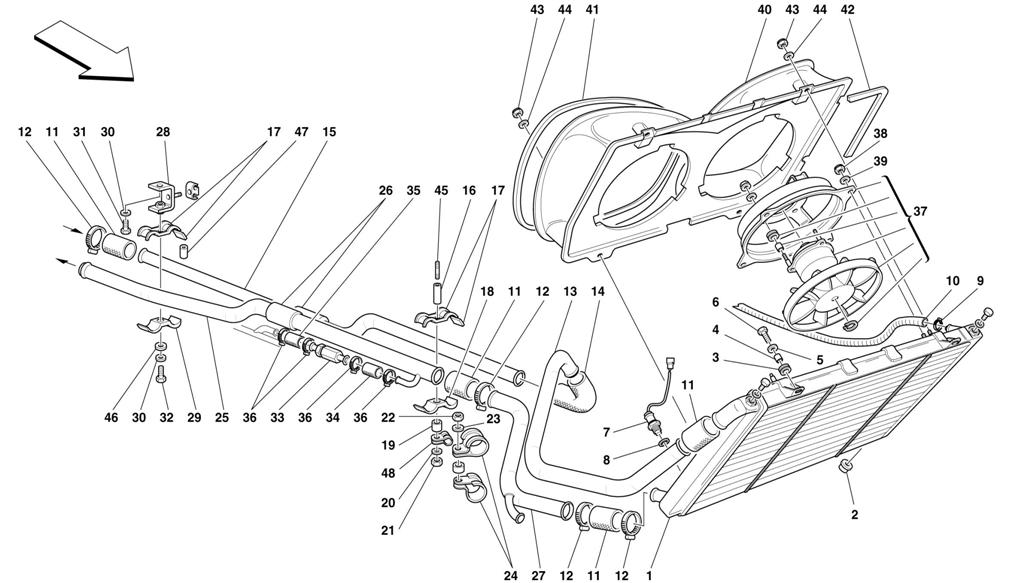

COOLING - RADIATOR AND PIPES

Go to Split View

COOLING - RADIATOR AND PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 157034 *Qty: 1 WATER RADIATOR $8,825.71
Location: 2 Prev | Next Part: 138926 *Qty: 2 RUBBER $4.95
Location: 3 Prev | Next Part: 103549 *Qty: 2 CABLE GROMMET $1.37
Location: 4 Prev | Next Part: 103550 *Qty: 2 SPACER $2.16
Location: 5 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 6 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 158655 *Qty: 1 TEMPERATURE SWITCH $26.16
Location: 8 Prev | Next Part: 101508 *Qty: 1 GASKET $1.28
Location: 9 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 154849 *Qty: 1 RUBBER PIPE $404.65
Location: 11 Prev | Next Part: 138981 *Qty: 5 RUBBER PIPE $39.70
Location: 12 Prev | Next Part: 13000690 *Qty: 12 SCREW COLLAR $0.90
Location: 13 Prev | Next Part: 154843 *Qty: 1 FRONT DELIVERY TUBE $210.93
Location: 14 Prev | Next Part: 158166 *Qty: 1 RUBBER PIPE $275.94
Location: 15 Prev | Next Part: 154842 *Qty: 1 CENTRAL RETURN TUBE $212.29
Location: 16 Prev | Next Part: 166690 *Qty: 1 SPACER $12.45
Location: 17 Prev | Next Part: 166688 *Qty: 2 BRACKET WITH SHEATH $33.54
Location: 18 Prev | Next Part: 166689 *Qty: 1 BRACKET WITH SHEATH $34.13
Location: 19 Prev | Next Part: 166730 *Qty: 1 SPACER $7.02
Location: 19 Prev | Next Part: 165878 *Qty: 1 SPACER -Not as spare part now -Replaced by 166730 $8.94
Location: 20 Prev | Next Part: 11181874 *Qty: 1 WASHER $0.90
Location: 21 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 22 Prev | Next Part: 102948 *Qty: 1 NUT Superseded
Location: 23 Prev | Next Part: 12648224 *Qty: 1 WASHER $0.90
Location: 24 Prev | Next Part: 107002 *Qty: 2 BRACKET WITH SHEATH $28.38
Location: 25 Prev | Next Part: 154845 *Qty: 1 CENTRAL DELIVERY TUBE $149.01
Location: 26 Prev | Next Part: 139412 *Qty: 4 PROTECTIO RUBBER $6.16
Location: 27 Prev | Next Part: 154844 *Qty: 1 FRONT RETURN TUBE $206.71
Location: 28 Prev | Next Part: 149196 *Qty: 1 BRACKET $110.55
Location: 29 Prev | Next Part: 147959 *Qty: 1 BRACKET WITH SHEATH $40.12
Location: 30 Prev | Next Part: 11181874 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 32 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 33 Prev | Next Part: 64893000 *Qty: 1 BY-PASS VALVE $688.47
Location: 34 Prev | Next Part: 64774300 *Qty: 1 SLEEVE $27.49
Location: 35 Prev | Next Part: 64892900 *Qty: 1 RUBBER HOSE Unavailable
Location: 36 Prev | Next Part: 13000490 *Qty: 4 SCREW COLLAR Superseded
Location: 37 Prev | Next Part: 168071 *Qty: 2 ELECTROFAN $1,117.28
Location: 38 Prev | Next Part: 102741 *Qty: 8 NUT $0.90
Location: 39 Prev | Next Part: 10519424 *Qty: 8 WASHER Unavailable
Location: 40 Prev | Next Part: 63654300 *Qty: 1 AIR CONVEYOR $4,551.61
Location: 41 Prev | Next Part: 64160600 *Qty: 2 GASKET $7.83
Location: 42 Prev | Next Part: 64131500 *Qty: 1 GASKET $39.60
Location: 43 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 44 Prev | Next Part: 14496478 *Qty: 4 WASHER $0.90
Location: 45 Prev | Next Part: 133843 *Qty: 1 STUD $1.48
Location: 46 Prev | Next Part: 14496424 *Qty: 1 WASHER Superseded
Location: 47 Prev | Next Part: 170660 *Qty: 1 SPACER $9.59
Location: 48 Prev | Next Part: 10441690 *Qty: 1 BRACKET WITH SHEATH $0.90

* Quantity shown indicates the number of pieces used in the diagram.
