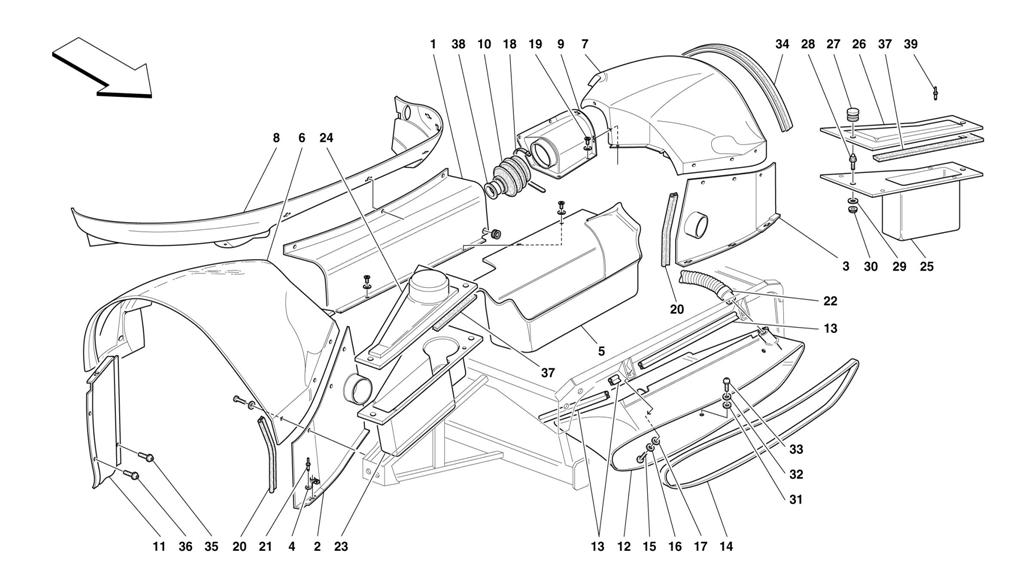

BODY - OUTER ELEMENTS - FRONT PART

Go to Split View

BODY - OUTER ELEMENTS - FRONT PART

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64762500 *Qty: 1 CENTRAL FRONT SHIELD $1,055.92
Location: 2 Prev | Next Part: 64130500 *Qty: 1 R.H. SIDE LOWER GRAVEL GUARD COVER $2,089.89
Location: 3 Prev | Next Part: 64130600 *Qty: 1 L.H. SIDE LOWER GRAVEL GUARD COVER $2,032.09
Location: 4 Prev | Next Part: 62471100 *Qty: 12 BRACKET $14.95
Location: 5 Prev | Next Part: 64975800 *Qty: 1 BAG CASE Call
Location: 6 Prev | Next Part: 63535000 *Qty: 1 R.H. FRONT GRAVEL GUARD $9,102.26
Location: 7 Prev | Next Part: 63535100 *Qty: 1 L.H. FRONT GRAVEL GUARD $4,440.54
Location: 8 Prev | Next Part: 64762600 *Qty: 1 SEAL BETWEEN GRAVEL GUARD AND CURVED ELEMENT $1,497.03
Location: 9 Prev | Next Part: 156339 *Qty: 1 L.H. PROTECTION CUP $440.49
Location: 9 Prev | Next Part: 156340 *Qty: 1 R.H. PROTECTION CUP $491.47
Location: 10 Prev | Next Part: 156416 *Qty: 2 PROTECTION RUBBER BOOT Call
Location: 11 Prev | Next Part: 63673000 *Qty: 1 R.H. FRONT SEAL $744.70
Location: 11 Prev | Next Part: 63673100 *Qty: 1 L.H. FRONT SEAL $1,847.51
Location: 12 Prev | Next Part: 63654200 *Qty: 1 AIR CONVEYOR Call
Location: 13 Prev | Next Part: 64131300 *Qty: 3 GASKET $39.92
Location: 14 Prev | Next Part: 64131200 *Qty: 1 GASKET Call
Location: 15 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 11181874 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 18 Prev | Next Part: 157409 *Qty: 4 CLAMP $1.60
Location: 19 Prev | Next Part: 169611 *Qty: 16 SCREW $1.39
Location: 19 Prev | Next Part: 64047400 *Qty: 16 SCREW -Not as spare part now -Replaced by 169611 Call
Location: 20 Prev | Next Part: 64130900 *Qty: 4 GASKET $41.75
Location: 21 Prev | Next Part: 64722000 *Qty: 8 RIVET $2.38
Location: 22 Prev | Next Part: 64991700 *Qty: 1 TUNNEL REFRIGERATING PIPE $392.22
Location: 23 Prev | Next Part: 64991600 *Qty: 1 R.H. CONTAINER $1,720.63
Location: 24 Prev | Next Part: 65020500 *Qty: 1 R.H. CONTAINER COVER Call
Location: 25 Prev | Next Part: 64995100 *Qty: 1 L.H. CONTAINER $2,011.97
Location: 26 Prev | Next Part: 65020600 *Qty: 1 L.H. CONTAINER COVER $972.06
Location: 27 Prev | Next Part: 60727200 *Qty: 5 BUTTON Superseded
Location: 28 Prev | Next Part: 63992200 *Qty: 5 SCREW TAP $10.99
Location: 29 Prev | Next Part: 14496377 *Qty: 5 WASHER $0.99
Location: 30 Prev | Next Part: 113647 *Qty: 5 NUT $0.90
Location: 31 Prev | Next Part: 12643778 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 166467 *Qty: 1 WASHER $1.04
Location: 33 Prev | Next Part: 13274277 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 64131000 *Qty: 2 GASKET Call
Location: 35 Prev | Next Part: 169814 *Qty: 4 SCREW $1.54
Location: 36 Prev | Next Part: 168133 *Qty: 4 SCREW Superseded
Location: 37 Prev | Next Part: 65020900 *Qty: 2 GASKET -Not as spare part now -Replaced by 65193700 and 65193800 Call
Location: 37 Prev | Next Part: 65193700 *Qty: 1 R.H. GASKET $16.60
Location: 37 Prev | Next Part: 65193800 *Qty: 1 L.H. GASKET $16.60
Location: 38 Prev | Next Part: 156417 *Qty: 2 RING NUT $37.20
Location: 39 Prev | Next Part: 60888500 *Qty: 8 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
