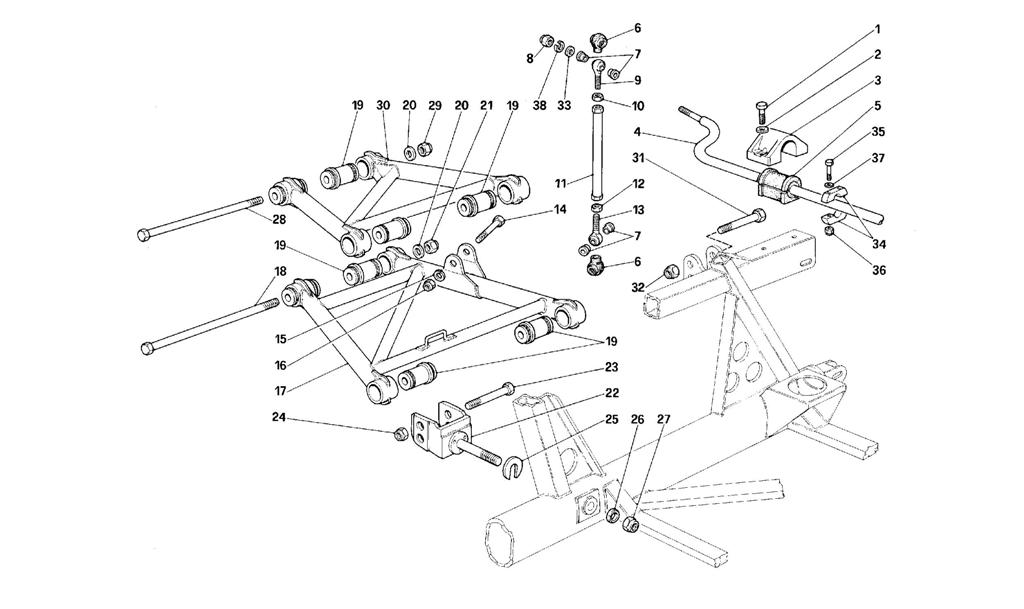

REAR SUSPENSION - LEVERS

REAR SUSPENSION - LEVERS

Location Part # Quantity* Description Price Add To Cart
1 14306421 4 Screw Superseded
2 14499401 4 Washer Unavailable
3 135901 2 Support $36.62
4 135171 1 Stabilizer rod $795.51
5 135947 2 Plug $36.64
6 124622 4 Protection $18.31
7 129383 8 Spacer Unavailable
8 147985 2 Nut $0.90
9 129382 2 Ball joint $197.78
10 16102314 2 Nut Unavailable
11 135157 2 Pipe $100.58
12 16102914 2 Nut $6.31
13 129393 2 Ball joint $209.88
14 16044121 2 Screw Unavailable
15 10519624 4 Washer Unavailable
16 16104411 2 Nut $0.90
17 134475 1 Lever $2,611.27
17 134476 1 Lever $3,280.89
18 132935 2 Screw $242.99
19 154537 16 Flamblock $73.22
20 106616 4 Washer Unavailable
21 148020 2 Nut $5.28
22 192280 4 Fork Unavailable
23 128368 4 Screw Unavailable
24 148020 4 Nut $5.28
25 107340 4 Washer shim mm. 2.5 Unavailable
25 107341 0 Washer shim mm.3 (Possible mounting) Unavailable
25 107342 0 Washer shim mm.3,25 (Possible mounting) $1.14
25 101039 0 Washer shim mm.1 (Possible mounting) Unavailable
25 107338 0 Washer shim mm.1.5 (Possible mounting) Unavailable
25 107339 0 Washer shim mm.2 (Possible mounting) Unavailable
26 101041 4 Washer Unavailable
27 150238 4 Nut Unavailable
28 134657 2 Screw $211.91
29 148020 2 Nut $5.28
30 134486 2 Lever $2,246.72
31 121693 4 Screw $136.72
32 148020 4 Nut $5.28
33 14496501 2 Washer Unavailable
34 138079 4 Ring $58.92
35 10978621 4 Screw $13.89
36 169180 4 Nut Unavailable
37 14496301 4 Washer $1.81
38 14499401 2 Washer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
