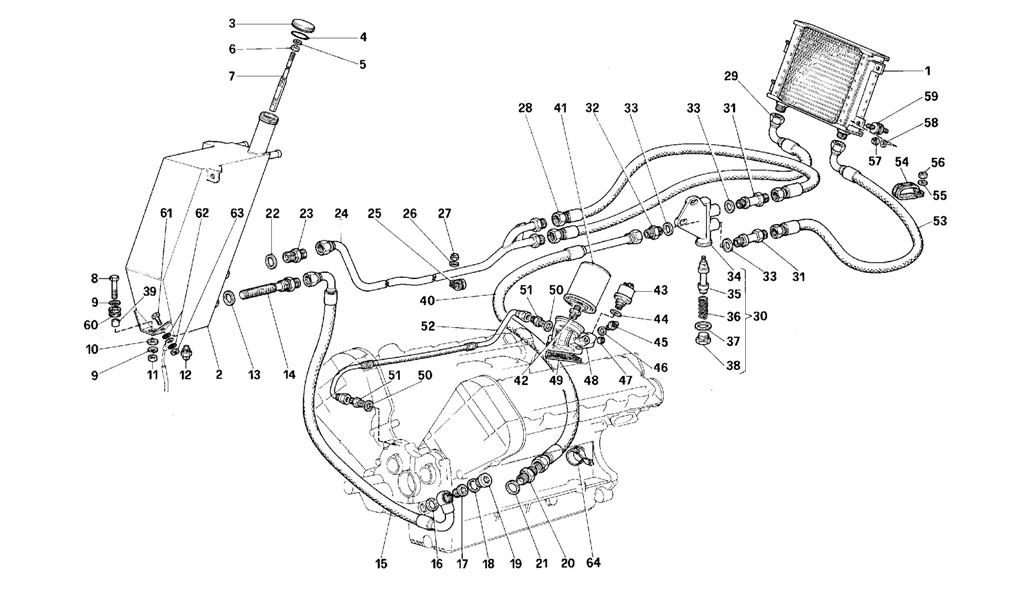

LUBRICATION SYSTEM

Go to Split View

LUBRICATION SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 134675 *Qty: 1 Oil radiator $1,794.52
Location: 2 Prev | Next Part: 134550 *Qty: 1 Oil tank $2,825.26
Location: 3 Prev | Next Part: 134896 *Qty: 1 Plug -Valid till depletion $167.58
Location: 3 Prev | Next Part: 145638 *Qty: 1 Plug -Valid after depletion of 134896 $210.93
Location: 4 Prev | Next Part: 134907 *Qty: 1 Gasket $1.83
Location: 5 Prev | Next Part: 12601279 *Qty: 1 Washer Superseded
Location: 6 Prev | Next Part: 15896214 *Qty: 1 Nut Call
Location: 7 Prev | Next Part: 134906 *Qty: 1 Oil stick $10.80
Location: 8 Prev | Next Part: 10902624 *Qty: 3 Screw $0.90
Location: 9 Prev | Next Part: 12643724 *Qty: 6 Washer Superseded
Location: 10 Prev | Next Part: 127494 *Qty: 3 Washer $0.90
Location: 11 Prev | Next Part: 15896214 *Qty: 3 Nut Call
Location: 12 Prev | Next Part: 107576 *Qty: 1 Thermistor $118.39
Location: 13 Prev | Next Part: 144485 *Qty: 1 Gasket $24.67
Location: 14 Prev | Next Part: 134924 *Qty: 1 Filter $276.03
Location: 15 Prev | Next Part: 134974 *Qty: 1 Tube Call
Location: 16 Prev | Next Part: 10264660 *Qty: 1 Gasket $5.16
Location: 17 Prev | Next Part: 122319 *Qty: 1 Union $166.89
Location: 18 Prev | Next Part: 10265060 *Qty: 1 Gasket $0.90
Location: 19 Prev | Next Part: 122318 *Qty: 1 Plug $59.18
Location: 20 Prev | Next Part: 121967 *Qty: 1 Union Call
Location: 21 Prev | Next Part: 10265060 *Qty: 1 Gasket $0.90
Location: 22 Prev | Next Part: 144485 *Qty: 1 Gasket $24.67
Location: 23 Prev | Next Part: 136116 *Qty: 1 Union $25.76
Location: 24 Prev | Next Part: 144313 *Qty: 1 Tube -Valid for USA $586.58
Location: 24 Prev | Next Part: 136833 *Qty: 1 Tube -Not for USA Call
Location: 25 Prev | Next Part: 10450690 *Qty: 2 Bracket $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 2 Washer $0.90
Location: 27 Prev | Next Part: 15896214 *Qty: 2 Nut Call
Location: 28 Prev | Next Part: 136832 *Qty: 1 Tube Call
Location: 29 Prev | Next Part: 134972 *Qty: 1 Tube -Not for USA Call
Location: 29 Prev | Next Part: 144311 *Qty: 1 Tube -Valid for USA $377.07
Location: 30 Prev | Next Part: 136864 *Qty: 1 Valve body -Not as spare part now -See parts: pos. 34-35-36-37-38 Call
Location: 31 Prev | Next Part: 136870 *Qty: 2 Union $233.36
Location: 32 Prev | Next Part: 136869 *Qty: 1 Union $66.62
Location: 33 Prev | Next Part: 10303360 *Qty: 3 Gasket $0.90
Location: 34 Prev | Next Part: 136865 *Qty: 1 Valve body Call
Location: 35 Prev | Next Part: 136866 *Qty: 1 Valve $83.53
Location: 36 Prev | Next Part: 136867 *Qty: 1 Spring $15.32
Location: 37 Prev | Next Part: 144485 *Qty: 1 Gasket $24.67
Location: 38 Prev | Next Part: 136868 *Qty: 1 Plug $64.19
Location: 39 Prev | Next Part: 103550 *Qty: 3 Spacer $2.16
Location: 40 Prev | Next Part: 136830 *Qty: 1 Tube $811.93
Location: 41 Prev | Next Part: 130622 *Qty: 1 Oil filter Call
Location: 42 Prev | Next Part: 121246 *Qty: 1 Union $111.98
Location: 43 Prev | Next Part: 135940 *Qty: 1 Sender unit $177.31
Location: 44 Prev | Next Part: 10259960 *Qty: 1 Gasket $0.90
Location: 45 Prev | Next Part: 109889 *Qty: 2 Union Call
Location: 46 Prev | Next Part: 10280060 *Qty: 2 Gasket $0.90
Location: 47 Prev | Next Part: 10269750 *Qty: 1 Plug $1.75
Location: 48 Prev | Next Part: 134187 *Qty: 1 Filter base $364.37
Location: 49 Prev | Next Part: 134286 *Qty: 1 Gasket -Valid till depletion Superseded
Location: 49 Prev | Next Part: 144250 *Qty: 1 Gasket -Valid after depletion of 134286 $2.69
Location: 50 Prev | Next Part: 10257060 *Qty: 2 Gasket $0.90
Location: 51 Prev | Next Part: 120780 *Qty: 2 Union $18.26
Location: 52 Prev | Next Part: 136853 *Qty: 1 Tube Call
Location: 53 Prev | Next Part: 144312 *Qty: 1 Tube -Valid for USA $460.92
Location: 53 Prev | Next Part: 136831 *Qty: 1 Tube -Not for USA Call
Location: 54 Prev | Next Part: 138478 *Qty: 1 Clamp $5.68
Location: 55 Prev | Next Part: 127494 *Qty: 1 Washer $0.90
Location: 56 Prev | Next Part: 15896214 *Qty: 1 Nut Call
Location: 57 Prev | Next Part: 102741 *Qty: 8 Nut $0.90
Location: 58 Prev | Next Part: 12643724 *Qty: 8 Washer Superseded
Location: 59 Prev | Next Part: 102947 *Qty: 4 Plug $15.94
Location: 60 Prev | Next Part: 103549 *Qty: 3 Cable guide $1.37
Location: 61 Prev | Next Part: 10444521 *Qty: 1 Screw $0.90
Location: 62 Prev | Next Part: 10615279 *Qty: 2 Washer Call
Location: 63 Prev | Next Part: 10721911 *Qty: 1 Nut $0.90
Location: 64 Prev | Next Part: 140399 *Qty: 1 Clamp $2.51

* Quantity shown indicates the number of pieces used in the diagram.
