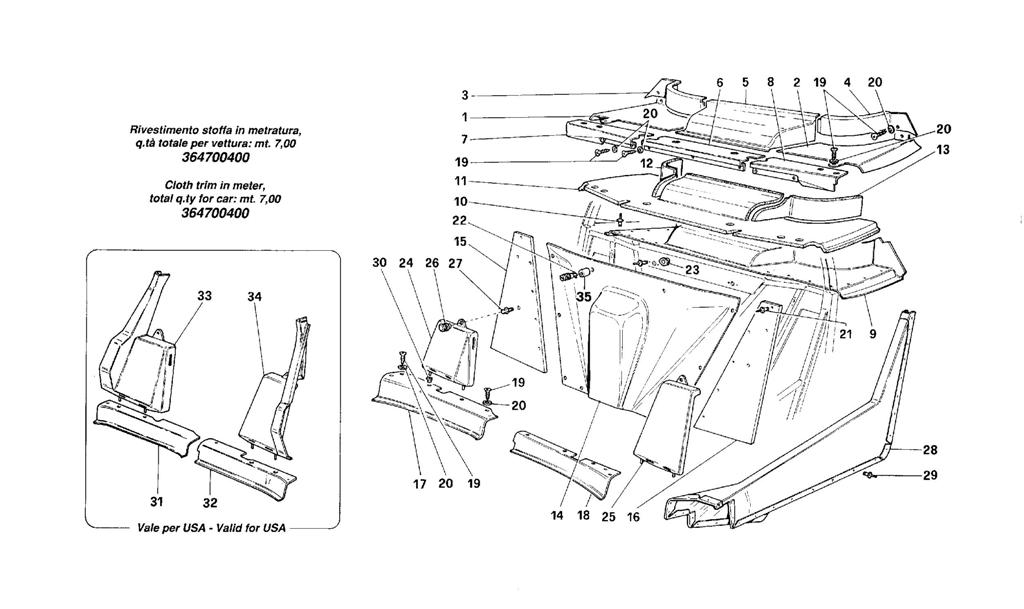

INTERNAL ELEMENTS BODY -LOWER AND CENTRAL ZONE-

Go to Split View

INTERNAL ELEMENTS BODY -LOWER AND CENTRAL ZONE-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62758000 *Qty: 1 R.H. frame work covering -Valid for USA $199.00
Location: 1 Prev | Next Part: 62476400 *Qty: 1 R.H. frame work covering -Not for USA Unavailable
Location: 2 Prev | Next Part: 62758100 *Qty: 1 L.H. frame work covering -Valid for USA $123.77
Location: 2 Prev | Next Part: 62503400 *Qty: 2 R.H. and L.H. covering $53.03
Location: 2 Prev | Next Part: 62476500 *Qty: 1 L.H. frame work covering -Not for USA Unavailable
Location: 3 Prev | Next Part: 62476800 *Qty: 1 R.H. frame work covering $286.49
Location: 4 Prev | Next Part: 62504100 *Qty: 2 R.H. and L.H. covering $246.21
Location: 4 Prev | Next Part: 62476900 *Qty: 1 L.H. frame work covering $286.49
Location: 5 Prev | Next Part: 62503300 *Qty: 1 Covering $122.90
Location: 5 Prev | Next Part: 62476200 *Qty: 1 Window plane covering Unavailable
Location: 6 Prev | Next Part: 62503700 *Qty: 1 Covering $54.72
Location: 6 Prev | Next Part: 62479600 *Qty: 1 Front frame work covering Unavailable
Location: 7 Prev | Next Part: 62479900 *Qty: 1 R.H. front frame work covering -Not for USA Unavailable
Location: 7 Prev | Next Part: 62748100 *Qty: 1 R.H. front frame work covering -Valid for USA $91.82
Location: 8 Prev | Next Part: 62748200 *Qty: 1 R.H. and L.H. covering -Valid for USA Unavailable
Location: 8 Prev | Next Part: 62748400 *Qty: 1 L.H. front frame work covering -Valid for USA $93.95
Location: 8 Prev | Next Part: 62503800 *Qty: 2 R.H. and L.H. covering -Not for USA $436.14
Location: 8 Prev | Next Part: 62480000 *Qty: 1 L.H. front frame work covering -Not for USA Unavailable
Location: 9 Prev | Next Part: 62419100 *Qty: 1 Frame work $1,034.29
Location: 10 Prev | Next Part: 61755900 *Qty: 45 Rivet Unavailable
Location: 11 Prev | Next Part: 62488900 *Qty: 1 Central insulation $259.34
Location: 12 Prev | Next Part: 62489000 *Qty: 1 R.H. insulation $122.91
Location: 13 Prev | Next Part: 62489100 *Qty: 1 L.H. insulation $122.91
Location: 14 Prev | Next Part: 62573600 *Qty: 1 Central shield interior - engine covering (with fixing pins) Unavailable
Location: 14 Prev | Next Part: 62539200 *Qty: 1 Covering $642.70
Location: 15 Prev | Next Part: 62418900 *Qty: 1 R.H. shield (without covering) $2,000.08
Location: 15 Prev | Next Part: 62539900 *Qty: 1 Covering $114.36
Location: 16 Prev | Next Part: 62419000 *Qty: 1 L.H. shield (without covering) $2,311.01
Location: 16 Prev | Next Part: 62540000 *Qty: 1 Covering $46.44
Location: 17 Prev | Next Part: 62552900 *Qty: 1 R.H. lower frame work covering -Not for USA $993.85
Location: 17 Prev | Next Part: 62539700 *Qty: 1 Covering -Not for USA- $29.79
Location: 18 Prev | Next Part: 62553000 *Qty: 1 L.H. lower frame work covering -Not for USA $993.85
Location: 18 Prev | Next Part: 62539800 *Qty: 1 Covering -Not for USA- $29.79
Location: 19 Prev | Next Part: 15908506 *Qty: 6 Screw Unavailable
Location: 20 Prev | Next Part: 12611607 *Qty: 6 Washer $4.03
Location: 21 Prev | Next Part: 62498300 *Qty: 22 R.H. and L.H. rivet Unavailable
Location: 22 Prev | Next Part: 62547100 *Qty: 0 Pin l. 24 $117.33
Location: 22 Prev | Next Part: 61767700 *Qty: 0 Pin l.15 $65.38
Location: 22 Prev | Next Part: 62547000 *Qty: 0 Pin l. 20 Unavailable
Location: 23 Prev | Next Part: 61411200 *Qty: 10 Clip $26.61
Location: 24 Prev | Next Part: 62553200 *Qty: 1 R.H. complete control unit cover -Not for USA Unavailable
Location: 24 Prev | Next Part: 62539500 *Qty: 1 Covering -Not for USA- $32.83
Location: 25 Prev | Next Part: 62553300 *Qty: 1 L.H. complete control unit cover -Not for USA Unavailable
Location: 25 Prev | Next Part: 62539600 *Qty: 1 Covering -Not for USA- $51.27
Location: 26 Prev | Next Part: 60727200 *Qty: 2 Button Superseded
Location: 27 Prev | Next Part: 60084407 *Qty: 2 Pin button $7.02
Location: 28 Prev | Next Part: 62419400 *Qty: 1 R.H. side panel $5,976.60
Location: 28 Prev | Next Part: 62419500 *Qty: 1 L.H. side panel $5,850.20
Location: 29 Prev | Next Part: 62498300 *Qty: 24 Rivet Unavailable
Location: 30 Prev | Next Part: 62569300 *Qty: 4 Bushing $1.39
Location: 31 Prev | Next Part: 62747300 *Qty: 1 R.H. lower frame work covering -Valid for USA Unavailable
Location: 31 Prev | Next Part: 62747500 *Qty: 1 Covering -Valid for USA- $22.02
Location: 32 Prev | Next Part: 62747400 *Qty: 1 L.H. lower frame work covering -Valid for USA $697.52
Location: 32 Prev | Next Part: 62747600 *Qty: 1 Covering -Valid for USA- $22.02
Location: 33 Prev | Next Part: 62746900 *Qty: 1 R.H. complete control unit cover -Valid for USA $857.19
Location: 33 Prev | Next Part: 62747100 *Qty: 1 Covering -Valid for USA- $31.84
Location: 34 Prev | Next Part: 62747000 *Qty: 1 L.H. complete control unit cover -Valid for USA $876.14
Location: 34 Prev | Next Part: 62747200 *Qty: 1 Covering -Valid for USA- $31.84
Location: 35 Prev | Next Part: 62471400 *Qty: 10 Bushing Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
