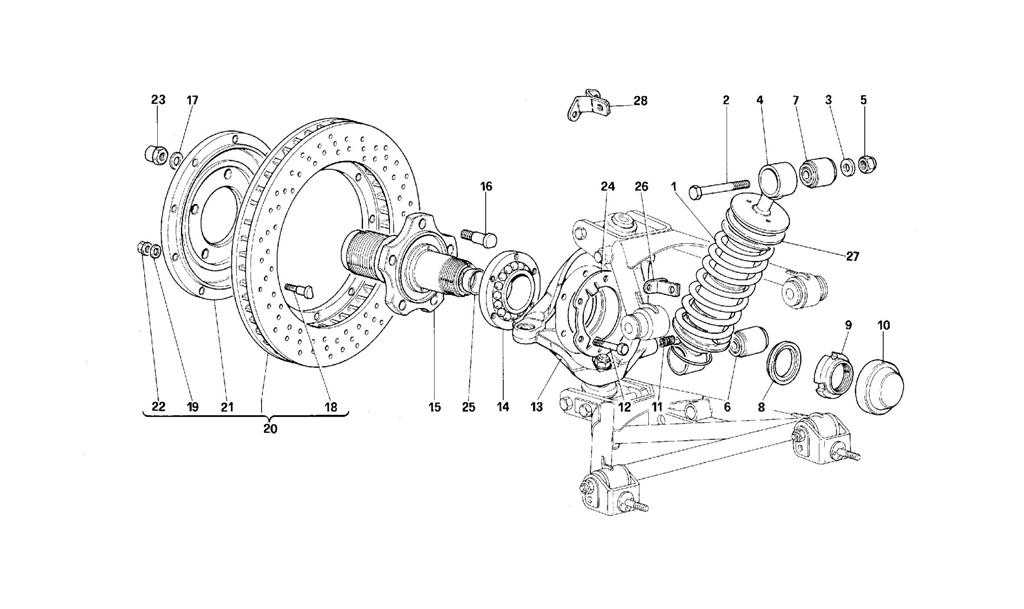

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 136227 2 Spring Unavailable
1 136814 2 Spring -For cars with lifting system $207.04
2 133585 2 Screw $82.80
3 14496821 2 Washer Unavailable
4 136825 2 Shock abs. -For cars with lifting system $1,029.98
4 134227 2 Shock abs. Unavailable
5 150238 2 Nut Unavailable
6 100809 2 Estendblock $31.47
7 125926 2 Estendblock $207.69
8 112800 2 Washer $18.25
9 129346 2 Ring nut $55.00
10 112803 2 Cap $81.08
11 13524670 4 Heli-coil Unavailable
12 14238731 12 Screw Unavailable
13 134101 1 Right stub axle $3,877.53
13 134102 1 Left stub axle $2,015.74
14 112799 2 Bearing $2,106.88
15 133367 1 Front wheel hub $2,162.02
15 133368 1 Front wheel hub $2,162.01
16 128879 10 Screw $426.28
17 101445 10 Washer Unavailable
18 139720 20 Screw $35.93
19 139721 20 Washer $8.61
20 70000602 2 Brake disc + flange Unavailable
21 133302 2 Flange $600.54
22 139951 20 Nut $1.05
23 128878 10 Nut $106.96
24 139904 2 Washer $91.33
25 14329201 2 Cap $11.71
26 135768 1 Bracket -Not for USA $116.24
26 135769 1 Bracket -Not for USA $116.24
27 138754 2 Spacer -Not for cars with lifting system $276.06
27 143417 2 Spacer -Valid for USA and for cars with lifting system $158.73
28 137732 1 Bracket -Valid for USA $17.23
28 137735 1 Bracket -Valid for USA $17.23

* Quantity shown indicates the number of pieces used in the diagram.
