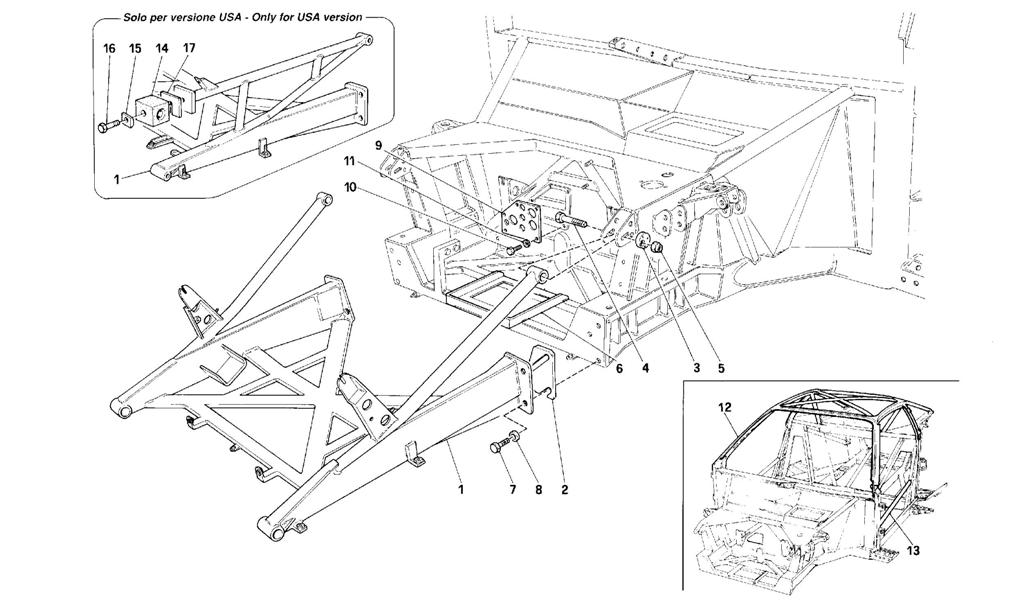

FRAME - FRONT PART

Go to Split View

FRAME - FRONT PART

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 62384400 *Qty: 0 Front flat floor and lower dashpanel shield complete Call
Location: 1 Prev | Next Part: 136999 *Qty: 1 Front frame assy -Not for USA $3,156.41
Location: 1 Prev | Next Part: 144263 *Qty: 1 Front frame assy -Valid for USA $14,804.79
Location: 2 Prev | Next Part: 62481100 *Qty: 2 Spacer $12.37
Location: 2 Prev | Next Part: 62481200 *Qty: 2 Spacer (Possible mounting) $88.89
Location: 2 Prev | Next Part: 62481300 *Qty: 2 Spacer (Possible mounting) $16.91
Location: 3 Prev | Next Part: 62903800 *Qty: 2 Adjustment eccentric Call
Location: 4 Prev | Next Part: 11343721 *Qty: 2 Screw $0.90
Location: 5 Prev | Next Part: 16104121 *Qty: 2 Nut Superseded
Location: 6 Prev | Next Part: 132920 *Qty: 1 Support $316.05
Location: 7 Prev | Next Part: 15970721 *Qty: 6 Screw $0.90
Location: 8 Prev | Next Part: 10615779 *Qty: 6 Washer $0.90
Location: 9 Prev | Next Part: 62385000 *Qty: 1 Plate $567.02
Location: 10 Prev | Next Part: 13272272 *Qty: 5 Screw $0.90
Location: 11 Prev | Next Part: 10615276 *Qty: 5 Washer Call
Location: 12 Prev | Next Part: 62405200 *Qty: 1 Framework -Not for USA $14,659.62
Location: 12 Prev | Next Part: 62730000 *Qty: 1 Framework -Valid for USA $14,628.83
Location: 13 Prev | Next Part: 62402800 *Qty: 1 R.H. reinforcement assy $575.70
Location: 13 Prev | Next Part: 62402900 *Qty: 1 L.H. reinforcement assy $575.70
Location: 14 Prev | Next Part: 62903400 *Qty: 2 Plug -Valid for USA- $88.97
Location: 15 Prev | Next Part: 62903500 *Qty: 2 Plate -Valid for USA- $3.81
Location: 16 Prev | Next Part: 40294308 *Qty: 2 Screw $4.52
Location: 17 Prev | Next Part: 62903600 *Qty: 4 Spacer (Possible mounting) -Valid for USA $0.99
Location: 17 Prev | Next Part: 62903700 *Qty: 4 Spacer (Possible mounting)-Valid for USA $1.07

* Quantity shown indicates the number of pieces used in the diagram.
