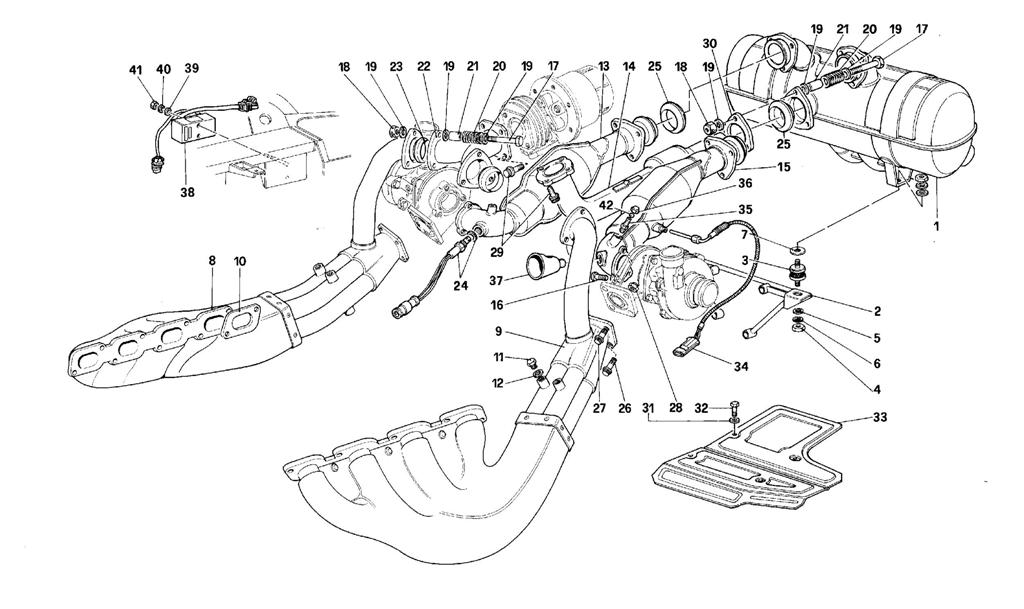

EXHAUST SYSTEM -VALID FOR CARS WITH CATALYST-

chevron-left
chevron-right
Go to Split View view-grid

EXHAUST SYSTEM -VALID FOR CARS WITH CATALYST-

Location Part # Quantity* Description Price Add To Cart
1 142527 1 Exhaust silencer $9,852.79
2 123715 1 Mounting for silencer $340.90
3 118223 2 Insulating mounting $34.94
4 16100821 4 Nut Unavailable
5 12646724 4 Washer $0.90
6 127496 4 Washer $0.90
7 146700 2 Gasket $1.40
8 142576 1 Right exhaust manifold $7,101.12
9 142575 1 Left exhaust manifold $5,781.09
10 138076 8 Gasket $14.64
11 110860 10 Plug $19.77
12 10298460 10 Gasket $0.90
13 144225 1 R.H. paint catalys -Valid for USA $3,665.01
13 142524 1 R.H. paint catalys -Not for USA Unavailable
14 143985 1 Outlet pipe from wastegate -Valid for USA Unavailable
14 142526 1 Outlet pipe from wastegate -Not for USA Unavailable
15 144226 1 L.H. paint catalys -Valid for USA $4,871.92
15 142525 1 L.H. paint catalys -Not for USA Unavailable
16 122461 6 Screw $57.14
17 128009 15 Screw $26.41
18 118251 15 Nut $28.91
19 128010 45 Washer $3.92
20 111743 15 Spring $16.46
21 114749 15 Spacer $5.16
22 122561 1 Pipe from manifolds to W.G. $1,432.90
23 154979 2 Gasket $19.47
24 146533 2 Sensor Unavailable
25 154984 3 Gasket $25.96
26 123003 4 Screw $111.14
27 123002 4 Screw $41.09
28 118251 8 Nut $28.91
29 122461 4 Screw $57.14
30 123066 1 Bride $48.70
31 12637821 4 Washer $3.49
32 10977521 4 Screw $0.90
33 144412 1 Shield $553.06
34 142847 2 Thermocouple -Valid for USA $243.58
34 144270 2 Thermocouple -Not for USA Unavailable
35 144240 2 Union $51.74
36 150595 2 Cap nut $1.16
37 148267 2 Protection bowl -Valid for USA $638.41
38 142581 2 Catalyst electric board $804.55
39 14496301 4 Washer $1.91
40 10615279 4 Washer Unavailable
41 62790300 4 Nut $0.90
42 125858 2 Ball Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
