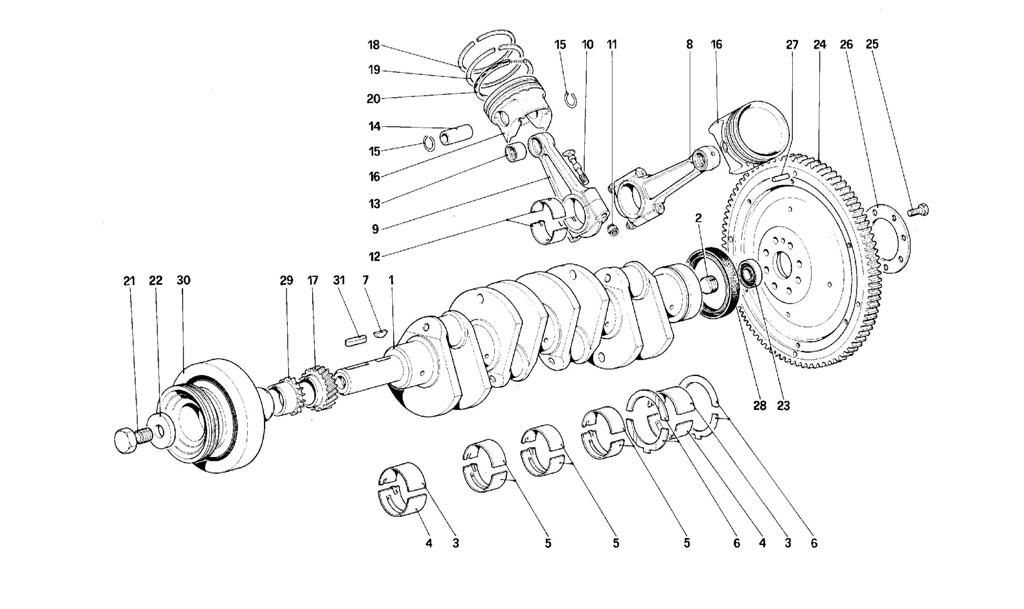

DRIVING SHAFT - CONNECTING RODS AND PISTONS - MOTOR FLYWHEEL

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS - MOTOR FLYWHEEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 132357 *Qty: 1 Set of pistons rings $256.12
Location: 1 Prev | Next Part: 133144 *Qty: 1 Crankshaft $12,293.13
Location: 2 Prev | Next Part: 10268450 *Qty: 1 PlugHalf, bearing, front and rear $8.70
Location: 3 Prev | Next Part: 100118 *Qty: 2 Upper half bearing $48.06
Location: 3 Prev | Next Part: 100119 *Qty: 0 1st undersize 0,254 mm. on ? $40.34
Location: 3 Prev | Next Part: 100120 *Qty: 0 2nd undersize 0,508 mm on ? $45.97
Location: 4 Prev | Next Part: 100122 *Qty: 2 Lower bearing $41.38
Location: 4 Prev | Next Part: 100123 *Qty: 0 1st undersize 0,254 mm. on ? $120.82
Location: 4 Prev | Next Part: 100124 *Qty: 0 2nd undersize 0,508 mm on ?Half bearing, central and intermediate $43.97
Location: 5 Prev | Next Part: 104023 *Qty: 6 Half bearing, upper and lower Call
Location: 5 Prev | Next Part: 153214 *Qty: 0 1st undersize 0,254 mm. on ? $640.85
Location: 5 Prev | Next Part: 104025 *Qty: 0 2nd undersize 0,508 mm on ?Shim $39.86
Location: 6 Prev | Next Part: 113984 *Qty: 0 1st oversize 0,127 mm. $14.72
Location: 6 Prev | Next Part: 100146 *Qty: 2 Shim for rear support $31.97
Location: 6 Prev | Next Part: 100147 *Qty: 0 2nd oversize 0,25 mm. $15.56
Location: 7 Prev | Next Part: 10206020 *Qty: 1 Tongue $1.73
Location: 8 Prev | Next Part: 122064 *Qty: 8 Connecting rod, compl. $1,111.94
Location: 9 Prev | Next Part: 121976 *Qty: 8 Connecting rod and cap -With assembly 122064 Call
Location: 10 Prev | Next Part: 100156 *Qty: 16 Screw securing con. rod $18.98
Location: 11 Prev | Next Part: 104011 *Qty: 16 Nut for con. rod screw $11.66
Location: 12 Prev | Next Part: 106183 *Qty: 16 Con. rod half bearing $21.10
Location: 12 Prev | Next Part: 100151 *Qty: 0 1st undersize 0,254 mm. on ? $70.43
Location: 12 Prev | Next Part: 100152 *Qty: 0 2nd undersize 0,508 mm on ? $99.66
Location: 13 Prev | Next Part: 121974 *Qty: 8 Bush for gudgeon pin $24.76
Location: 14 Prev | Next Part: 121975 *Qty: 8 Gudgeon pin $13.08
Location: 15 Prev | Next Part: 100174 *Qty: 16 Ring for gudgeon pin $3.92
Location: 16 Prev | Next Part: 133023 *Qty: 8 Piston with piston ring $1,644.18
Location: 17 Prev | Next Part: 121954 *Qty: 1 Driving sprocket for timing sys. $618.92
Location: 18 Prev | Next Part: 134548 *Qty: 8 AC conical seal ring (1st groove) -with complete set 132357 Call
Location: 19 Prev | Next Part: 134548 *Qty: 8 AC conical seal ring (2nd grooved) -with complete set. 132357 Call
Location: 20 Prev | Next Part: 119851 *Qty: 8 ROF scraper ring with spring (3td groove) -with complete set 132357 Call
Location: 21 Prev | Next Part: 138793 *Qty: 1 Screw $77.00
Location: 22 Prev | Next Part: 102775 *Qty: 1 Washer $33.72
Location: 23 Prev | Next Part: 103877 *Qty: 1 Bearing $29.17
Location: 24 Prev | Next Part: 132350 *Qty: 1 Engine flywheel $2,884.43
Location: 25 Prev | Next Part: 103875 *Qty: 8 Screw Superseded
Location: 26 Prev | Next Part: 103876 *Qty: 1 Washer $10.96
Location: 27 Prev | Next Part: 123317 *Qty: 4 Dowel $14.75
Location: 28 Prev | Next Part: 200323 *Qty: 1 Sealing ring $32.99
Location: 29 Prev | Next Part: 132933 *Qty: 1 Driving gear for scavenage pump $187.45
Location: 30 Prev | Next Part: 133308 *Qty: 1 Torsion damper with pulley $2,179.42
Location: 31 Prev | Next Part: 14723320 *Qty: 1 Tongue $0.90

* Quantity shown indicates the number of pieces used in the diagram.
