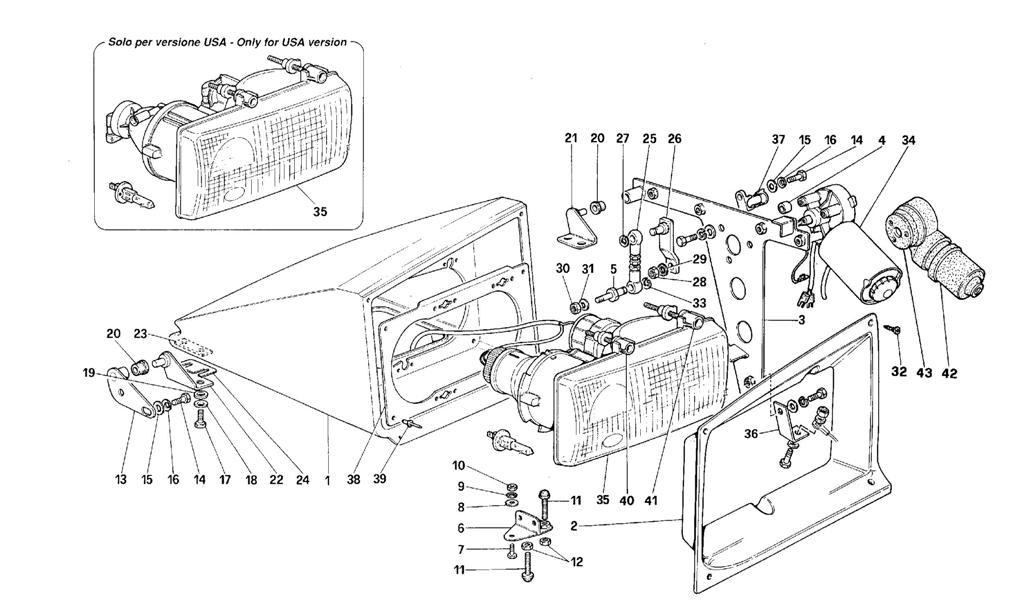

DEVICE FOR LIFTING THE HEAD LAMPS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62387510 *Qty: 1 Housing R.H. light $2,433.65
Location: 1 Prev | Next Part: 62387610 *Qty: 1 Housing L.H. light Unavailable
Location: 2 Prev | Next Part: 62458500 *Qty: 1 R.H. housing grille $360.54
Location: 2 Prev | Next Part: 62458600 *Qty: 1 L.H. housing grille $360.51
Location: 3 Prev | Next Part: 62452400 *Qty: 1 R.H. support lifting motor $136.95
Location: 3 Prev | Next Part: 62452500 *Qty: 1 L.H. support lifting motor $136.95
Location: 4 Prev | Next Part: 62453800 *Qty: 6 Spacer $29.55
Location: 5 Prev | Next Part: 62454000 *Qty: 2 Pin $7.78
Location: 6 Prev | Next Part: 62454100 *Qty: 2 Support $70.81
Location: 7 Prev | Next Part: 10444521 *Qty: 6 Screw $0.90
Location: 8 Prev | Next Part: 12642801 *Qty: 6 Washer $0.90
Location: 9 Prev | Next Part: 10615279 *Qty: 6 Washer Unavailable
Location: 10 Prev | Next Part: 10721911 *Qty: 6 Screw $0.90
Location: 11 Prev | Next Part: 50087709 *Qty: 4 Screw $12.93
Location: 12 Prev | Next Part: 15896214 *Qty: 4 Nut Unavailable
Location: 13 Prev | Next Part: 62454200 *Qty: 1 R.H. fixed hinge $122.56
Location: 13 Prev | Next Part: 62454300 *Qty: 1 L.H. fixed hinge $122.56
Location: 14 Prev | Next Part: 10902124 *Qty: 12 Screw $0.90
Location: 15 Prev | Next Part: 12643721 *Qty: 12 Washer $1.07
Location: 16 Prev | Next Part: 11197770 *Qty: 12 Washer Superseded
Location: 17 Prev | Next Part: 10902124 *Qty: 8 Screw $0.90
Location: 18 Prev | Next Part: 11197770 *Qty: 8 Washer Superseded
Location: 19 Prev | Next Part: 12643721 *Qty: 8 Washer $1.07
Location: 20 Prev | Next Part: 62482000 *Qty: 4 Bush $35.85
Location: 21 Prev | Next Part: 62454600 *Qty: 1 Mobile hinge R.H. light Unavailable
Location: 21 Prev | Next Part: 62454700 *Qty: 1 Mobile hinge L.H. light $52.44
Location: 22 Prev | Next Part: 62454800 *Qty: 1 Mobile hinge R.H. light $131.26
Location: 22 Prev | Next Part: 62454900 *Qty: 1 Mobile hinge L.H. light Unavailable
Location: 23 Prev | Next Part: 62455300 *Qty: 4 Plate $9.89
Location: 24 Prev | Next Part: 62455400 *Qty: 4 Shim mm. 1 $0.90
Location: 24 Prev | Next Part: 62455500 *Qty: 4 Shim mm. 1.5 (Possible mounting) $0.90
Location: 24 Prev | Next Part: 62455600 *Qty: 0 CONNECTING ROD $24.23
Location: 25 Prev | Next Part: 62455600 *Qty: 2 Conn. rod -Not as spare parts- -With assembly 62455600 $24.23
Location: 26 Prev | Next Part: 62455600 *Qty: 2 Crank -Not as spare parts- -With assembly 62455600 $24.23
Location: 27 Prev | Next Part: 11087974 *Qty: 2 Snap ring $0.90
Location: 28 Prev | Next Part: 15896214 *Qty: 2 Nut Unavailable
Location: 29 Prev | Next Part: 12605379 *Qty: 2 Washer Unavailable
Location: 30 Prev | Next Part: 15896214 *Qty: 2 Nut Unavailable
Location: 31 Prev | Next Part: 11197770 *Qty: 2 Washer Superseded
Location: 32 Prev | Next Part: 15908478 *Qty: 8 Screw Unavailable
Location: 33 Prev | Next Part: 16160976 *Qty: 2 Snap ring $0.90
Location: 34 Prev | Next Part: 149134 *Qty: 1 R.H. lifting motor Unavailable
Location: 34 Prev | Next Part: 149133 *Qty: 1 L.H. lifting motor Unavailable
Location: 35 Prev | Next Part: 133080 *Qty: 1 R.H. head lamp with bulbs -Not for USA, F and GB $680.34
Location: 35 Prev | Next Part: 133081 *Qty: 1 L.H. head lamp with bulbs -Not for USA, F and GB $680.34
Location: 35 Prev | Next Part: 133082 *Qty: 1 R.H. head lamp with bulbs -Valid for USA Unavailable
Location: 35 Prev | Next Part: 133083 *Qty: 1 L.H. head lamp with bulbs -Valid for USA $720.89
Location: 35 Prev | Next Part: 133084 *Qty: 1 R.H. head lamp with bulbs -Valid for GB $684.40
Location: 35 Prev | Next Part: 133086 *Qty: 1 R.H. head lamp with bulbs -Valid for F $1,549.04
Location: 35 Prev | Next Part: 133087 *Qty: 1 L.H. head lamp with bulbs -Valid for F $499.08
Location: 36 Prev | Next Part: 62536700 *Qty: 1 R.H. lower bracket $3.04
Location: 36 Prev | Next Part: 62536800 *Qty: 1 L.H. lower bracket $3.04
Location: 37 Prev | Next Part: 129544 *Qty: 2 Clip $2.02
Location: 38 Prev | Next Part: 62550200 *Qty: 1 R.H. sheet $140.82
Location: 38 Prev | Next Part: 62550300 *Qty: 1 L.H. sheet $176.01
Location: 39 Prev | Next Part: 60174307 *Qty: 18 Rivet $0.90
Location: 40 Prev | Next Part: 148086 *Qty: 2 Pin $19.58
Location: 41 Prev | Next Part: 148088 *Qty: 4 Screw $21.68
Location: 42 Prev | Next Part: 60331402 *Qty: 2 Guard for light lifting motor $33.54
Location: 43 Prev | Next Part: 60331204 *Qty: 1 R.H. guard for light lifting motor $21.36
Location: 43 Prev | Next Part: 60331303 *Qty: 1 L.H. guard for light lifting motor $22.02

* Quantity shown indicates the number of pieces used in the diagram.
