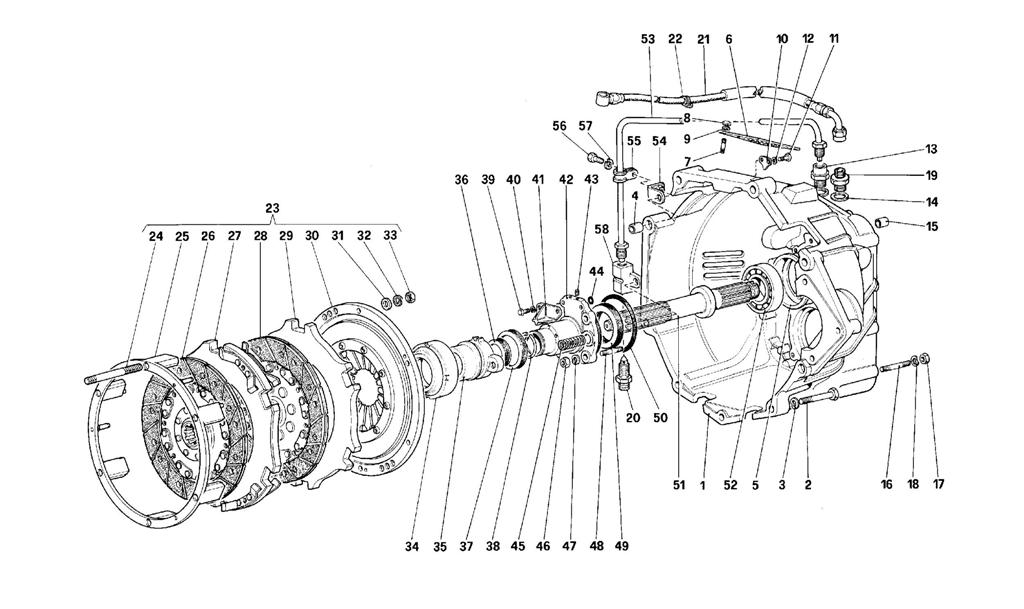

CLUTCH AND CONTROL

Location Part # Quantity* Description Price Add To Cart
- 125456 1 Clutch housing, compl. Unavailable
2 16044021 3 Screw Unavailable
3 12601379 3 Washer Superseded
4 125537 2 Dowel $6.23
5 121797 1 Bush for bearing Unavailable
6 121806 1 Inspection cover $43.18
7 11000824 2 Stud -Q.ty 4 for USA- $9.91
7 11000921 2 Stud bolt-Not for USA Unavailable
8 15896470 4 Nut Unavailable
9 12601174 4 Washer $0.90
10 114603 1 Timing ref. bracket Unavailable
11 10977624 2 Screw Unavailable
12 127493 2 Washer $0.90
13 148604 1 Fitting Unavailable
14 10257060 2 Gasket $0.90
15 123865 2 Dowel Unavailable
16 13543424 12 Stud Unavailable
17 16100821 12 Nut Unavailable
18 12601379 12 Washer Superseded
19 136568 1 Union $29.39
20 121699 1 Bleed screw $59.36
21 144259 1 Flexible hose $541.41
22 123478 1 Clamp $7.69
23 136807 1 Clutch ? 8 1/2 compl. $6,276.74
24 13544231 6 Stud $20.02
25 136813 1 Spacer (supplied only with unit 136807) Unavailable
26 136811 1 Clutch disc $876.94
27 136809 1 Ring (supplied only with unit 136807) Unavailable
28 136812 1 Clutch disc $1,347.90
29 136808 1 Pad (supplied only with unit 136807) Unavailable
30 136810 1 Cover (supplied only with unit 136807) Unavailable
31 10519624 6 Washer Unavailable
32 127496 6 Washer $0.90
33 16100821 6 Nut Unavailable
34 70000568 1 Thrust bearing $914.49
35 123359 1 Bush for bearing $406.00
36 139440 1 Sealing ring $72.00
37 139439 1 Sealing ring -Valid after depletion of 124674 $72.00
38 123110 1 Safety ring $21.11
39 10977521 2 Screw $0.90
40 127493 2 Washer $0.90
41 123696 1 Plate $2,242.83
42 123360 1 Sleeve for bush Unavailable
43 65928500 2 Plug $31.95
44 121813 2 Sealing ring $0.90
45 121717 2 Pre load spring $17.34
46 16100821 4 Nut Unavailable
47 127496 4 Washer $0.90
48 13516621 4 Stud Unavailable
49 138680 1 Sealing ring $50.02
50 121814 1 Sealing ring $15.51
51 123689 1 Clutch shaft $1,002.15
52 125499 1 Bearing (as option n. 137180) Unavailable
53 149576 1 Pipe $241.55
54 149577 1 Bracket $9.48
55 10441290 1 Bracket with Unavailable
56 10902011 1 Screw Unavailable
57 106850 1 Washer Superseded
58 139921 1 Block Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
