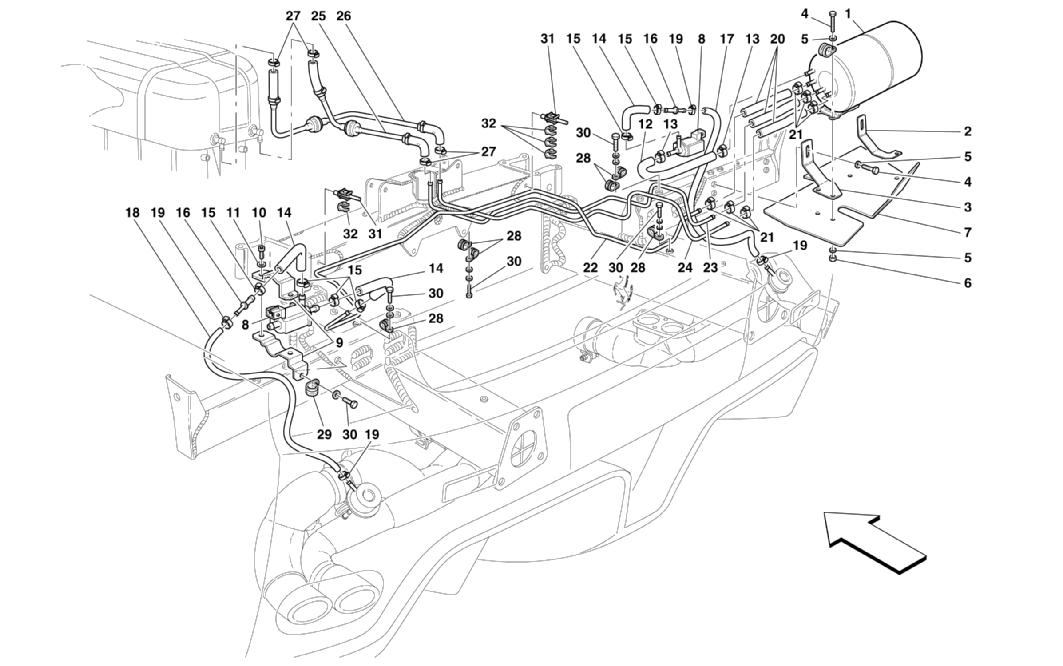

PNEUMATICS ACTUATOR SYSTEM

Go to Split View

PNEUMATICS ACTUATOR SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 191385 *Qty: 1 DEPRESSION ACCUMULATION TANK $339.25
Location: 2 Prev | Next Part: 191380 *Qty: 1 R.H. SUPPORT BRACKET $70.62
Location: 3 Prev | Next Part: 191378 *Qty: 1 L.H. SUPPORT BRACKET $70.62
Location: 4 Prev | Next Part: 10902424 *Qty: 8 SCREW $0.90
Location: 5 Prev | Next Part: 12644424 *Qty: 12 WASHER $0.90
Location: 6 Prev | Next Part: 14048115 *Qty: 4 NUT Superseded
Location: 7 Prev | Next Part: 195911 *Qty: 1 SHIELD FOR TANK PROTECTION $151.00
Location: 8 Prev | Next Part: 178309 *Qty: 2 SOLENOID VALVE $79.84
Location: 9 Prev | Next Part: 178515 *Qty: 2 SOLENOID VALVE SUPPORT $4.58
Location: 10 Prev | Next Part: 14302924 *Qty: 4 SCREW $0.90
Location: 11 Prev | Next Part: 127492 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 194260 *Qty: 1 PIPE FROM SOLENOID VALVE TO TANK $16.89
Location: 13 Prev | Next Part: 13432070 *Qty: 2 COLLAR FOR SLEEVE $0.90
Location: 14 Prev | Next Part: 148464 *Qty: 3 SLEEVE $7.17
Location: 15 Prev | Next Part: 13432070 *Qty: 6 COLLAR FOR SLEEVE $0.90
Location: 16 Prev | Next Part: 178369 *Qty: 2 UNION $5.27
Location: 17 Prev | Next Part: 8147122 *Qty: 1 R.H. PIPE FROM UNION TO VALVE Unavailable
Location: 17 Prev | Next Part: 147122 *Qty: 1 R.H. PIPE FROM UNION TO VALVE -Not as spare part -Replaced by 8147122 $35.73
Location: 18 Prev | Next Part: 8147127 *Qty: 1 L.H. PIPE FROM UNION TO VALVE Unavailable
Location: 18 Prev | Next Part: 147127 *Qty: 1 L.H. PIPE FROM UNION TO VALVE -Not as spare part -Replaced by 8147127 $37.68
Location: 19 Prev | Next Part: 171406 *Qty: 4 COLLAR FOR SLEEVE $0.90
Location: 20 Prev | Next Part: 194259 *Qty: 3 RUBBER HOSE $8.70
Location: 21 Prev | Next Part: 13432070 *Qty: 6 COLLAR FOR SLEEVE $0.90
Location: 22 Prev | Next Part: 193562 *Qty: 1 PIPE FROM TANK TO L.H. SOLENOID VALVE $299.17
Location: 23 Prev | Next Part: 193564 *Qty: 1 PIPE FROM TANK TO R.H. DEPRESSION PIPE $352.59
Location: 24 Prev | Next Part: 193563 *Qty: 1 PIPE FROM TANK TO L.H. DEPRESSION PIPE Unavailable
Location: 25 Prev | Next Part: 186822 *Qty: 1 COMPLETE R.H. DEPRESSION PIPE $225.35
Location: 26 Prev | Next Part: 186823 *Qty: 1 COMPLETE L.H. DEPRESSION PIPE $254.77
Location: 27 Prev | Next Part: 13432070 *Qty: 4 COLLAR FOR SLEEVE $0.90
Location: 28 Prev | Next Part: 10441190 *Qty: 6 BRACKET WITH SHEATH $0.90
Location: 29 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 30 Prev | Next Part: 14305287 *Qty: 6 SCREW Unavailable
Location: 31 Prev | Next Part: 140162 *Qty: 2 ANCHORAGE FOR CLIP $0.90
Location: 32 Prev | Next Part: 140130 *Qty: 4 FLEXIBLE CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
