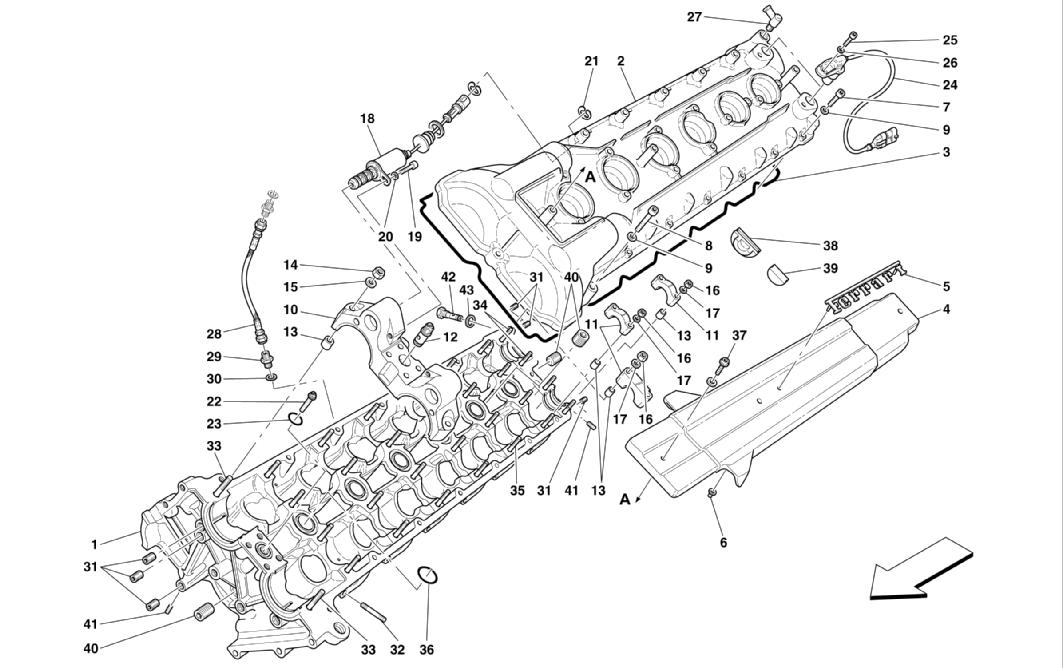

L.H. CYLINDER HEAD

Location Part # Quantity* Description Price Add To Cart
- 198021 1 COMPLETE L.H. CYLINDERS HEAD $9,309.26
1 186429 1 L.H. HEAD -Not as spare part -With the complete cylinders head 198021 Unavailable
2 181835 1 L.H. CYLINDERS HEAD COVER $5,440.48
3 195370 1 L.H. HEAD COVER GASKET $241.55
4 192456 1 CABLES SMALL COVER $2,874.66
5 61025000 1 FERRARI MARK $93.16
6 60324506 2 CLIP Superseded
7 157218 14 SCREW Unavailable
8 156830 2 SCREW Unavailable
9 11197771 16 WASHER Superseded
12 188142 1 PRESSURE CONTROL VALVE $138.02
13 102032 30 CENTERING DOWEL $5.32
14 16100814 2 NUT -Not as spare part -Replaced by 16100812 Unavailable
14 16100812 2 NUT Unavailable
15 11193874 2 WASHER $0.90
16 15896214 28 NUT Unavailable
17 11197771 28 WASHER Superseded
18 212422 2 VARIATOR CONTROL SOLENOID VALVE Superseded
19 14433124 2 SCREW Unavailable
20 11197771 2 WASHER Superseded
21 11087374 2 FLEXIBLE RING $3.37
22 180266 1 OIL FILTER Superseded
23 134233 1 GASKET $0.90
24 177673 2 PHASE SENSOR $438.46
25 14305224 2 SCREW Unavailable
26 11197771 2 WASHER Superseded
27 195510 1 THREADED UNION $8.79
28 187535 1 OIL HOSE FROM HEAD TO SUCTION MANIFOLD $293.31
29 182426 1 THREADED UNION $14.72
30 10261060 1 GASKET $0.90
31 194495 6 THREADED PLUG -Not as spare part now -Replaced by 14326001 Unavailable
31 14326001 6 THREADED PLUG Unavailable
32 13543524 12 STUD Unavailable
33 13543821 2 STUD Unavailable
34 11501021 2 STUD Unavailable
35 13541524 26 STUD Unavailable
36 148225 6 O.R. GASKET $0.90
37 65377400 3 SCREW Superseded
38 180109 1 COVER GASKET $70.73
39 180110 1 COVER GASKET $70.73
40 127635 9 THREADED PLUG $4.71
41 141563 2 THREADED PLUG $2.11
41 194493 2 THREADED PLUG -Not as spare part now -Replaced by 141563 Unavailable
42 180267 1 NONRETURN VALVE $39.67
43 10261060 1 GASKET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
