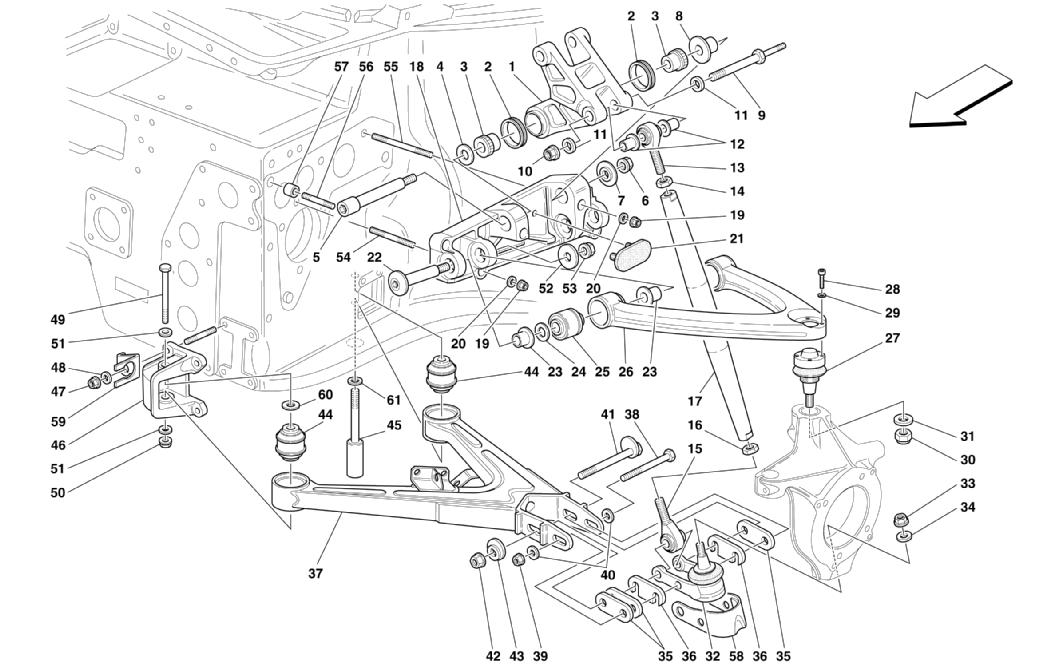

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183695 *Qty: 1 L.H. FRONT ROCKER $1,505.60
Location: 1 Prev | Next Part: 188392 *Qty: 1 R.H. FRONT ROCKER $1,505.60
Location: 2 Prev | Next Part: 150153 *Qty: 4 SEAL RING $1.61
Location: 3 Prev | Next Part: 150152 *Qty: 4 ROLLER BEARING $156.86
Location: 4 Prev | Next Part: 152022 *Qty: 2 SPACER $30.53
Location: 5 Prev | Next Part: 151983 *Qty: 2 FULCRUM PIN $313.70
Location: 6 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 7 Prev | Next Part: 152021 *Qty: 2 WASHER $11.80
Location: 8 Prev | Next Part: 151982 *Qty: 2 BUSHING $131.09
Location: 9 Prev | Next Part: 153322 *Qty: 2 PIN $82.12
Location: 10 Prev | Next Part: 132876 *Qty: 2 NUT $35.46
Location: 11 Prev | Next Part: 10732531 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 150082 *Qty: 4 BUSHING $457.74
Location: 13 Prev | Next Part: 149125 *Qty: 2 BALL JOINT $514.23
Location: 14 Prev | Next Part: 10717477 *Qty: 2 NUT $2.33
Location: 15 Prev | Next Part: 149126 *Qty: 2 BALL JOINT $514.23
Location: 16 Prev | Next Part: 149124 *Qty: 2 NUT $4.67
Location: 17 Prev | Next Part: 165660 *Qty: 2 SHOCK ABSORBER CONTROL ROD $417.37
Location: 18 Prev | Next Part: 151811 *Qty: 1 L.H. LEVER SUPPORT SUPPORT $4,611.37
Location: 18 Prev | Next Part: 151812 *Qty: 1 R.H. LEVER SUPPORT SUPPORT $881.78
Location: 19 Prev | Next Part: 177778 *Qty: 10 NUT $1.60
Location: 20 Prev | Next Part: 12638524 *Qty: 10 WASHER $0.90
Location: 21 Prev | Next Part: 152615 *Qty: 2 END OF STROKE PAD $8.45
Location: 22 Prev | Next Part: 152023 *Qty: 2 UPPER LEVER PIN $189.30
Location: 23 Prev | Next Part: 152020 *Qty: 8 BUSHING $335.20
Location: 24 Prev | Next Part: 152032 *Qty: 4 WASHER -Th. mm. 0,2 $7.17
Location: 24 Prev | Next Part: 152036 *Qty: 4 WASHER -Th. mm. 0,7 $6.93
Location: 24 Prev | Next Part: 152033 *Qty: 4 WASHER -Th. mm. 0,3 $7.17
Location: 24 Prev | Next Part: 152037 *Qty: 4 WASHER -Th. mm. 0,8 $6.93
Location: 24 Prev | Next Part: 152034 *Qty: 4 WASHER -Th. mm. 0,5 $7.17
Location: 24 Prev | Next Part: 152038 *Qty: 4 WASHER -Th. mm. 1,0 $6.93
Location: 24 Prev | Next Part: 152035 *Qty: 4 WASHER -Th. mm. 0,6 $6.93
Location: 25 Prev | Next Part: 163918 *Qty: 4 BALL JOINT $105.98
Location: 26 Prev | Next Part: 171114 *Qty: 1 L.H. UPPER LEVER $2,928.66
Location: 26 Prev | Next Part: 151290 *Qty: 1 R.H. UPPER LEVER $2,928.66
Location: 27 Prev | Next Part: 130202 *Qty: 2 BALL JOINT FOR UPPER LEVER $716.08
Location: 28 Prev | Next Part: 14305124 *Qty: 8 SCREW $0.90
Location: 29 Prev | Next Part: 10569279 *Qty: 8 WASHER $0.90
Location: 30 Prev | Next Part: 169193 *Qty: 2 NUT $1.67
Location: 31 Prev | Next Part: 150143 *Qty: 2 WASHER $21.71
Location: 32 Prev | Next Part: 146999 *Qty: 2 BALL JOINT FOR LOWER LEVER $334.44
Location: 33 Prev | Next Part: 149807 *Qty: 2 NUT $1.22
Location: 34 Prev | Next Part: 122237 *Qty: 2 WASHER $4.83
Location: 35 Prev | Next Part: 192576 *Qty: 6 PLATE -Th. 4mm $14.97
Location: 36 Prev | Next Part: 192579 *Qty: 0 PLATE -Th. 2mm -Possible fitting $15.38
Location: 36 Prev | Next Part: 192577 *Qty: 0 PLATE -Th. 1mm -Possible fitting $26.92
Location: 36 Prev | Next Part: 192580 *Qty: 0 PLATE -Th. 3mm -Possible fitting $15.38
Location: 36 Prev | Next Part: 192578 *Qty: 0 PLATE -Th. 1,5mm -Possible fitting $14.97
Location: 37 Prev | Next Part: 195299 *Qty: 1 R.H. LOWER LEVER $1,747.97
Location: 37 Prev | Next Part: 192516 *Qty: 1 L.H. LOWER LEVER $1,747.97
Location: 38 Prev | Next Part: 192585 *Qty: 2 SCREW $122.32
Location: 39 Prev | Next Part: 133216 *Qty: 2 NUT $8.65
Location: 40 Prev | Next Part: 166448 *Qty: 4 WASHER $13.46
Location: 41 Prev | Next Part: 192572 *Qty: 2 ECCENTRIC SCREW $45.68
Location: 42 Prev | Next Part: 132876 *Qty: 2 NUT $35.46
Location: 43 Prev | Next Part: 152818 *Qty: 2 ECCENTRIC WASHER $49.90
Location: 44 Prev | Next Part: 178929 *Qty: 4 BALL JOINT Superseded
Location: 45 Prev | Next Part: 189157 *Qty: 2 SPECIAL SCREW $59.06
Location: 46 Prev | Next Part: 189142 *Qty: 2 SUPPORT $500.00
Location: 47 Prev | Next Part: 177778 *Qty: 8 NUT $1.60
Location: 48 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 49 Prev | Next Part: 15971624 *Qty: 2 SCREW -Not as spare part -Replaced by 15971634 $0.90
Location: 49 Prev | Next Part: 15971634 *Qty: 2 SCREW Call
Location: 50 Prev | Next Part: 12574521 *Qty: 2 NUT $0.90
Location: 51 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 52 Prev | Next Part: 152031 *Qty: 4 WASHER $39.69
Location: 53 Prev | Next Part: 132876 *Qty: 4 NUT $35.46
Location: 54 Prev | Next Part: 12429524 *Qty: 2 STUD $1.83
Location: 55 Prev | Next Part: 13544334 *Qty: 2 STUD $2.71
Location: 56 Prev | Next Part: 13543734 *Qty: 4 STUD $1.49
Location: 57 Prev | Next Part: 150961 *Qty: 4 CENTERING DOWEL $37.17
Location: 58 Prev | Next Part: 195081 *Qty: 2 BALL JOINT PROTECTION $213.58
Location: 59 Prev | Next Part: 193444 *Qty: 1 ABS SENSOR FIXING L.H. BRACKET Call
Location: 59 Prev | Next Part: 193486 *Qty: 1 ABS SENSOR FIXING R.H. BRACKET Call
Location: 60 Prev | Next Part: 189161 *Qty: 0 SPACER -Th. 0,7 mm. Call
Location: 60 Prev | Next Part: 189158 *Qty: 0 SPACER -Th. 0,4 mm. Call
Location: 60 Prev | Next Part: 189155 *Qty: 0 SPACER -Th. 0,3 mm. Call
Location: 60 Prev | Next Part: 189159 *Qty: 0 SPACER -Th. 0,5 mm. Call
Location: 60 Prev | Next Part: 189160 *Qty: 0 SPACER -Th. 0,6 mm. Call
Location: 61 Prev | Next Part: 12541970 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
