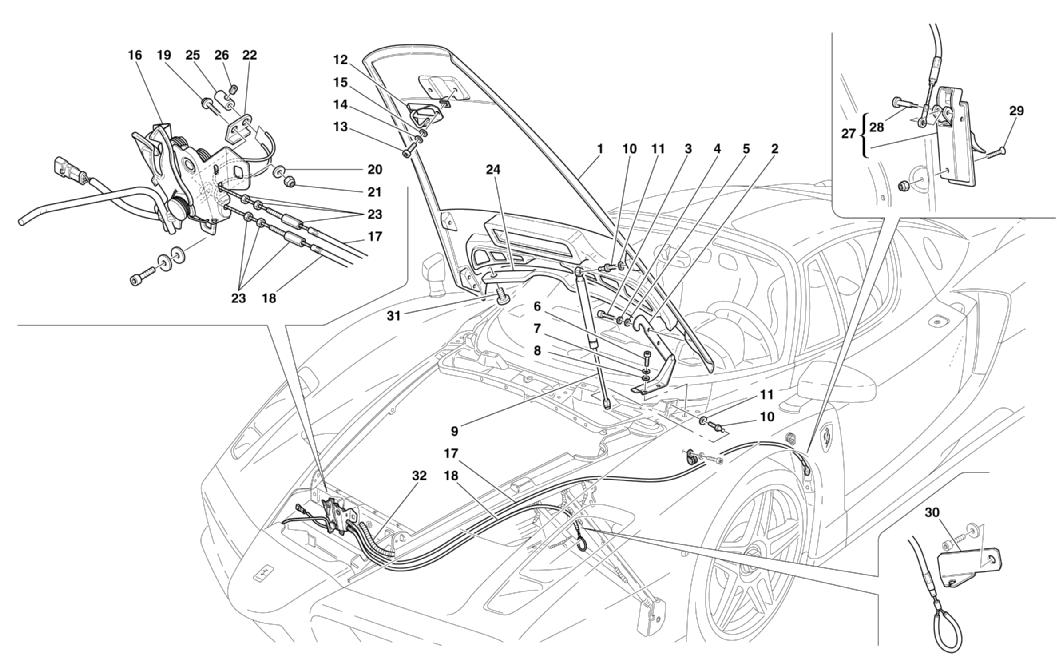

FRONT HOOD AND OPENING DEVICE

Go to Split View

FRONT HOOD AND OPENING DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66486600 *Qty: 1 SHEETED COMPLETE FRONT HOOD BONNET $14,405.74
Location: 2 Prev | Next Part: 66575600 *Qty: 1 COMPLETE R.H. HINGE $511.16
Location: 2 Prev | Next Part: 66575500 *Qty: 1 COMPLETE L.H. HINGE $511.16
Location: 3 Prev | Next Part: 14305787 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 12644477 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 12620477 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 14433124 *Qty: 4 SCREW $0.90
Location: 7 Prev | Next Part: 14498804 *Qty: 4 WASHER Superseded
Location: 8 Prev | Next Part: 12620474 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 67251300 *Qty: 2 GAS SPRING $34.02
Location: 10 Prev | Next Part: 67251200 *Qty: 4 PIN $2.62
Location: 11 Prev | Next Part: 12601377 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 66574400 *Qty: 1 HOOD CLOSING STRIKER $220.57
Location: 13 Prev | Next Part: 14305787 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 12644477 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 12620477 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 66575000 *Qty: 1 BONNET LOCK $265.00
Location: 17 Prev | Next Part: 66575200 *Qty: 1 CABLE FOR FRONT HOOD OPENING $33.53
Location: 18 Prev | Next Part: 67369100 *Qty: 1 HOOD SAFETY CABLE $17.98
Location: 19 Prev | Next Part: 65366700 *Qty: 1 SCREW $1.07
Location: 20 Prev | Next Part: 12637878 *Qty: 1 WASHER Call
Location: 21 Prev | Next Part: 62790300 *Qty: 1 NUT $0.90
Location: 22 Prev | Next Part: 67427000 *Qty: 1 BRACKET $37.89
Location: 23 Prev | Next Part: 67502400 *Qty: 2 COMPLETE REGULATOR $10.78
Location: 24 Prev | Next Part: 67596200 *Qty: 1 GASKET $98.17
Location: 25 Prev | Next Part: 60276607 *Qty: 1 CONNECTION $36.37
Location: 26 Prev | Next Part: 60276805 *Qty: 1 DOWEL $1.81
Location: 27 Prev | Next Part: 67016800 *Qty: 1 HANDLE FOR BONNET OPENING $2,252.81
Location: 28 Prev | Next Part: 62552200 *Qty: 1 PIN $17.72
Location: 29 Prev | Next Part: 13299477 *Qty: 1 SCREW $0.90
Location: 30 Prev | Next Part: 65506500 *Qty: 1 BRACKET FOR CABLE FIXING $5.09
Location: 31 Prev | Next Part: 14592587 *Qty: 6 FIXING BUTTON $0.90
Location: 32 Prev | Next Part: 67632600 *Qty: 1 CORRUGATED HOSE Call

* Quantity shown indicates the number of pieces used in the diagram.
