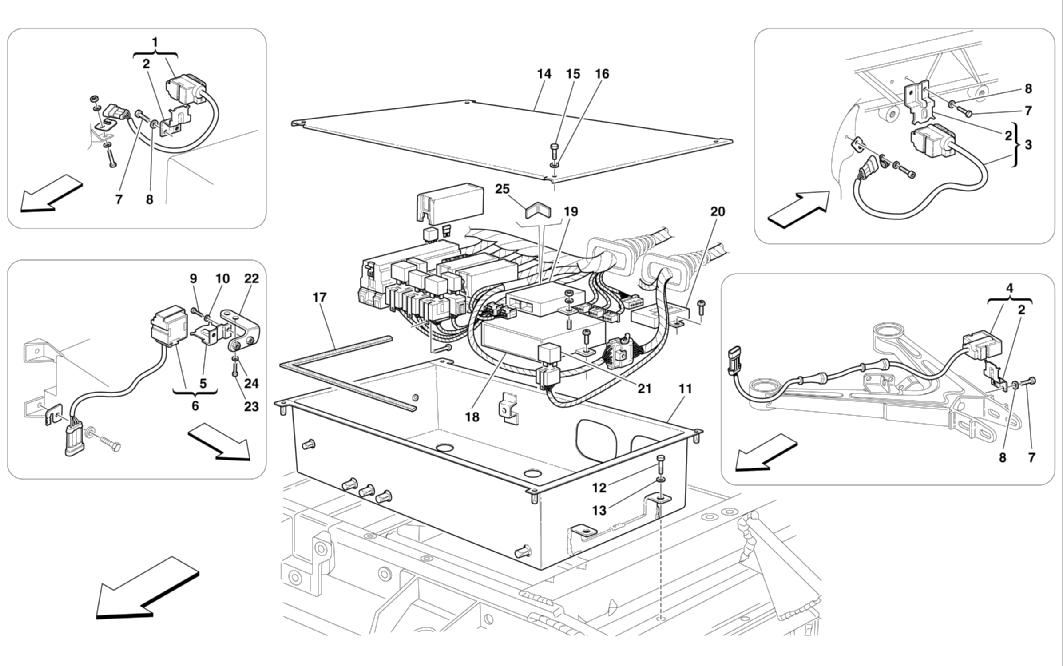

FRONT ELECTRICAL BOARDS AND SENSOR

Go to Split View

FRONT ELECTRICAL BOARDS AND SENSOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194890 *Qty: 2 FRONT VERTICAL ACCELERATION SENSOR $132.81
Location: 2 Prev | Next Part: 178247 *Qty: 5 BRACKET Call
Location: 3 Prev | Next Part: 175220 *Qty: 1 FRONT VERTICAL ACCELERATION SENSOR Superseded
Location: 4 Prev | Next Part: 194888 *Qty: 2 FRONT WHEEL ACCELERATION SENSOR $132.81
Location: 5 Prev | Next Part: 178251 *Qty: 1 BRACKET $113.43
Location: 6 Prev | Next Part: 175221 *Qty: 1 FRONT LATERAL ACCELERATION SENSOR $119.92
Location: 7 Prev | Next Part: 10902024 *Qty: 10 SCREW $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 10 WASHER $0.90
Location: 9 Prev | Next Part: 10979414 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 191071 *Qty: 1 FRONT BOX $318.03
Location: 12 Prev | Next Part: 10902224 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: 11193274 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 193761 *Qty: 1 BOX COVER $196.86
Location: 15 Prev | Next Part: 10977824 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 62984400 *Qty: 1 ANTI-VIBRATIONS $1.81
Location: 18 Prev | Next Part: 197603 *Qty: 1 MOVABLE STABILIZER CONTROL STATION $3,651.42
Location: 19 Prev | Next Part: 200751 *Qty: 1 REPEATER NODE CONTROL STATION -Valid for CDN $1,779.58
Location: 19 Prev | Next Part: 185623 *Qty: 1 REPEATER NODE CONTROL STATION -Not for CDN $1,571.29
Location: 20 Prev | Next Part: 161589 *Qty: 1 HOISTING ELECTRONIC CONTROL STATION $254.97
Location: 21 Prev | Next Part: 155437 *Qty: 1 RELAY FOR ABS $68.30
Location: 21 Prev | Next Part: 155437A *Qty: 1 RELAY (ALT 40AMP) $8.00
Location: 22 Prev | Next Part: 193100 *Qty: 1 SENSOR BRACKET Call
Location: 23 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 205938 *Qty: 1 GASKET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
