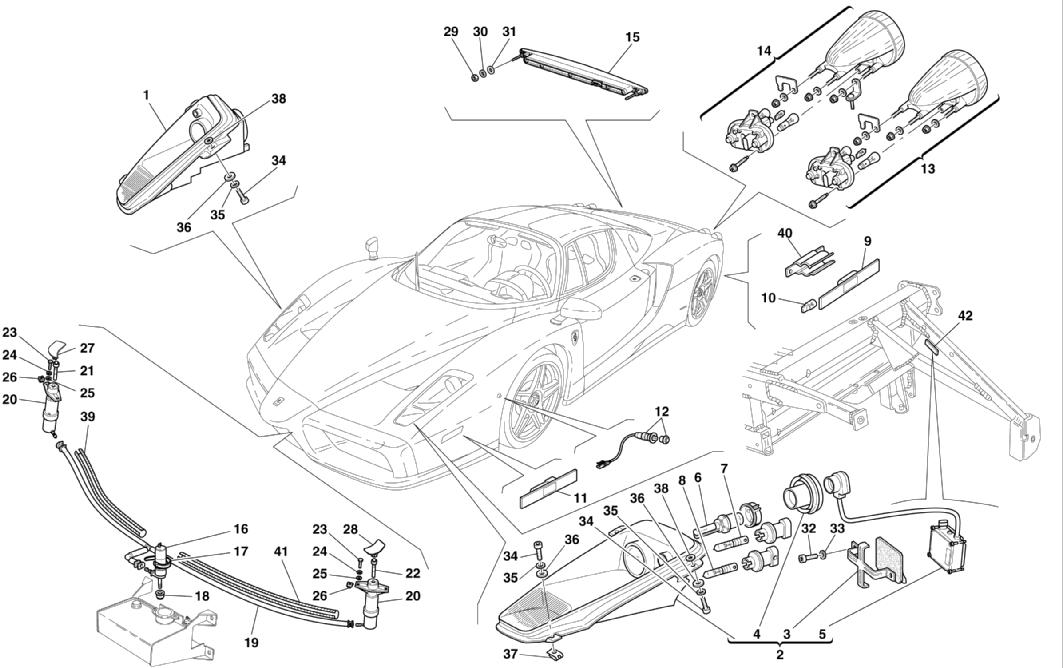

FRONT AND REAR LIGHTS

chevron-left
chevron-right
Go to Split View view-grid

FRONT AND REAR LIGHTS

Location Part # Quantity* Description Price Add To Cart
1 185614 1 R.H. HEADLIGHT LOW/HIGH BEAM -Not for J $10,661.54
1 198498 1 R.H. HEADLIGHT LOW/HIGH BEAM -Valid for J -Valid for RHD version $6,860.88
2 185615 1 L.H. HEADLIGHT LOW/HIGH BEAM -Not for J $10,661.54
2 198499 1 L.H. HEADLIGHT LOW/HIGH BEAM -Valid for J -Valid for RHD version $6,860.88
3 194992 2 BRACKET FOR CONTROL UNIT FIXING $43.42
4 195524 2 PROTECTION Unavailable
5 198092 2 FRONT LIGHT CONTROL STATION $2,034.34
6 14151095 2 12V-55W BULB Unavailable
7 14144190 2 12V-5W BULB Unavailable
8 187652 2 12V-21W BULB $56.82
9 195402 1 R.H. REAR SIDE-MARKER LIGHT -Valid for USA and CDN $97.42
9 195403 1 R.H. REAR SIDE-MARKER LIGHT -Not for USA and CDN $70.68
9 193189 1 L.H. REAR SIDE-MARKER LIGHT -Valid for USA and CDN $68.16
9 195404 1 L.H. REAR SIDE-MARKER LIGHT -Not for USA and CDN $67.95
10 14145890 4 SAE 12V BULB Unavailable
11 193188 1 L.H. FRONT SIDE-MARKER LIGHT $763.26
11 195401 1 R.H. FRONT SIDE-MARKER LIGHT $763.26
12 165558 2 FRONT SIDE DIRECTION LIGHT $40.58
13 193183 1 L.H. OUTER REAR LIGHT -Valid for USA and CDN $844.46
13 185670 1 R.H. OUTER REAR LIGHT -Not for USA and CDN $876.94
13 185671 1 L.H. OUTER REAR LIGHT -Not for USA and CDN $876.94
13 193182 1 R.H. OUTER REAR LIGHT -Valid for USA and CDN $844.46
14 185668 1 R.H. INNER REAR LIGHT -Not for USA and CDN Superseded
14 185669 1 L.H. INNER REAR LIGHT -Not for USA and CDN Superseded
14 193180 1 R.H. INNER REAR LIGHT -Valid for USA and CDN $828.22
14 193181 1 L.H. INNER REAR LIGHT -Valid for USA and CDN $828.22
15 164834 1 ADDITIONAL STOP LIGHT Unavailable
16 65164700 1 HEADLIGHTS WASHER PUMP $75.90
17 145855 1 CLAMP Unavailable
18 65511700 1 GASKET $7.29
19 67292900 1 HEADLIGHTS WASHER PIPE SET $638.41
20 67292600 2 TELESCOPIC HEADLIGHT WASHER $655.67
21 67292700 1 R.H. JET $207.04
22 67292800 1 L.H. JET $189.78
23 16297024 4 SCREW Unavailable
24 12601274 4 WASHER $0.90
25 12643724 4 WASHER Superseded
26 62766300 4 CLIP Unavailable
27 67259510 1 R.H. CUP PLATE HEADLIGHT WASHER $212.11
28 67259610 1 L.H. CUP PLATE HEADLIGHT WASHER $212.11
29 10794014 2 NUT Unavailable
30 10615274 2 WASHER Unavailable
31 12637824 2 WASHER $0.90
32 10977524 4 SCREW $0.90
33 12637824 4 WASHER $0.90
34 14305224 6 SCREW Unavailable
35 12620474 6 WASHER $0.90
36 12644424 6 WASHER Unavailable
37 62766300 2 CLIP Unavailable
38 12625224 2 WASHER Unavailable
39 67632700 1 CORRUGATED HOSE $5.34
40 67118400 4 CLIP $39.67
41 67667000 1 CORRUGATED HOSE $9.30
42 68134000 2 GASKET $61.69

* Quantity shown indicates the number of pieces used in the diagram.
