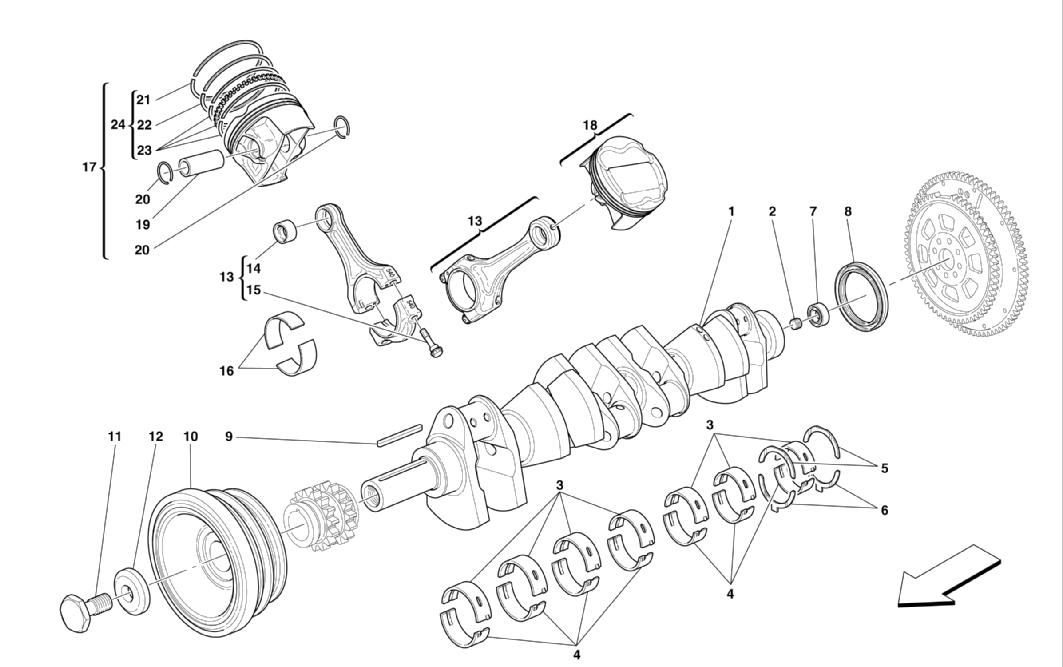

DRIVING SHAFT - CONNECTING RODS AND PISTONS

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Location Part # Quantity* Description Price Add To Cart
- 198440 1 HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE -Red $2,898.84
1 186925 1 CRANKSHAFT $3,522.88
2 163528 1 THREADED PLUG $4.91
3 174716 7 UPPER HALF BEARING -Red -Not as spare part -With the half-bearings complete series $12.95
4 174739 7 LOWER HALF BEARING -Red -Not as spare part -With the half-bearings complete series $14.13
5 179539 2 UPPER SPACER -Standard -Not as spare part -With the half-bearings complete series $327.99
6 189724 2 LOWER SPACER -Standard -Not as spare part -With the half-bearings complete series $57.86
7 103877 1 BEARING FOR SHAFT $39.95
8 200323 1 GASKET $50.12
9 190981 1 KEY $1.24
10 186235 1 TORSION DAMPER $2,229.87
11 140925 1 SCREW Unavailable
12 140922 1 WASHER Unavailable
13 182497 12 COMPLETE CONNECTING ROD AND CAP Unavailable
14 183811 12 BUSHING $140.76
15 177159 24 CONNECTING ROD TIGHTENING SCREW $52.90
16 190265 24 CONNECTING ROD HALF BEARING -Yellow $52.05
16 176151 24 CONNECTING ROD HALF BEARING -1st oversize mm 0,254 $259.41
16 176150 24 CONNECTING ROD HALF BEARING Unavailable
16 182965 24 CONNECTING ROD HALF BEARING -Blue $49.55
16 176152 24 CONNECTING ROD HALF BEARING -2st oversize mm 0,508 $8.97
16 176153 24 CONNECTING ROD HALF BEARING -3st oversize mm 0,762 $8.53
17 186772 6 R.H. PISTON WITH RINGS $460.97
18 186771 6 L.H. PISTON WITH RINGS $460.97
19 175367 12 PIN $72.19
20 178890 24 STOP RING Unavailable
21 175612 12 AC SEAL RING (1nd groove) -Not as spare part -With the pistons rings set $133.21
22 187201 12 AC SEAL RING (2nd groove) -Not as spare part -With the pistons rings set $33.47
23 175614 12 ROF OIL SCRAPING RING (3rd groove) -Not as spare part -With the pistons rings set $129.41
24 198025 12 PISTONS RINGS SET $283.19

* Quantity shown indicates the number of pieces used in the diagram.
