BATTERY

Go to Split View

BATTERY

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 168524 *Qty: 1 60AH 400A HERMETIC VR 68 BATTERY Call
Location: 2 Prev | Next Part: 67119400 *Qty: 1 PLATE FOR BATTERY SUPPORT $220.83
Location: 3 Prev | Next Part: 16043434 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 5 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 67119300 *Qty: 1 ANGLE PIECE $95.52
Location: 7 Prev | Next Part: 67119200 *Qty: 2 TIE ROD $20.71
Location: 8 Prev | Next Part: 102948 *Qty: 2 NUT $0.90
Location: 9 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 10 Prev | Next Part: 154324 *Qty: 1 MOBILE BRACKET $52.24
Location: 11 Prev | Next Part: 16043724 *Qty: 1 SCREW $0.90
Location: 12 Prev | Next Part: 139607 *Qty: 1 CUT-OUT SWITCH Call
Location: 13 Prev | Next Part: 190222 *Qty: 1 GROUND CABLE FOR CUT-OUT SWITCH Call
Location: 14 Prev | Next Part: 190223 *Qty: 1 BATTERY CONNECTION CABLE TO CUT-OUT SWITCH Call
Location: 15 Prev | Next Part: 15688275 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 17 Prev | Next Part: 61067800 *Qty: 2 BRACKET $0.90
Location: 18 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 19 Prev | Next Part: 189561 *Qty: 1 FUSES BOX $115.19
Location: 20 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 22 Prev | Next Part: 16102314 *Qty: 1 NUT Call
Location: 23 Prev | Next Part: 127496 *Qty: 1 WASHER $0.90
Location: 24 Prev | Next Part: 16043524 *Qty: 1 SCREW $0.90
Location: 25 Prev | Next Part: 10519624 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 178685 *Qty: 1 BATTERY CHARGER KIT -Valid for GB and Hong Kong -Optional $986.09
Location: 26 Prev | Next Part: 178683 *Qty: 1 BATTERY CHARGER KIT -Valid for USA, CDN and J -Optional Superseded
Location: 26 Prev | Next Part: 178684 *Qty: 1 BATTERY CHARGER KIT -Valid for AUS -Optional $836.18
Location: 26 Prev | Next Part: 178682 *Qty: 1 BATTERY CHARGER KIT -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $2,054.72
Location: 27 Prev | Next Part: 65699200 *Qty: 1 BATTERY BAG CASE -Optional $432.19
Location: 28 Prev | Next Part: 177791 *Qty: 1 BATTERY CHARGER -230V -Not for USA, CDN and J -Optional $896.55
Location: 28 Prev | Next Part: 177792 *Qty: 1 BATTERY CHARGER -110V -Not for USA, CDN and J -Optional $1,968.24
Location: 29 Prev | Next Part: 177796 *Qty: 1 POWER SUPPLY CABLE -Valid for AUS -Optional Call
Location: 29 Prev | Next Part: 177795 *Qty: 1 POWER SUPPLY CABLE -Valid for USA, CDN and J -Optional $20.12
Location: 29 Prev | Next Part: 178294 *Qty: 1 POWER SUPPLY CABLE -Valid for GB and Hong Kong -Optional Call
Location: 29 Prev | Next Part: 177794 *Qty: 1 POWER SUPPLY CABLE -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $26.83
Location: 30 Prev | Next Part: 178676 *Qty: 1 CABLE WITH CONNECTOR -Optional $368.38
Location: 31 Prev | Next Part: 200857 *Qty: 1 BATTERY CHARGING CONNECTION CABLE -Optional $151.91
Location: 32 Prev | Next Part: 185565 *Qty: 1 BRACKET -Optional $32.20
Location: 33 Prev | Next Part: 10902224 *Qty: 2 SCREW -Optional $0.90
Location: 34 Prev | Next Part: 10519424 *Qty: 4 WASHER -Optional Call
Location: 35 Prev | Next Part: 62738200 *Qty: 2 RIVET -Optional Call

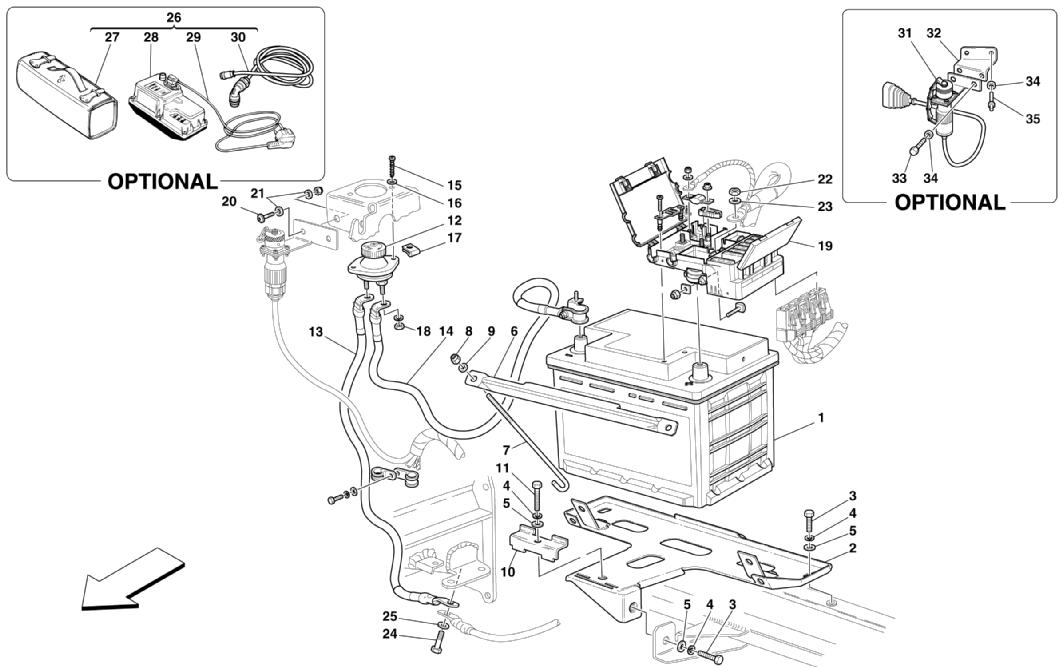

* Quantity shown indicates the number of pieces used in the diagram.
