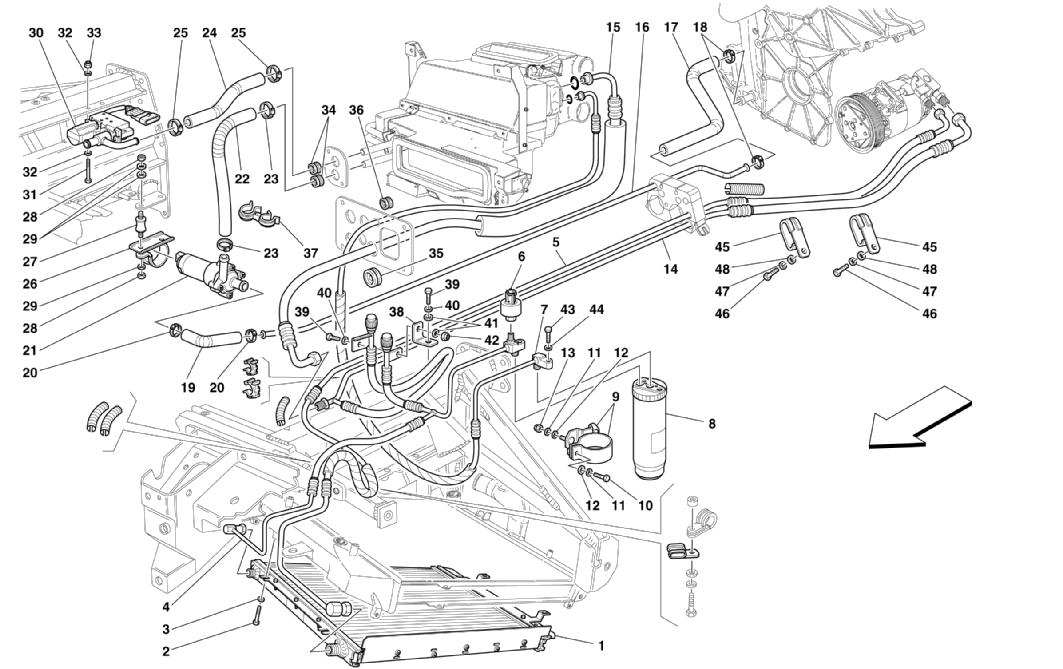

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 190618 *Qty: 1 A.C. CONDENSER $1,175.66
Location: 2 Prev | Next Part: 10902024 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: 11197773 *Qty: 4 WASHER Superseded
Location: 4 Prev | Next Part: 66697400 *Qty: 1 PIPE FROM CONDENSER TO FILTER $283.71
Location: 5 Prev | Next Part: 66697300 *Qty: 1 PIPE FROM COMPRESSOR TO CONDENSER $253.13
Location: 6 Prev | Next Part: 65628200 *Qty: 1 PRESSOSTAT $164.41
Location: 7 Prev | Next Part: 66697500 *Qty: 1 PIPE FROM FILTER TO EVAPORATOR $664.49
Location: 8 Prev | Next Part: 67085100 *Qty: 1 DEHYDRATING FILTER $73.92
Location: 9 Prev | Next Part: 66952600 *Qty: 1 CLAMP FOR FILTER $36.27
Location: 10 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 14498801 *Qty: 3 WASHER $0.90
Location: 12 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 13 Prev | Next Part: 10720114 *Qty: 2 NUT Call
Location: 14 Prev | Next Part: 67085500 *Qty: 1 CONJUNCTION GAS PIPE TO COMPRESSOR $942.12
Location: 15 Prev | Next Part: 66697600 *Qty: 1 PIPE FROM EVAPORATOR TO CONJUNCTION $155.23
Location: 16 Prev | Next Part: 193479 *Qty: 1 WATER PIPE FOR HEATER $73.26
Location: 17 Prev | Next Part: 194064 *Qty: 1 WATER PIPE FROM ENGINE $72.54
Location: 18 Prev | Next Part: 13433370 *Qty: 2 COLLAR FOR SLEEVE $0.94
Location: 19 Prev | Next Part: 67191200 *Qty: 1 WATER PIPE FROM UNDER FLOOR TO PUMP $151.45
Location: 20 Prev | Next Part: 13000490 *Qty: 2 SCREW COLLAR Superseded
Location: 21 Prev | Next Part: 65460300 *Qty: 1 MINIMUM PUMP $229.54
Location: 22 Prev | Next Part: 67191700 *Qty: 1 PIPE FROM PUMP TO HEATER Call
Location: 23 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 24 Prev | Next Part: 67191500 *Qty: 1 PIPE FROM TGK VALVE TO HEATER $167.13
Location: 25 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 26 Prev | Next Part: 63994900 *Qty: 1 BRACKET FOR PUMP FIXING $10.90
Location: 27 Prev | Next Part: 142202 *Qty: 2 PAD $10.09
Location: 28 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 29 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 30 Prev | Next Part: 65066400 *Qty: 1 TGK VALVE $307.62
Location: 31 Prev | Next Part: 15210824 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 10519224 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 62790300 *Qty: 2 NUT $0.90
Location: 34 Prev | Next Part: 10396580 *Qty: 2 CABLE GROMMET $7.17
Location: 35 Prev | Next Part: 10397980 *Qty: 1 CABLE GROMMET $1.21
Location: 36 Prev | Next Part: 10396480 *Qty: 1 CABLE GROMMET $1.48
Location: 37 Prev | Next Part: 140730 *Qty: 2 FIXING CLIP $0.90
Location: 38 Prev | Next Part: 67380500 *Qty: 1 BRACKET Call
Location: 39 Prev | Next Part: 10902287 *Qty: 2 SCREW $0.90
Location: 40 Prev | Next Part: 14499378 *Qty: 2 WASHER $0.90
Location: 41 Prev | Next Part: 67555400 *Qty: 2 WASHER Call
Location: 42 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 43 Prev | Next Part: 10902624 *Qty: 1 SCREW $0.90
Location: 44 Prev | Next Part: 11193274 *Qty: 1 WASHER $0.90
Location: 45 Prev | Next Part: 138478 *Qty: 2 CLAMP $5.68
Location: 46 Prev | Next Part: 10902224 *Qty: 4 SCREW $0.90
Location: 47 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 48 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
