HEATER VALVE RETROFIT KIT - 348, F355

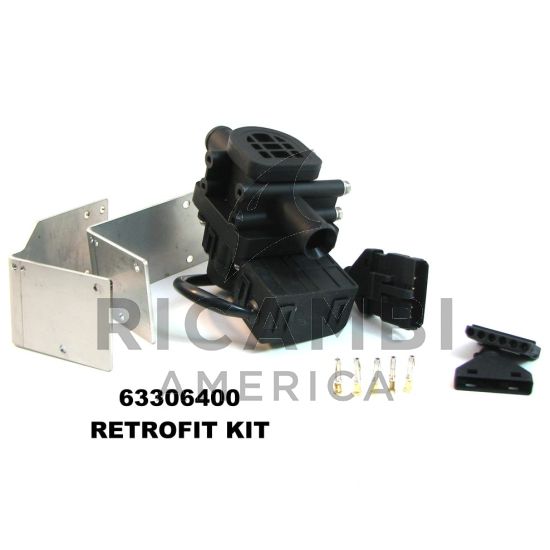

* This is not a `plug and play` item, it is a retrofit kit for the obsolete / original 348/F355 heater valve and motor which was also a (discontinued) Saab item. Kit includes:
* Heater valve + motor assembly
* Mounting brackets for both left-hand-drive and right-hand-drive applications
* 6-way mating connectors
* connection pins
Note:
| PIN | FUNCTION | GAUGE | COLOR |
| 1 | POWER (12V) | 20 | RED/WHITE |
| 2 | POT -ve | 20 | BLACK |
| 3 | POT -Sig | 20 | BLUE |
| 4 | POT +ve (5v) | 20 | YELLOW |
| 5 | POWER (12V) | 20 | YELLOW/BLACK |
| 6 | not used |
Part
63306400
$801.79
/ Each
This item is used in the following applications:
| CarVehicle | *Qty*Quantity | TblTable | LocLocation | Where Used |
|---|---|---|---|---|
| 348 | 1 | 146 | 5 | EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATING |
| 348 (1989-1992) | 1 | 134 | 5 | EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATING |
| F355 M2.7 (1995) | 1 | 143 | 5 | EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION |
| F355 M5.2 (1996+) | 1 | 144 | 5 | EVAPORATOR UNIT AND PASSENGERS COMPARTMENT AERATION |
Contact us about use in cars not listed above.
* Quantity shown indicates the number of pieces used in the diagram.
