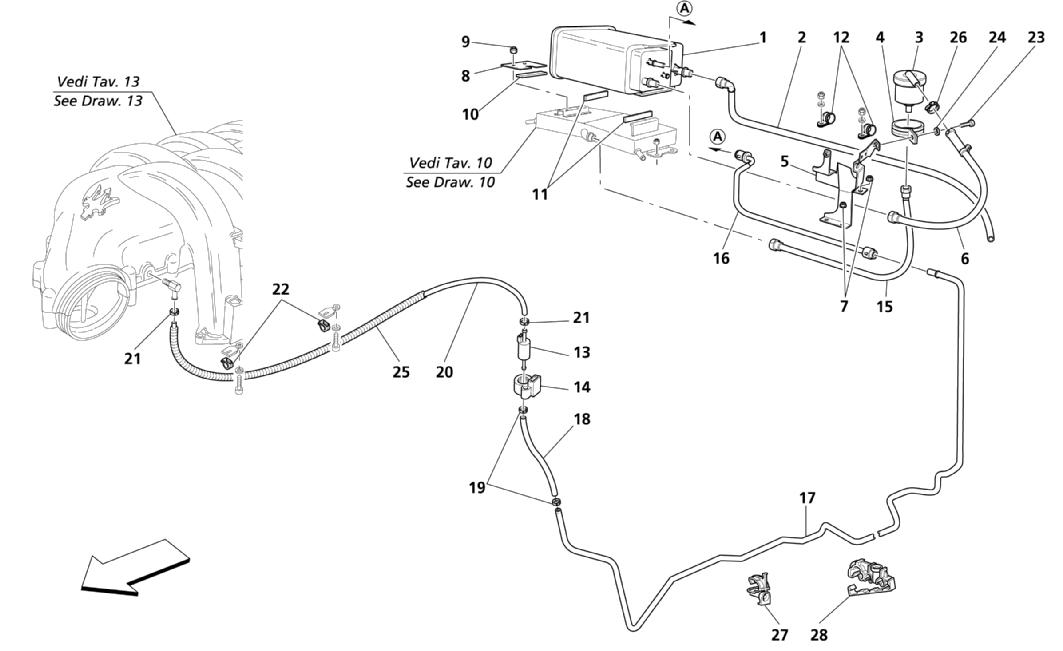

ANTIEVAPORATION DEVICE -NOT FOR USA AND CDN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 185135 *Qty: 1 FUEL VAPOR FILTER $245.50
Location: 2 Prev | Next Part: 188124 *Qty: 1 PIPE FROM CANISTER TO WHELLHOUSE $27.54
Location: 3 Prev | Next Part: 180573 *Qty: 1 ROLL-OVER VALVE $128.32
Location: 4 Prev | Next Part: 189894 *Qty: 1 BRACKET $242.95
Location: 5 Prev | Next Part: 189895 *Qty: 1 BRACKET $242.95
Location: 6 Prev | Next Part: 184553 *Qty: 1 PIPE FROM ROLL-OVER TO CANISTER $51.24
Location: 7 Prev | Next Part: 12574211 *Qty: 4 NUT Superseded
Location: 8 Prev | Next Part: 186920 *Qty: 1 FUEL VAPOR FILTER BRACKET $4.10
Location: 9 Prev | Next Part: 12574211 *Qty: 2 NUT Superseded
Location: 10 Prev | Next Part: 184766 *Qty: 1 RUBBER THICKNESS $10.10
Location: 11 Prev | Next Part: 184221 *Qty: 2 RUBBER THICKNESS $2.90
Location: 12 Prev | Next Part: 10441790 *Qty: 2 BRACKET WITH SHEATH $0.94
Location: 13 Prev | Next Part: 180861 *Qty: 1 WASHING VALVE $32.89
Location: 14 Prev | Next Part: 174623 *Qty: 1 BUFFER FOR SUPPORT $12.72
Location: 15 Prev | Next Part: 187468 *Qty: 1 PIPE FROM DISAREATOR TO ROLL-OVER $463.03
Location: 16 Prev | Next Part: 184557 *Qty: 1 PIPE FROM CANISTER TO UNDERFLOOR $22.87
Location: 17 Prev | Next Part: 190518 *Qty: 1 COMPLETE UNDERFLOOR TUBE $30.74
Location: 18 Prev | Next Part: 181703 *Qty: 1 WASHING VALVE INLET PIPE $8.57
Location: 19 Prev | Next Part: 13432070 *Qty: 2 SCREW COLLAR $0.90
Location: 20 Prev | Next Part: 181704 *Qty: 1 WASHING VALVE OUTLET PIPE $31.37
Location: 21 Prev | Next Part: 190471 *Qty: 2 FIXING CLIP $1.97
Location: 22 Prev | Next Part: 10441790 *Qty: 2 BRACKET WITH SHEATH
- Not for cars with bracket 190509 - (See draw 13 pos. 29)
$0.94
Location: 22 Prev | Next Part: 178430 *Qty: 2 CLIP
- Valid for cars with bracket 190509 - (See draw 13 pos. 29)
$0.90
Location: 23 Prev | Next Part: 10902021 *Qty: 1 SCREW Superseded
Location: 24 Prev | Next Part: 14499324 *Qty: 1 WASHER Superseded
Location: 25 Prev | Next Part: 318720333 *Qty: 1 PIPE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$7.52
Location: 26 Prev | Next Part: 13433370 *Qty: 1 COLLAR FOR SLEEVE $1.08
Location: 27 Prev | Next Part: 187840 *Qty: 1 CLIP
- (Quantity defined during at assembly)
$1.37
Location: 28 Prev | Next Part: 190409 *Qty: 1 CLIP
- (Quantity defined during at assembly)
$6.63

* Quantity shown indicates the number of pieces used in the diagram.
