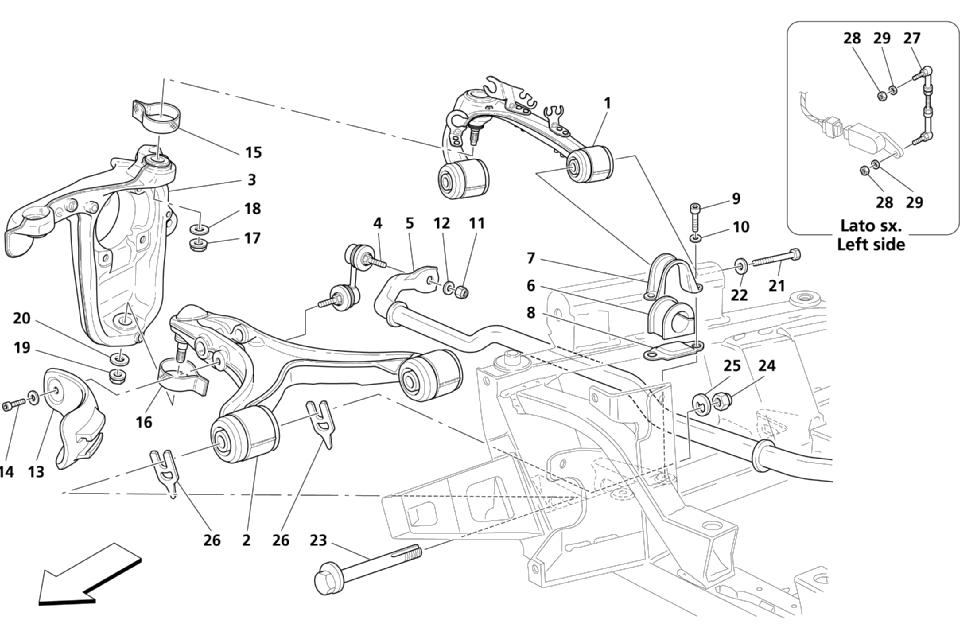

FRONT SUSPENSION

Go to Split View

FRONT SUSPENSION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 227715 *Qty: 1 COMPLETE L.H. FRONT UPPER LEVER Call
Location: 1 Prev | Next Part: 227714 *Qty: 1 COMPLETE R.H. FRONT UPPER LEVER Call
Location: 2 Prev | Next Part: 217151 *Qty: 1 COMPLETE R.H. FRONT LOWER LEVER -Valid after stock exhaustion of 212768- Call
Location: 2 Prev | Next Part: 212768 *Qty: 1 COMPLETE R.H. FRONT LOWER LEVER -Valid till stock exhaustion- Call
Location: 2 Prev | Next Part: 217152 *Qty: 1 COMPLETE L.H. FRONT LOWER LEVER -Valid after stock exhaustion of 212769- $968.66
Location: 2 Prev | Next Part: 212769 *Qty: 1 COMPLETE L.H. FRONT LOWER LEVER -Valid till stock exhaustion- Call
Location: 3 Prev | Next Part: 206865 *Qty: 1 COMPLETE L.H. FRONT HUB HOLDER Call
Location: 3 Prev | Next Part: 206866 *Qty: 1 COMPLETE R.H. FRONT HUB HOLDER Call
Location: 4 Prev | Next Part: 162619 *Qty: 1 L.H. BALL TIE ROD Superseded
Location: 4 Prev | Next Part: 162620 *Qty: 1 R.H. BALL TIE ROD Superseded
Location: 5 Prev | Next Part: 199126 *Qty: 1 ANTI-ROLL BAR $226.43
Location: 6 Prev | Next Part: 199224 *Qty: 2 BAR BUFFER $15.58
Location: 7 Prev | Next Part: 192773 *Qty: 2 UPPER SUPPORT $8.61
Location: 8 Prev | Next Part: 192772 *Qty: 2 LOWER SUPPORT $4.70
Location: 9 Prev | Next Part: 14307534 *Qty: 4 SCREW $3.55
Location: 10 Prev | Next Part: 12604574 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 102742 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 198405 *Qty: 2 AIR FLOW FLAP $11.79
Location: 14 Prev | Next Part: 202013 *Qty: 2 SCREW $9.96
Location: 15 Prev | Next Part: 386600416 *Qty: 2 JOINT UPPER PROTECTION $5.32
Location: 16 Prev | Next Part: 160019 *Qty: 2 JOINT LOWER PROTECTION $3.59
Location: 17 Prev | Next Part: 149807 *Qty: 2 NUT $1.39
Location: 18 Prev | Next Part: 12646924 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 203795 *Qty: 2 NUT $2.92
Location: 20 Prev | Next Part: 205496 *Qty: 2 WASHER $10.25
Location: 21 Prev | Next Part: 15977934 *Qty: 4 SCREW $9.17
Location: 22 Prev | Next Part: 13550634 *Qty: 4 WASHER $2.66
Location: 23 Prev | Next Part: 208320 *Qty: 2 SCREW -Rear fixing- $61.13
Location: 23 Prev | Next Part: 208319 *Qty: 2 SCREW -Front fixing- $64.88
Location: 24 Prev | Next Part: 203795 *Qty: 4 NUT $2.92
Location: 25 Prev | Next Part: 194222 *Qty: 4 WASHER $23.07
Location: 26 Prev | Next Part: 198041 *Qty: 8 SPACER -Thickness mm. 1.75- $3.85
Location: 26 Prev | Next Part: 198039 *Qty: 8 SPACER -Thickness mm. 0.75- $4.73
Location: 26 Prev | Next Part: 198040 *Qty: 8 SPACER -Thickness mm. 1.00- $4.54
Location: 26 Prev | Next Part: 198038 *Qty: 8 SPACER -Thickness mm. 0.50- $4.83
Location: 26 Prev | Next Part: 198042 *Qty: 8 SPACER -Thickness mm. 3.00- $5.23
Location: 27 Prev | Next Part: 188629 *Qty: 1 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER $30.81
Location: 28 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 29 Prev | Next Part: 14498824 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
