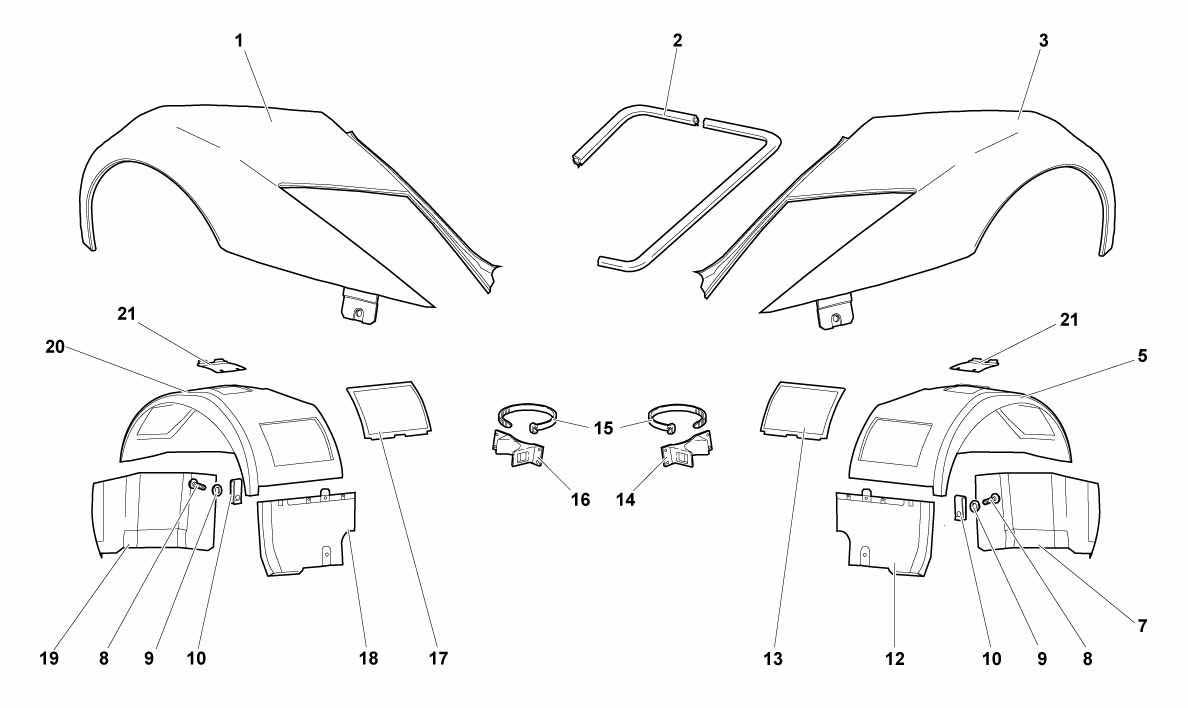

FRONT BODY ELEMENTS

Go to Split View

FRONT BODY ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410821022 *Qty: 1 RIGHT FRONT SIDE FENDER $5,229.51
Location: 2 Prev | Next Part: 410823723 *Qty: 1 GASKET $75.43
Location: 3 Prev | Next Part: 410821021A *Qty: 1 LEFT FRONT SIDE FENDER $5,229.51
Location: 5 Prev | Next Part: 410821177 *Qty: 1 LEFT FRONT WHEEL ARCH, UPPER SIDE $1,653.51
Location: 7 Prev | Next Part: 410821171 *Qty: 1 LEFT FRONT WHEEL ARCH, REAR SIDE $661.40
Location: 8 Prev | Next Part: 8700454 *Qty: 4 SCREW $2.73
Location: 9 Prev | Next Part: 8400614 *Qty: 32 WASHER $0.90
Location: 10 Prev | Next Part: N90834301 *Qty: 4 CLIP $0.90
Location: 12 Prev | Next Part: 410821191 *Qty: 1 LEFT FRONT WHEEL ARCH, FRONT SIDE $346.48
Location: 13 Prev | Next Part: 410821107 *Qty: 1 LEFT FRONT WHEELARCH CHECKING LID $190.63
Location: 14 Prev | Next Part: 410805889 *Qty: 1 LEFT SUPPORT $267.57
Location: 15 Prev | Next Part: 8830306 *Qty: 2 CLAMP $3.07
Location: 16 Prev | Next Part: 410805890 *Qty: 1 RIGHT SUPPORT $267.57
Location: 17 Prev | Next Part: 410821108 *Qty: 1 RIGHT FRONT WHEELARCH CHECKING LID $191.63
Location: 18 Prev | Next Part: 410821192 *Qty: 1 RIGHT FRONT WHEEL ARCH, FRONT SIDE $346.48
Location: 19 Prev | Next Part: 410821172 *Qty: 1 RIGHT FRONT WHEEL ARCH, REAR SIDE $661.40
Location: 20 Prev | Next Part: 410821178 *Qty: 1 RIGHT FRONT WHEELARCH, UPPER SIDE $1,653.51
Location: 21 Prev | Next Part: 410821111 *Qty: 2 RIGHT FRONT WHEELARCH CHECKING LID $210.48

* Quantity shown indicates the number of pieces used in the diagram.
