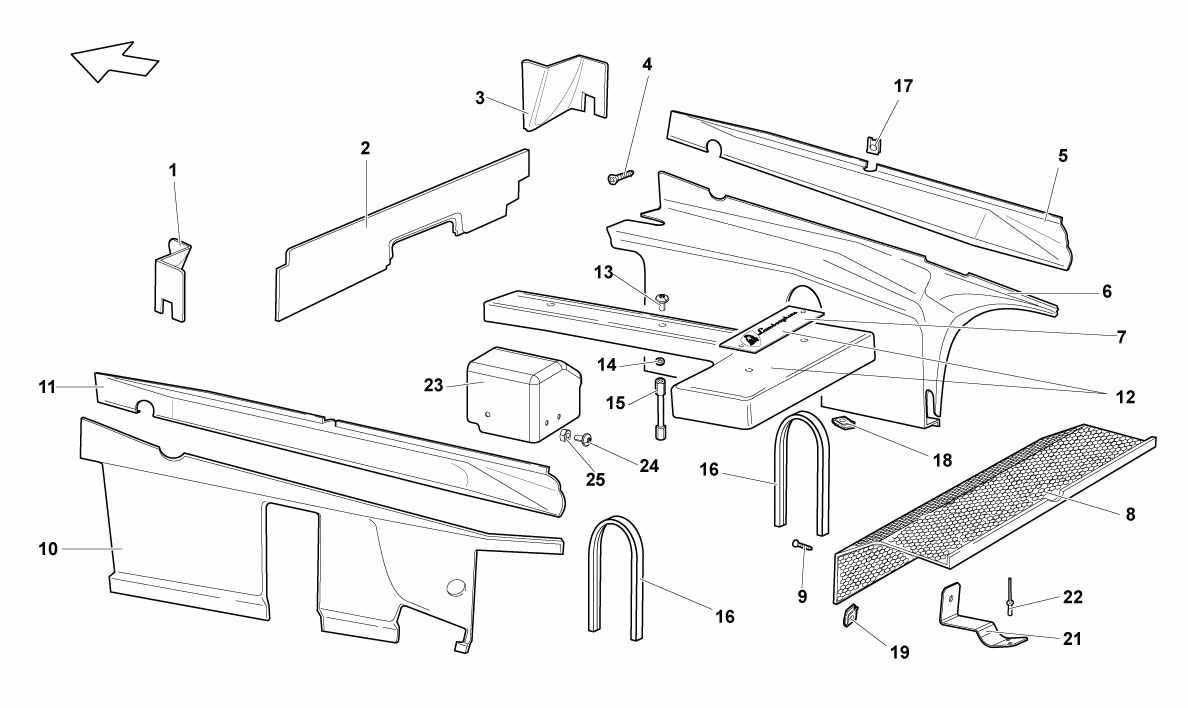

ENGINE COMPARTMENT PANELS

Go to Split View

ENGINE COMPARTMENT PANELS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 418103781 *Qty: 1 ENGINE SIDE REAR WINDOW LEFT SIDE PAINTED PANEL (FROM VIN 12583 USA) $534.22
Location: 1 Prev | Next Part: 68014118 *Qty: 1 ENGINE SIDE REAR WINDOW LEFT SIDE PAINTED PANEL (UP TO VIN 12582 CAN) Call
Location: 2 Prev | Next Part: 418103747 *Qty: 1 PAINTED PANEL UNDER ENGINE SIDE REAR WINDOW $1,513.35
Location: 3 Prev | Next Part: 418103555 *Qty: 1 ENGINE SIDE REAR WINDOW RIGHT SIDE PAINTED PANEL $534.22
Location: 4 Prev | Next Part: N0902661 *Qty: 18 SCREW $2.46
Location: 5 Prev | Next Part: 418103730 *Qty: 1 ENGINE COMPARTMENT UPPER RIGHT SIDE PAINTED PANEL $1,487.00
Location: 6 Prev | Next Part: 418103729 *Qty: 1 ENGINE COMPARTMENT LOWER RIGHT SIDE PAINTED PANEL $2,362.51
Location: 7 Prev | Next Part: 7M103115 *Qty: 1 FUEL PIPING COVER PLATE $283.39
Location: 8 Prev | Next Part: 418864878 *Qty: 1 AUXILIARY COMPONENTS COVERING GRID $596.64
Location: 9 Prev | Next Part: N0902661 *Qty: 4 SCREW $2.46
Location: 10 Prev | Next Part: 418103754 *Qty: 1 ENGINE COMPARTMENT LOWER LEFT SIDE PAINTED PANEL $2,362.51
Location: 11 Prev | Next Part: 418103753 *Qty: 1 ENGIEN COMPARTMENT UPPER LEFT SIDE PAINTED PANEL $1,487.00
Location: 12 Prev | Next Part: 20010156 *Qty: 1 FUEL PIPING COVER SET $2,102.75
Location: 13 Prev | Next Part: N90842903 *Qty: 4 SCREW M6X12 $0.90
Location: 14 Prev | Next Part: 8400703 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 7M103728 *Qty: 2 STUD $51.28
Location: 16 Prev | Next Part: 410103121 *Qty: 2 GASKET $70.21
Location: 17 Prev | Next Part: 8220402 *Qty: 8 CLIP $1.31
Location: 18 Prev | Next Part: 8220603 *Qty: 1 CLIP $4.15
Location: 19 Prev | Next Part: 8220505 *Qty: 4 CLIP $4.09
Location: 21 Prev | Next Part: 410813988 *Qty: 4 BRACKET $6.91
Location: 22 Prev | Next Part: 410809864 *Qty: 8 RIVET $0.90
Location: 23 Prev | Next Part: 7M103939 *Qty: 1 COVER $817.41
Location: 24 Prev | Next Part: N90842903 *Qty: 2 SCREW M6X12 $0.90
Location: 25 Prev | Next Part: 8200612 *Qty: 2 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
