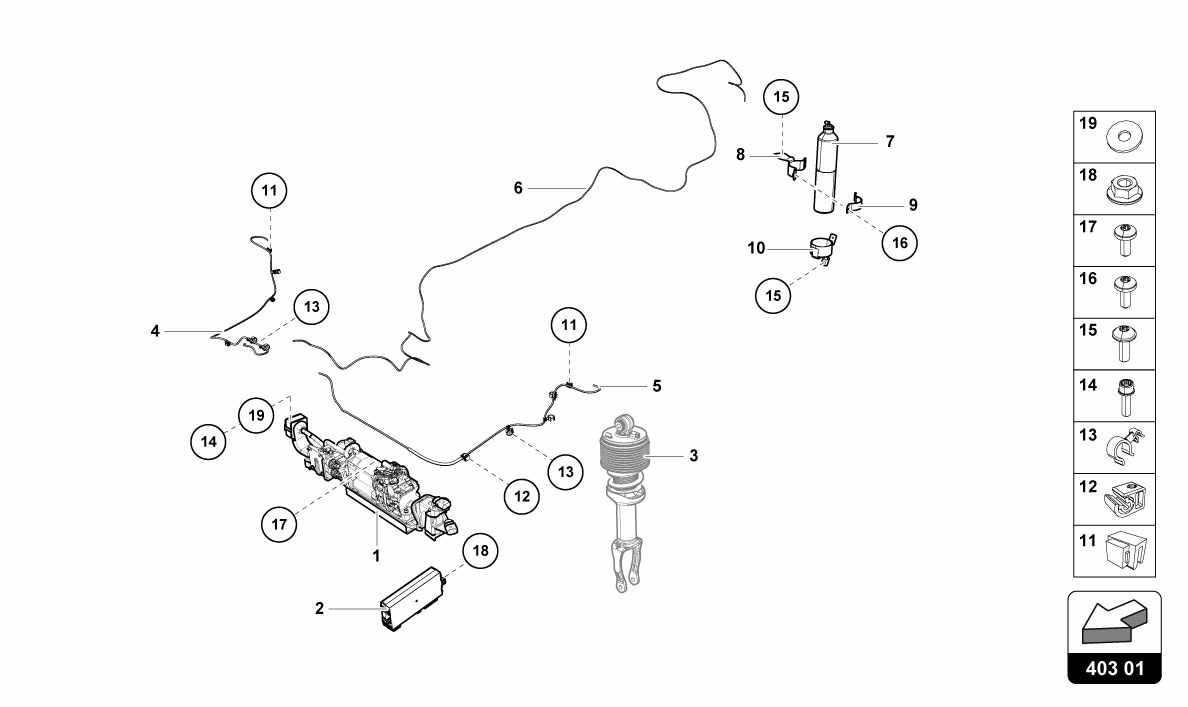

LIFTING_SYSTEM

Go to Split View

LIFTING_SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4S0616007D *Qty: 1 LIFTING SYSTEM COMPRESSOR $4,133.77
Location: 2 Prev | Next Part: 4S0959257 *Qty: 1 LIFTING SYSTEM CONTROL UNIT $320.91
Location: 3 Prev | Next Part: *Qty: 0 SHOCK ABSORBER (SEE TABLE 411.01.00) Call
Location: 4 Prev | Next Part: 4S0616620A *Qty: 1 RH FRONT HOSE $12.90
Location: 5 Prev | Next Part: 4S0616619A *Qty: 1 LH FRONT HOSE $14.93
Location: 6 Prev | Next Part: 4S1616625 *Qty: 1 REAR HOSE (LHD) Call
Location: 7 Prev | Next Part: 4S0616203 *Qty: 1 PRESSURE ACCUMULATOR Call
Location: 8 Prev | Next Part: 4S0616250B *Qty: 1 BRACKET $61.82
Location: 9 Prev | Next Part: 4S0616251A *Qty: 1 BRACKET $53.26
Location: 10 Prev | Next Part: 4S0616249A *Qty: 1 BRACKET $166.82
Location: 11 Prev | Next Part: 5M0971838A *Qty: 5 CLAMP $1.82
Location: 12 Prev | Next Part: 7LP611794 *Qty: 5 SUPPORT $1.39
Location: 13 Prev | Next Part: N10567002 *Qty: 5 CLIP $1.69
Location: 14 Prev | Next Part: N91048802 *Qty: 2 SCREW (M8X16) $1.06
Location: 15 Prev | Next Part: N91096801 *Qty: 3 SCREW (M6X20) $0.90
Location: 16 Prev | Next Part: N90780904 *Qty: 1 SCREW (M6X16) $0.90
Location: 17 Prev | Next Part: N10714801 *Qty: 1 SCREW (M6X18) $0.90
Location: 18 Prev | Next Part: N10017304 *Qty: 1 NUT (M5) $0.90
Location: 19 Prev | Next Part: N90033308 *Qty: 1 WASHER $0.93

* Quantity shown indicates the number of pieces used in the diagram.
