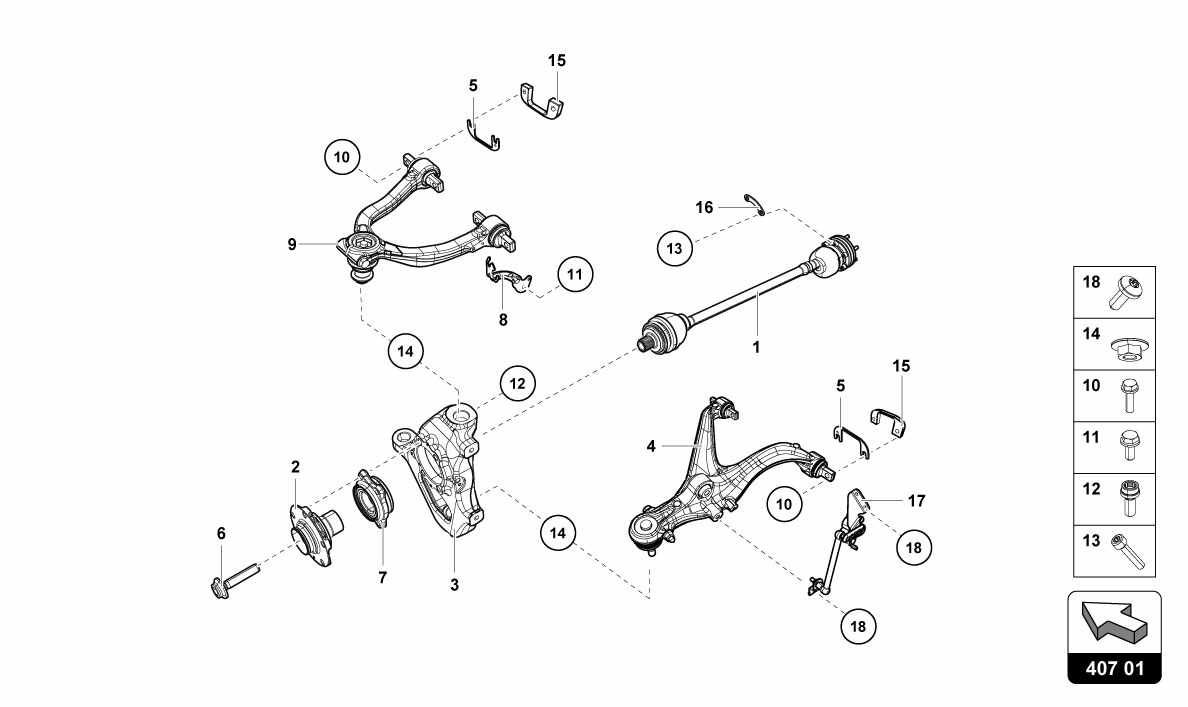

FRONT DRIVE SHAFT AND ARMS

Go to Split View

FRONT DRIVE SHAFT AND ARMS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0407271 *Qty: 2 FRONT OMOKINETIC DRIVE SHAFT (SPECIAL ORDER ONLY) $512.43
Location: 2 Prev | Next Part: 4D0407613E *Qty: 2 HUB $240.15
Location: 3 Prev | Next Part: 4T0407245B *Qty: 1 FRONT LEFT HUB CARRIER (SPECIAL ORDER ONLY) $488.01
Location: 3 Prev | Next Part: 4T0407246B *Qty: 1 FRONT RIGHT HUB CARRIER (SPECIAL ORDER ONLY) $472.96
Location: 4 Prev | Next Part: 4T0407151A *Qty: 1 LH LOWER ARM (SPECIAL ORDER ONLY) $681.58
Location: 4 Prev | Next Part: 4T0407152A *Qty: 1 RH LOWER ARM (SPECIAL ORDER ONLY) $844.91
Location: 5 Prev | Next Part: 4S0407203C *Qty: 4 SHIM (1.0 MM) $5.43
Location: 5 Prev | Next Part: 4S0407203D *Qty: 4 SHIM (2.0 MM) $5.81
Location: 5 Prev | Next Part: 4S0407203E *Qty: 4 SHIM (3.0 MM) $6.28
Location: 5 Prev | Next Part: 4S0407203G *Qty: 4 SHIM (0.5 MM) $5.21
Location: 6 Prev | Next Part: 4B0407643A *Qty: 2 HEXAGON HEAD BOLT (M16X72) $14.53
Location: 7 Prev | Next Part: 4E0407625E *Qty: 2 BEARING $198.85
Location: 8 Prev | Next Part: 4S0611841G *Qty: 1 LH BRACKET $9.19
Location: 8 Prev | Next Part: 4S0611842G *Qty: 1 RH BRACKET $9.19
Location: 9 Prev | Next Part: 4T0407505A *Qty: 1 LH UPPER ARM (SPECIAL ORDER ONLY) $595.62
Location: 9 Prev | Next Part: 4T0407506A *Qty: 1 RH UPPER ARM (SPECIAL ORDER ONLY) $595.62
Location: 10 Prev | Next Part: N10706902 *Qty: 8 SCREW (M10X55) $2.68
Location: 11 Prev | Next Part: WHT007142 *Qty: 8 SCREW (M10X42) $2.81
Location: 12 Prev | Next Part: WHT000237 *Qty: 8 SCREW (M12X45) $4.60
Location: 13 Prev | Next Part: N91108201 *Qty: 8 SCREW (M8X48) $2.76
Location: 14 Prev | Next Part: WHT004898 *Qty: 4 NUT (M14X1.5) $3.06
Location: 15 Prev | Next Part: 4T0806569 *Qty: 4 SHIM (15.0 MM) $38.94
Location: 16 Prev | Next Part: 420407357 *Qty: 4 SHIM (15.0 MM) $1.22
Location: 17 Prev | Next Part: 4T0941273A *Qty: 1 LH HEADLAMP SENSOR $94.88
Location: 17 Prev | Next Part: 4T0941274A *Qty: 1 RH HEADLAMP SENSOR $94.88
Location: 18 Prev | Next Part: N10405604 *Qty: 6 SCREW (M6X14) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
