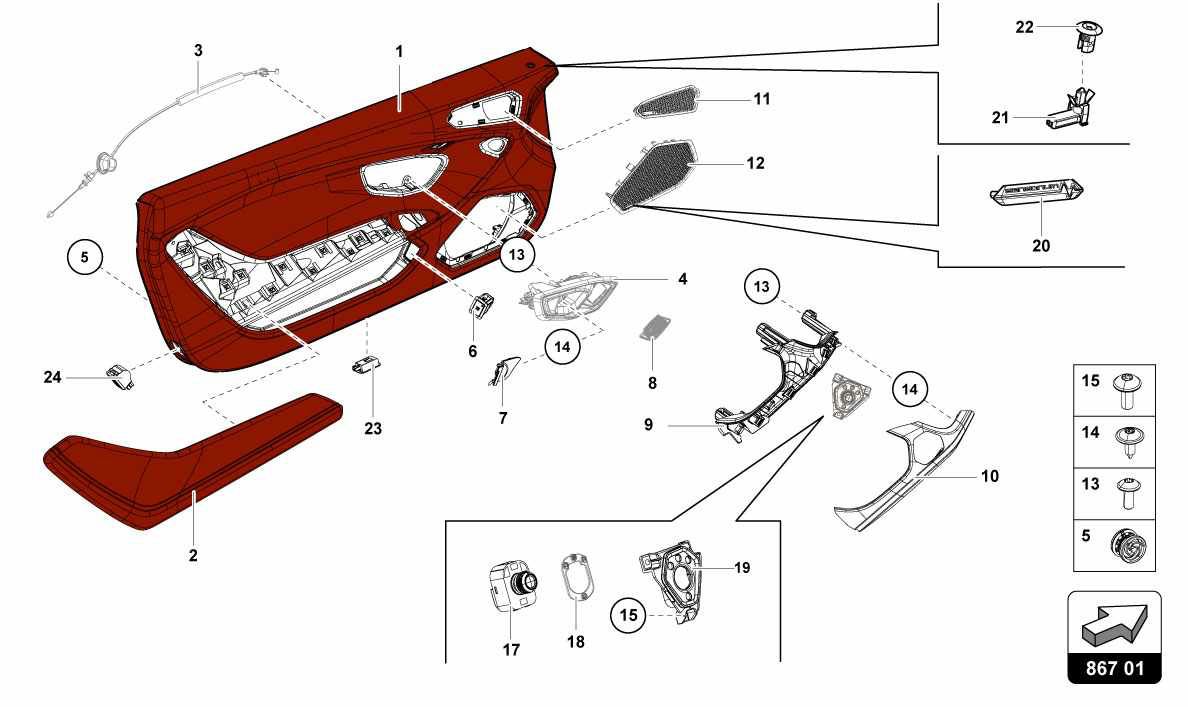

DOORS-INSIDE TRIMS

Go to Split View

DOORS-INSIDE TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T1867107M *Qty: 1 LH DOOR PANEL ASSEMBLY (WITH ANTI-THEFT SYSTEM - LEATHER INTERIOR - SUPPLY VIN) $2,772.80
Location: 1 Prev | Next Part: 4T1867107N *Qty: 1 LH DOOR PANEL ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) $2,772.80
Location: 1 Prev | Next Part: 4T1867108M *Qty: 1 RH DOOR PANEL ASSEMBLY (WITH ANTI-THEFT SYSTEM - LEATHER INTERIOR - SUPPLY VIN) $2,772.80
Location: 1 Prev | Next Part: 4T1867108N *Qty: 1 RH DOOR PANEL ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) $2,772.80
Location: 2 Prev | Next Part: 4T0867165B *Qty: 1 LEFT DOOR UPHOLSTERY (LEATHER INTERIOR - SUPPLY VIN) $847.06
Location: 2 Prev | Next Part: 4T0867165C *Qty: 1 LEFT DOOR UPHOLSTERY (OPT LEATHER AND ALCANTARA INTERIOR - SUPPLY VIN) $815.53
Location: 2 Prev | Next Part: 4T0867166B *Qty: 1 RIGHT DOOR UPHOLSTERY (LEATHER INTERIOR - SUPPLY VIN) $815.53
Location: 2 Prev | Next Part: 4T0867166C *Qty: 1 RIGHT DOOR UPHOLSTERY (OPT LEATHER AND ALCANTARA INTERIOR - SUPPLY VIN) $815.53
Location: 3 Prev | Next Part: *Qty: 0 CAVO BOWDEN (SEE TABLE 837.02.00) Call
Location: 4 Prev | Next Part: *Qty: 0 LH INNER HANDLE (SEE TABLE 837.02.00) Call
Location: 5 Prev | Next Part: 7L6868243 *Qty: 1 FASTENER (LEATHER INTERIOR - SUPPLY VIN) $0.90
Location: 6 Prev | Next Part: 4H0962109 *Qty: 1 DWA SWITCH (ANTI-THEFT SYSTEM OPT) $22.29
Location: 7 Prev | Next Part: 4T0837307 *Qty: 1 LH COVER INNER DOOR HANDLE $26.75
Location: 7 Prev | Next Part: 4T0837308 *Qty: 1 RH COVER INNER DOOR HANDLE $26.75
Location: 8 Prev | Next Part: *Qty: 1 LH DOOR LOCK/UNLOCK SWITCH (SEE TABLE 837.02.00) Call
Location: 8 Prev | Next Part: *Qty: 1 RH DOOR LOCK/UNLOCK SWITCH (SEE TABLE 837.02.00) Call
Location: 9 Prev | Next Part: 4T0867157 *Qty: 1 LH HANDLE $347.96
Location: 9 Prev | Next Part: 4T0867158 *Qty: 1 RH HANDLE $347.96
Location: 10 Prev | Next Part: 4T0867171 *Qty: 1 LH COVER HANDLE $217.47
Location: 10 Prev | Next Part: 4T0867172 *Qty: 1 RH COVER HANDLE $217.47
Location: 11 Prev | Next Part: *Qty: 1 LH UPPER LOUDSPEAKER TRIM Call
Location: 11 Prev | Next Part: *Qty: 1 RH UPPER LOUDSPEAKER TRIM Call
Location: 12 Prev | Next Part: *Qty: 1 LH LOUDSPEAKER TRIM Call
Location: 12 Prev | Next Part: *Qty: 1 RH LOUDSPEAKER TRIM Call
Location: 13 Prev | Next Part: N90986803 *Qty: 10 SCREW ST4.2X13 $0.90
Location: 14 Prev | Next Part: N91180901 *Qty: 8 SCREW M5X20 $0.90
Location: 15 Prev | Next Part: N10602101 *Qty: 4 SCREW TPAX10 $0.90
Location: 17 Prev | Next Part: 470959565A *Qty: 1 OUTER REARVIEW MIRROR CONTROL SWITCH (BLACK H77) $54.43
Location: 18 Prev | Next Part: 8T0919173A *Qty: 1 GLASS CONTROL SWITCH $5.37
Location: 19 Prev | Next Part: 4T1867185 *Qty: 1 LH ORNAMENT (FRAME) Call
Location: 19 Prev | Next Part: 4T1867186 *Qty: 1 RH ORNAMENT (FRAME) Call
Location: 20 Prev | Next Part: *Qty: 1 LH NAMEPLATE Call
Location: 20 Prev | Next Part: *Qty: 1 RH NAMEPLATE Call
Location: 21 Prev | Next Part: 8Z0919238 *Qty: 2 LED Call
Location: 22 Prev | Next Part: 8Z0919242 *Qty: 4 RING NUT $1.54
Location: 23 Prev | Next Part: 4E0947415A *Qty: 2 LOWER DOOR CLEARANCE LIGHT $20.50
Location: 24 Prev | Next Part: 6Y0947411 *Qty: 2 DOOR CLEARANCE LIGHT $19.02

* Quantity shown indicates the number of pieces used in the diagram.
