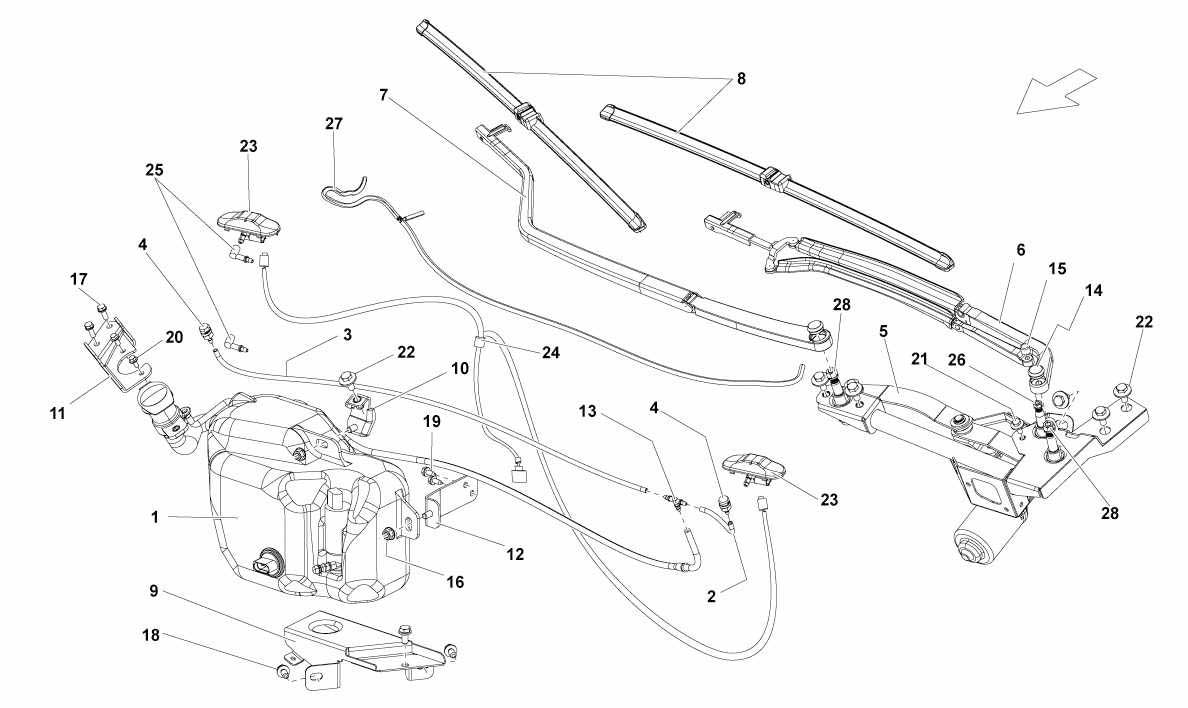

WINDSHIELD WIPER

Go to Split View

WINDSHIELD WIPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400955448 *Qty: 1 WASHER RESERVOIR ASSEMBLY $238.30
Location: 2 Prev | Next Part: 400955961A *Qty: 1 PIPE $17.15
Location: 3 Prev | Next Part: 400955963 *Qty: 1 PIPE $15.77
Location: 4 Prev | Next Part: *Qty: 0 NOZZLE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 5 Prev | Next Part: 401955023 *Qty: 1 LINKAGE GEARMOTOR $699.78
Location: 6 Prev | Next Part: 401955407 *Qty: 1 LH WIPER ARM $325.89
Location: 7 Prev | Next Part: 401955408 *Qty: 1 RH WIPER ARM $127.20
Location: 8 Prev | Next Part: 401955425A *Qty: 2 WINDSCREEN WIPER Superseded
Location: 9 Prev | Next Part: 401955458A *Qty: 1 BRACKET $77.42
Location: 10 Prev | Next Part: 401955476 *Qty: 1 BRACKET $17.59
Location: 11 Prev | Next Part: 401955775 *Qty: 1 SUPPORT $37.35
Location: 12 Prev | Next Part: 401955932 *Qty: 1 BRACKET $18.92
Location: 13 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $1.11
Location: 14 Prev | Next Part: 1J0955205A *Qty: 2 PLUG $4.63
Location: 15 Prev | Next Part: 400955440 *Qty: 1 CAP $2.25
Location: 16 Prev | Next Part: N0230038 *Qty: 2 NUT M8 $0.90
Location: 17 Prev | Next Part: N0902423 *Qty: 2 SCREW M6X18 $0.90
Location: 18 Prev | Next Part: N10049303 *Qty: 3 SCREW M8X20 $0.90
Location: 19 Prev | Next Part: N10095502 *Qty: 2 SCREW M6X15 $0.90
Location: 20 Prev | Next Part: N10338301 *Qty: 2 SCREW M5X12 $0.90
Location: 21 Prev | Next Part: N10557901 *Qty: 1 SCREW M5X16.0 $7.47
Location: 22 Prev | Next Part: N90848001 *Qty: 5 SCREW M8X18 $0.90
Location: 23 Prev | Next Part: 5M0955985 *Qty: 2 NOZZLE $11.99
Location: 23 Prev | Next Part: 5M0955986 *Qty: 2 NOZZLE (HEATED) $32.33
Location: 24 Prev | Next Part: 400971163 *Qty: 1 WIRING HARNESS $39.04
Location: 25 Prev | Next Part: 1J0955665 *Qty: 2 CONNECTOR $1.49
Location: 26 Prev | Next Part: N02214813 *Qty: 1 NUT M6 $0.90
Location: 27 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 28 Prev | Next Part: N90226404 *Qty: 2 NUT M8 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
