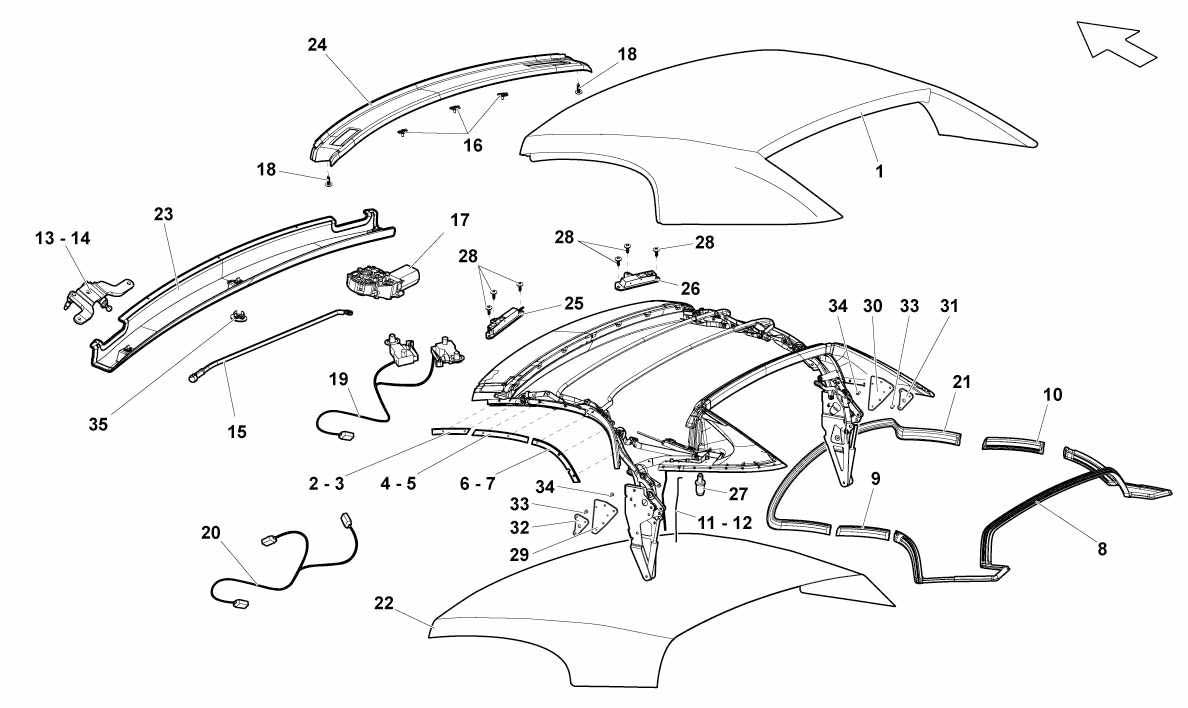

ROOF PANEL SOFT TOP - COMPONENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407871211B *Qty: 1 FOLDING-TOP CLOTH (GREY) $4,048.55
Location: 1 Prev | Next Part: 407871211A *Qty: 1 FOLDING-TOP CLOTH (BLUE) $3,956.12
Location: 1 Prev | Next Part: 407871211 *Qty: 1 FOLDING-TOP CLOTH (BLACK) $3,344.68
Location: 1 Prev | Next Part: 407871211C *Qty: 1 FOLDING-TOP CLOTH (BEIGE) $4,472.46
Location: 2 Prev | Next Part: 407871483 *Qty: 1 BRACKET 1 LEFT $180.91
Location: 3 Prev | Next Part: 407871484 *Qty: 1 BRACKET 1 RIGHT $180.91
Location: 4 Prev | Next Part: 407871493 *Qty: 1 BRACKET 2 LEFT $194.45
Location: 5 Prev | Next Part: 407871494 *Qty: 1 BRACKET 2 RIGHT $194.45
Location: 6 Prev | Next Part: 407871785 *Qty: 1 BRACKET 3 LEFT $226.43
Location: 7 Prev | Next Part: 407871786 *Qty: 1 BRACKET 3 RIGHT $226.43
Location: 8 Prev | Next Part: 407871381 *Qty: 1 SEAL SOFT TOP 3 REAR $1,200.33
Location: 9 Prev | Next Part: 407871419 *Qty: 1 GASKET 2 LEFT $369.63
Location: 10 Prev | Next Part: 407871420 *Qty: 1 GASKET 2 RIGHT $369.63
Location: 11 Prev | Next Part: 407871507 *Qty: 1 ROD LEFT $219.29
Location: 12 Prev | Next Part: 407871508 *Qty: 1 ROD RIGHT $219.29
Location: 13 Prev | Next Part: 407871385 *Qty: 1 TOP CATCH LEFT $353.09
Location: 14 Prev | Next Part: 407871386 *Qty: 1 TOP CATCH RIGHT $353.09
Location: 15 Prev | Next Part: 407871403 *Qty: 1 LEVER $431.76
Location: 16 Prev | Next Part: N10205802 *Qty: 3 NUT M6 $0.90
Location: 17 Prev | Next Part: 407959783 *Qty: 1 LOCKING MOTOR $365.00
Location: 18 Prev | Next Part: N90986801 *Qty: 2 SCREW 4.2X13.0 $0.90
Location: 19 Prev | Next Part: 407971211A *Qty: 1 WIRING HARNESS $236.93
Location: 20 Prev | Next Part: 407972383 *Qty: 1 WIRING SOFT TOP $178.03
Location: 21 Prev | Next Part: 407871415 *Qty: 1 SEAL SOFT TOP 1 FRONT $879.73
Location: 22 Prev | Next Part: 407871943 *Qty: 1 INNERLINING $1,929.03
Location: 23 Prev | Next Part: 407871277 *Qty: 1 TRIM FRONTHEADER $673.03
Location: 24 Prev | Next Part: 407867969 *Qty: 1 LINING $476.26
Location: 25 Prev | Next Part: 407871157A *Qty: 1 STOP MEMBER LEFT $749.78
Location: 26 Prev | Next Part: 407871158A *Qty: 1 STOP MEMBER RIGHT $749.78
Location: 27 Prev | Next Part: WHT001376 *Qty: 2 BALL PIN $58.42
Location: 28 Prev | Next Part: N10578901 *Qty: 6 SCREW M8X20 $1.04
Location: 29 Prev | Next Part: 407810949B *Qty: 1 SPACER LEFT (8 MM) $48.68
Location: 29 Prev | Next Part: 407810949 *Qty: 1 SPACER LEFT (6 MM) $42.31
Location: 29 Prev | Next Part: 407810949A *Qty: 1 SPACER LEFT (7 MM) $46.23
Location: 30 Prev | Next Part: 407810950 *Qty: 1 SPACER RIGHT (6 MM) $42.31
Location: 30 Prev | Next Part: 407810950A *Qty: 1 SPACER RIGHT (7 MM) $46.23
Location: 30 Prev | Next Part: 407810950B *Qty: 1 SPACER RIGHT (8 MM) $48.68
Location: 31 Prev | Next Part: 407872397 *Qty: 1 SPACER $19.21
Location: 32 Prev | Next Part: 407872397 *Qty: 1 SPACER $19.21
Location: 33 Prev | Next Part: WHT002225 *Qty: 6 SCREW M8X16 $1.11
Location: 34 Prev | Next Part: WHT002226 *Qty: 6 SCREW M8X10 $1.09
Location: 35 Prev | Next Part: 400498849A *Qty: 1 PLUG $7.47

* Quantity shown indicates the number of pieces used in the diagram.
