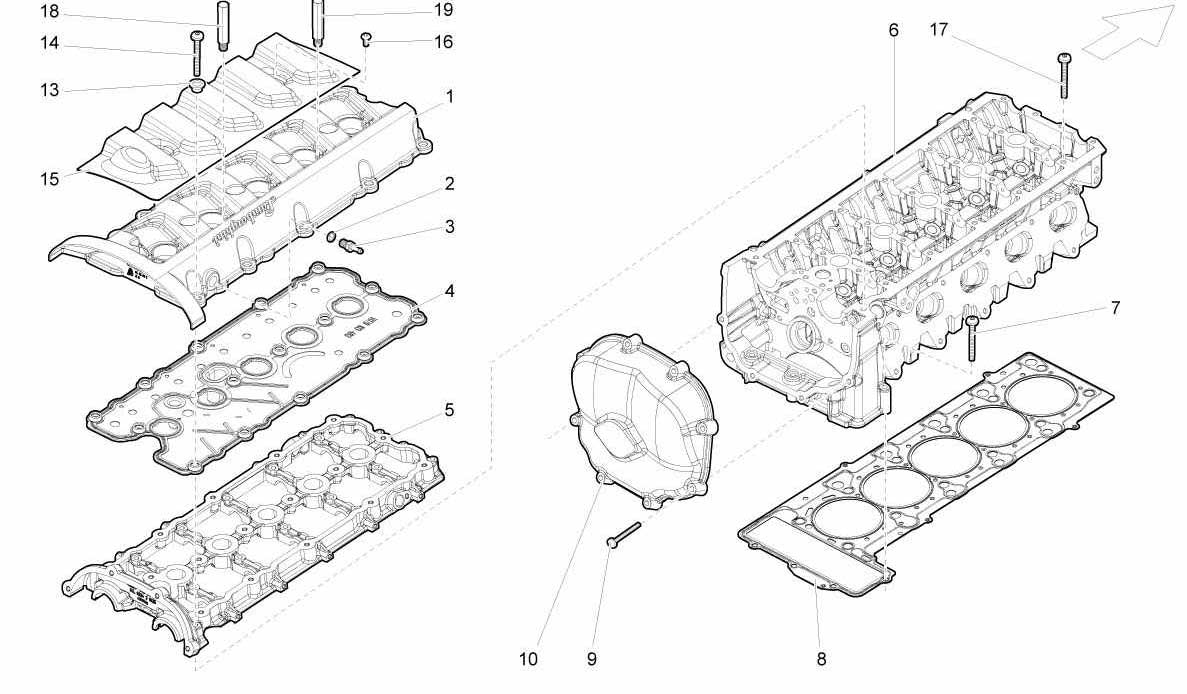

LEFT CYLINDER HEAD COVERS

Go to Split View

LEFT CYLINDER HEAD COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + 07L103064AA) Call
Location: - Prev | Next Part: *Qty: 0 UNTIL THE VIN 6LA03722 IN CASE OF REPLECEMENT OF BOTH CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + Call
Location: 1 Prev | Next Part: 7L103475F *Qty: 1 COVER $769.10
Location: 2 Prev | Next Part: N0138486 *Qty: 1 WASHER $0.90
Location: 3 Prev | Next Part: 7L103606A *Qty: 1 CONNECTOR $36.01
Location: 4 Prev | Next Part: 7L103483D *Qty: 1 GASKET $372.82
Location: 5 Prev | Next Part: *Qty: 1 LH SET PLATE (CANNOT BE SOLD SEPARATELY - SEE REF. 6) Call
Location: 6 Prev | Next Part: 7L103063B *Qty: 1 ASSEMBLEY 6-10 CYLINDER HEAD (UNTIL THE VIN 6LA03722) $12,897.37
Location: 6 Prev | Next Part: 7L103063A *Qty: 1 ASSEMBLEY 6-10 CYLINDER HEAD (FROM VIN 6LA03723 ATTENTION UNTIL THE VIN 6LA03722 IN CASE OF REPLECEMENT OF BOTH CYLINDEHEADS ORDER THE NEW CODES: 07L103063AA + 07L103064AA) Call
Location: 7 Prev | Next Part: N10470702 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 7L103383H *Qty: 1 GASKET $141.08
Location: 9 Prev | Next Part: N10156206 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 6E109285D *Qty: 1 COVER $50.80
Location: 13 Prev | Next Part: 7L103195A *Qty: 16 BUSHING $6.13
Location: 14 Prev | Next Part: N90917201 *Qty: 14 SCREW $0.90
Location: 15 Prev | Next Part: 7L103908 *Qty: 1 COVER $164.16
Location: 16 Prev | Next Part: N10335202 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: WHT000374 *Qty: 12 SCREW $19.88
Location: 18 Prev | Next Part: 7L103728A *Qty: 1 STUD - 38 mm $16.06
Location: 19 Prev | Next Part: 7L103728 *Qty: 1 STUD - 32 mm $15.96

* Quantity shown indicates the number of pieces used in the diagram.
