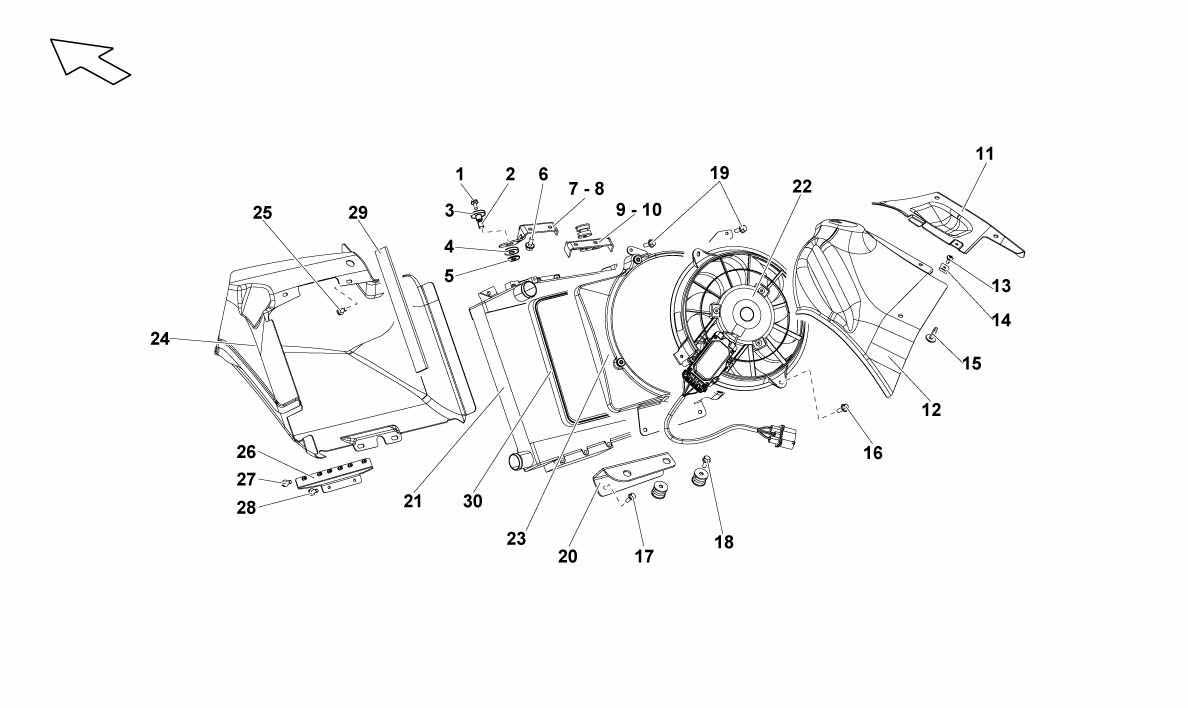

WATER COOLING SYSTEM

Go to Split View

WATER COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10005109 *Qty: 8 SCREW M8X35 $2.07
Location: 2 Prev | Next Part: 400121277 *Qty: 8 BUSHING $7.77
Location: 3 Prev | Next Part: 400121268 *Qty: 8 RUBBER BUSHING $5.75
Location: 4 Prev | Next Part: WHT001189 *Qty: 8 RUBBER BUSHING 18X30X7 $3.04
Location: 5 Prev | Next Part: WHT001942 *Qty: 8 WASHER $0.90
Location: 6 Prev | Next Part: N10653201 *Qty: 8 SCREW M6X16 $0.90
Location: 7 Prev | Next Part: 400121241 *Qty: 1 LH BRACKET $80.96
Location: 8 Prev | Next Part: 400121240 *Qty: 1 RH BRACKET $92.40
Location: 9 Prev | Next Part: 400121232 *Qty: 1 RH BRACKET $79.19
Location: 10 Prev | Next Part: 400121233 *Qty: 1 LH BRACKET $79.19
Location: 11 Prev | Next Part: 400807945 *Qty: 1 LH CONVEYOR $116.99
Location: 11 Prev | Next Part: 400807946 *Qty: 1 RH CONVEYOR $116.99
Location: 12 Prev | Next Part: 400809963 *Qty: 1 LH CONVEYOR $136.50
Location: 12 Prev | Next Part: 400809964 *Qty: 1 RH CONVEYOR $136.50
Location: 13 Prev | Next Part: N90986803 *Qty: 2 SCREW ST4.2X13.0 $0.90
Location: 14 Prev | Next Part: N0454281 *Qty: 2 CLIP $0.90
Location: 15 Prev | Next Part: N0902324 *Qty: 8 SCREW M6X10 $0.90
Location: 16 Prev | Next Part: N10347004 *Qty: 8 SCREW M6X16 $0.90
Location: 17 Prev | Next Part: WHT002225A *Qty: 6 SCREW M8X16 $1.09
Location: 18 Prev | Next Part: N10653201 *Qty: 4 SCREW M6X16 $0.90
Location: 19 Prev | Next Part: N90780903 *Qty: 4 SCREW M6X16 $0.90
Location: 20 Prev | Next Part: 400121235 *Qty: 1 LH BRACKET $136.38
Location: 20 Prev | Next Part: 400121235A *Qty: 1 RH BRACKET $136.38
Location: 21 Prev | Next Part: 400121253C *Qty: 1 LH WATER RADIATOR $1,387.97
Location: 21 Prev | Next Part: 400121252C *Qty: 1 RH WATER RADIATOR $1,387.97
Location: 22 Prev | Next Part: 4Z7959455M *Qty: 2 ELECTRIC FAN $588.65
Location: 23 Prev | Next Part: 400122193A *Qty: 1 LH SUPPORT $164.33
Location: 23 Prev | Next Part: 400122194A *Qty: 1 RH SUPPORT $164.33
Location: 24 Prev | Next Part: 400807157C *Qty: 1 LH CONVEYOR $230.71
Location: 24 Prev | Next Part: 400807158C *Qty: 1 RH CONVEYOR $417.58
Location: 25 Prev | Next Part: N0902324 *Qty: 4 SCREW M6X10 $0.90
Location: 26 Prev | Next Part: 400260197B *Qty: 1 BRACKET $25.86
Location: 27 Prev | Next Part: N10569501 *Qty: 4 SCREW M5X16 $0.90
Location: 28 Prev | Next Part: N10082911 *Qty: 2 SCREW M6X16 $0.90
Location: 29 Prev | Next Part: 400807265 *Qty: 2 GASKET $8.22
Location: 30 Prev | Next Part: 400121539 *Qty: 2 GASKET $41.54

* Quantity shown indicates the number of pieces used in the diagram.
