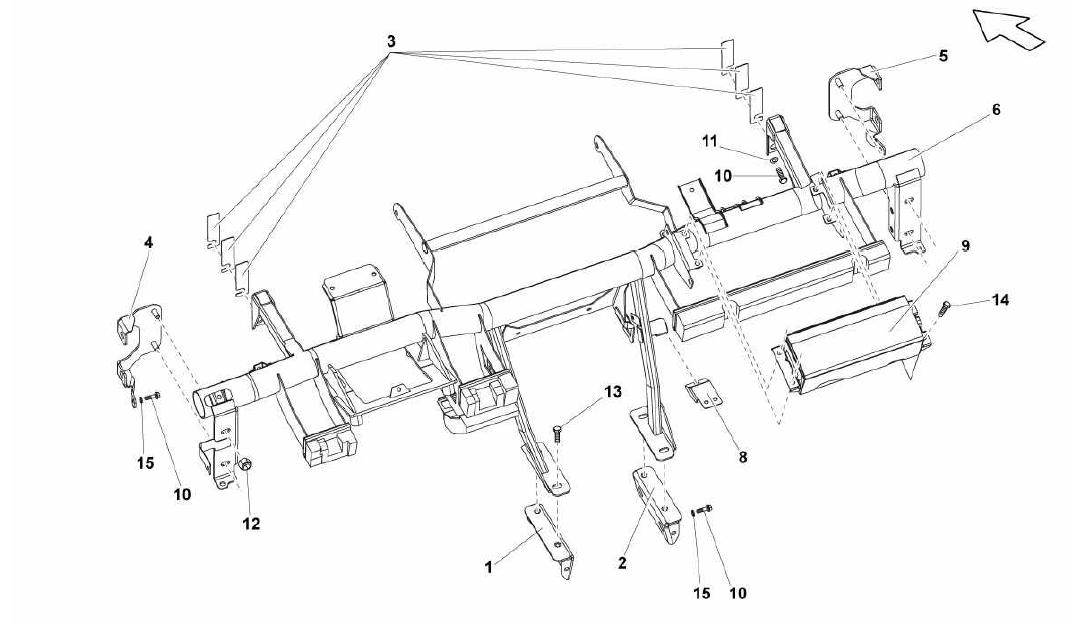

CHASSIS

Go to Split View

CHASSIS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400857195 *Qty: 1 LH BRACKET $13.64
Location: 2 Prev | Next Part: 400857196 *Qty: 1 RH BRACKET $13.64
Location: 3 Prev | Next Part: 400857225 *Qty: 6 SPACER $4.96
Location: 4 Prev | Next Part: 400857245 *Qty: 1 LH BRACKET $12.85
Location: 5 Prev | Next Part: 400857246 *Qty: 1 RH BRACKET $12.85
Location: 6 Prev | Next Part: 401857017A *Qty: 1 CROSS MEMBER $755.85
Location: 8 Prev | Next Part: 401857689 *Qty: 1 BRACKET $10.22
Location: 9 Prev | Next Part: 3D0880204D *Qty: 1 AIR BAG MODULE $1,531.15
Location: 10 Prev | Next Part: N90415403 *Qty: 10 SCREW $0.90
Location: 11 Prev | Next Part: N90057703 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: N0150839 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: N10049303 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: N90708002 *Qty: 4 SCREW M6X14 $0.90
Location: 15 Prev | Next Part: N90899502 *Qty: 8 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
