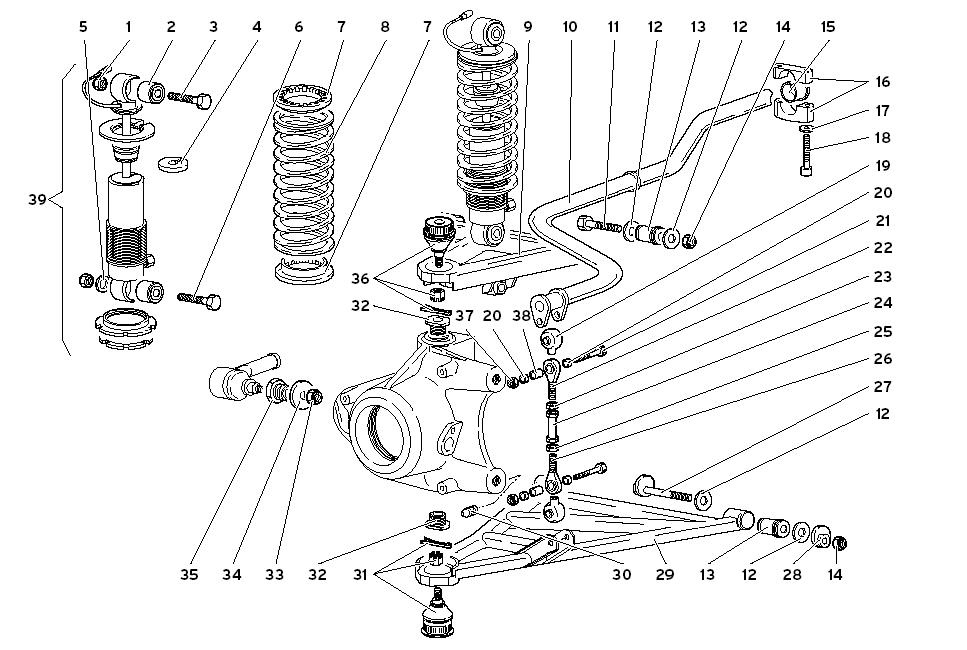

FRONT SUSPENSION

Go to Split View

FRONT SUSPENSION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8201226 *Qty: 4 NUT (DADO) $1.32
Location: 2 Prev | Next Part: 5131666 *Qty: 4 RESILIENT BUSHING (BOCCOLA ELASTICA) Call
Location: 3 Prev | Next Part: 8101269 *Qty: 2 SCREW (VITE) $4.84
Location: 4 Prev | Next Part: 5134315 *Qty: 2 SPACER (DISTANZIALE) $34.09
Location: 5 Prev | Next Part: 8401234 *Qty: 12 WASHER (RONDELLA) $1.54
Location: 6 Prev | Next Part: 5133229 *Qty: 2 SCREW (VITE) $7.17
Location: 7 Prev | Next Part: 5219380 *Qty: 4 RUBBER RING (ANELLO GOMMA) Call
Location: 8 Prev | Next Part: 5133618 *Qty: 2 SPRING (MOLLA) $198.62
Location: 9 Prev | Next Part: 5133345 *Qty: 1 ARM (BRACCIO SUPERIORE SX) $1,619.47
Location: 9 Prev | Next Part: 5133344 *Qty: 1 ARM (BRACCIO SUPERIORE DX) $1,825.18
Location: 10 Prev | Next Part: 5134392 *Qty: 1 TORSION BAR (BARRA TORSIONE) $874.57
Location: 11 Prev | Next Part: 8101269 *Qty: 4 SCREW (VITE) $4.84
Location: 12 Prev | Next Part: 5133488 *Qty: 0 SPACER (DISTANZIALE 1-5 MM) $3.07
Location: 12 Prev | Next Part: 5133170 *Qty: 0 SPACER (DISTANZIALE 1 MM) $2.45
Location: 12 Prev | Next Part: 5133169 *Qty: 0 SPACER (DISTANZIALE 3 MM) $5.10
Location: 12 Prev | Next Part: 5133490 *Qty: 0 SPACER (DISTANZIALE 2-5 MM) $4.69
Location: 12 Prev | Next Part: 5133489 *Qty: 0 SPACER (DISTANZIALE 2 MM) $4.09
Location: 13 Prev | Next Part: 8921206 *Qty: 8 RESILIENT BUSHING (BOCCOLA ELASTICA) $26.30
Location: 14 Prev | Next Part: 8201226 *Qty: 8 NUT (DADO) $1.32
Location: 15 Prev | Next Part: 5238302 *Qty: 2 BUSHING (BOCCOLA) $71.52
Location: 16 Prev | Next Part: 5230258 *Qty: 2 RETAINER (CAVALLOTTO) $212.60
Location: 17 Prev | Next Part: 8410602 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 18 Prev | Next Part: 8700683 *Qty: 4 SCREW (VITE) $0.90
Location: 19 Prev | Next Part: 5109714 *Qty: 4 BOOT (CUFFIA) $17.96
Location: 20 Prev | Next Part: 5227297 *Qty: 8 BUSHING (BOCCOLA) $16.14
Location: 21 Prev | Next Part: 8100807 *Qty: 4 SCREW (VITE) $0.90
Location: 22 Prev | Next Part: 5227296 *Qty: 2 BALL JOINT (GIUNTO SFERICO) Call
Location: 23 Prev | Next Part: 8201035 *Qty: 2 NUT (DADO) $1.27
Location: 24 Prev | Next Part: 5209770 *Qty: 2 TIE ROD (TIRANTE) $108.51
Location: 25 Prev | Next Part: 8201034 *Qty: 2 NUT (DADO) $1.55
Location: 26 Prev | Next Part: 5227295 *Qty: 2 BALL JOINT (GIUNTO SFERICO) $103.00
Location: 27 Prev | Next Part: 52002939 *Qty: 4 CAM SCREW (VITE CON ECCENTRICO) Call
Location: 28 Prev | Next Part: 5231925 *Qty: 4 CAM (ECCENTRICO) Call
Location: 29 Prev | Next Part: 5133038 *Qty: 1 ARM (BRACCIO INFERIORE DX) $1,003.65
Location: 29 Prev | Next Part: 5133039 *Qty: 1 ARM (BRACCIO INFERIORE SX) $1,003.65
Location: 30 Prev | Next Part: 8700606 *Qty: 4 SCREW (VITE) $0.90
Location: 31 Prev | Next Part: 5125860 *Qty: 2 COUPLING (TESTA A SNODO) Call
Location: 32 Prev | Next Part: 5126008 *Qty: 4 BUSHING (BUSSOLA) Call
Location: 33 Prev | Next Part: 8201003 *Qty: 2 NUT (DADO) $3.23
Location: 34 Prev | Next Part: 8401030 *Qty: 2 WASHER (RONDELLA) Call
Location: 35 Prev | Next Part: 51001030 *Qty: 2 BUSHING (BUSSOLA) Call
Location: 36 Prev | Next Part: 5125861 *Qty: 2 COUPLING (TESTA A SNODO) Call
Location: 37 Prev | Next Part: 8200809 *Qty: 4 NUT (DADO) $1.81
Location: 38 Prev | Next Part: 5227298 *Qty: 4 BUSHING (BOCCOLA) $16.70
Location: 39 Prev | Next Part: 5133241 *Qty: 2 SHOCK ABSORBER (AMMORTIZZATORE (LIFTYNG SYS.)) $4,132.41

* Quantity shown indicates the number of pieces used in the diagram.
