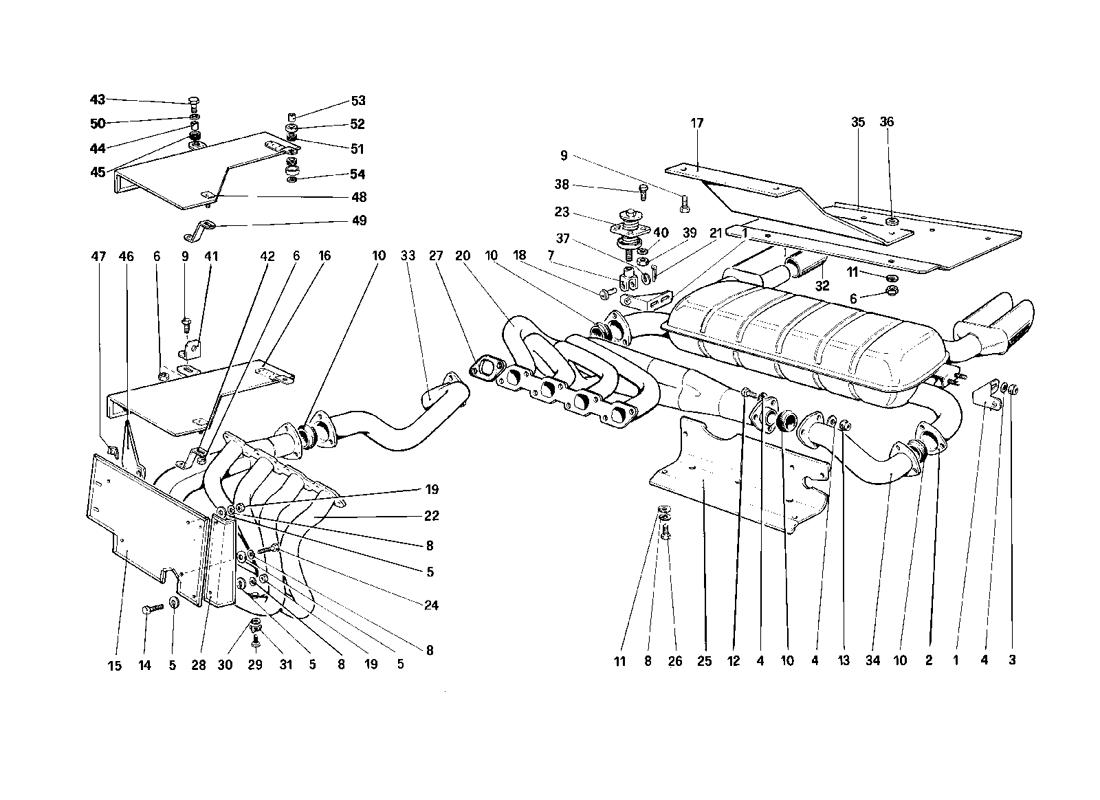

EXHAUST SYSTEM (NOT FOR US AND SA VERSION)

EXHAUST SYSTEM (NOT FOR US AND SA VERSION)

Location Part # Quantity* Description Price Add To Cart
1 108290 2 Bracket Unavailable
2 128026 1 Exhaust silencer
Not for CH and D - For D use no. 129132 - For CH use no. 129412
$3,487.38
3 114748 4 Nut $18.59
4 10519601 28 Washer Superseded
5 12643701 17 Washer Superseded
6 116416 12 Nut $16.00
7 108257 2 Fork on buffer Unavailable
8 106850 16 Washer Superseded
9 10902121 4 Screw
With protection plate no. 118612
Superseded
10 118338 4 Gasket Superseded
11 106744 10 Washer $11.43
12 119632 12 Screw $5.34
13 114748 12 Nut $18.59
14 10902421 5 Screw Superseded
15 130925 1 Protection plate
For CH
$440.35
15 131908 1 (A) Protection plate $612.21
15 124345 1 Protection plate
Not for CH
$579.57
16 118612 1 Protection plate
Until car no. 64805
$288.16
17 118780 1 Protection plate $442.38
18 10033411 2 Pin Superseded
19 15896211 7 Nut Superseded
20 118156 1 Rear exhaust manifold
For CH use no. 129409
$4,153.89
21 10796401 2 Split pin Superseded
22 118155 1 Front exhaust manifold
For CH use no. 129408
$3,071.88
23 106052 2 Buffer for supporting silencer $181.28
24 10902221 2 Screw Unavailable
25 118782 1 Protection plate $45.09
26 10902021 4 Screw Superseded
27 111532 8 Gasket Superseded
28 120904 1 Protection plate
Not for CH
$313.96
29 110860 8 Plug $17.82
30 10298460 8 Washer $0.90
31 12646701 1 Washer
With protection plate no. 128950
Superseded
32 127843 4 Terminal
For D use no. 118774
$49.88
33 118157 1 Intermediate pipe from front manifold to muffler
For CH use no. 129410
$1,295.79
34 118158 1 Intermediate pipe from rear manifold to muffler
For CH use no. 129411
Superseded
35 128196 1 Protection $349.44
36 105924 6 Washer spacer Superseded
37 103167 2 Washer $4.49
38 10977621 8 Screw Superseded
39 15896411 8 Nut Superseded
40 106849 8 Washer Superseded
41 118618 1 Bracket $9.68
42 118619 1 Bracket
With Protection plate no. 118612
$22.21
43 10902621 1 Bolt -
With protection n. 128950
Superseded
44 103550 1 Bush
With protection n. 128950
$6.82
45 103549 1 Fair-lead
With protection n. 128950
$1.50
46 123829 1 Right protection plate
For Cabriolet use no. 122019
$277.36
47 120473 1 Bracket $15.63
48 128950 1 Protection plate -
From car no. 64807
$270.34
49 128952 1 Washer -
With protection n. 128950
$20.62
50 12643701 3 Washer -
With protection n. 128950
Superseded
51 107978 4 Pad
With protection n. 128950
$13.66
52 107979 4 Cup
With protection n. 128950
$13.44
53 107980 2 Bush
With protection n. 128950
$7.31

* Quantity shown indicates the number of pieces used in the diagram.
