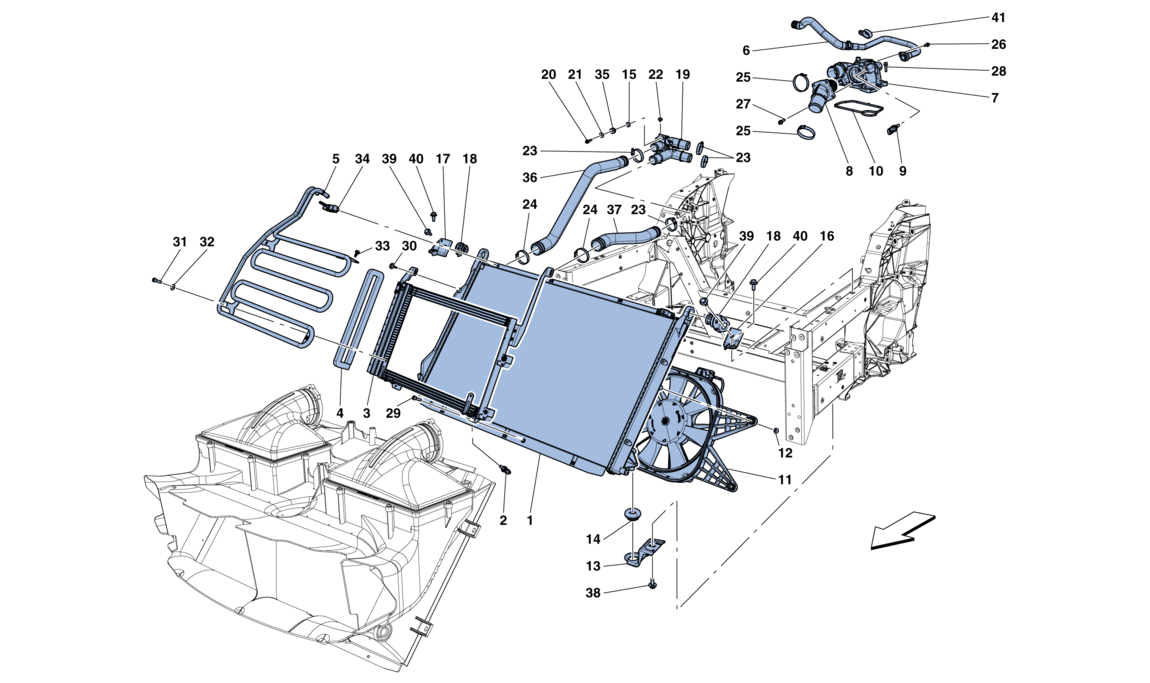

COOLING: RADIATORS AND AIR DUCTS

Location Part # Quantity* Description Price Add To Cart
1 299047 1 WATER RADIATOR Unavailable
2 180137 1 WATER/OIL TEMPERATURE SENSOR $29.17
3 294724 1 AC SYSTEM CONDENSER Unavailable
4 235734 1 RUBBER SHIM $11.46
5 298568 1 POWER STEERING FLUID COOLING COIL $321.18
6 303330 1 COMPL. PIPE FROM ENGINE TO PUMP Unavailable
7 304373 1 WATER THERMOSTAT HOUSING $408.55
8 262913 1 PRESSURE SWITCH/THERMOSTAT $263.84
9 180137 1 WATER/OIL TEMPERATURE SENSOR $29.17
10 295159 1 GASKET $14.83
11 299048 1 ELECTRIC FAN COWL -Applicable for HELE- $1,790.84
11 299622 1 ELECTRIC FAN COWL -Not for HELE- $1,105.79
12 15699804 4 SCREW Unavailable
13 304279 2 BRACKET Unavailable
14 307674 2 RADIATOR MOUNTING BUSH $7.63
15 149707 1 SHIM $1.36
16 305195 1 BRACKET $36.30
17 305194 1 BRACKET $38.81
18 305196 2 MOUNTING $57.20
19 300165 1 WATER DELIVERY AND RETURN HOSE UNION $35.58
20 231621 1 SCREW Unavailable
21 12643724 1 WASHER Superseded
22 14622387 2 CAP $3.63
23 262114 4 COLLAR $1.40
24 262116 2 COLLAR $3.46
25 296345 2 COLLAR -No longer supplied- -Replaced by 13000790- Unavailable
25 13000790 2 SCREW COLLAR $0.91
26 231619 1 SCREW Unavailable
27 231619 4 SCREW Unavailable
28 231620 5 SCREW -M6 X 25- Unavailable
29 16285227 2 SCREW Unavailable
30 15699804 1 SCREW Unavailable
31 14304287 2 SCREW Unavailable
32 12638178 2 WASHER Unavailable
33 242618 2 SCREW Unavailable
34 240630 1 CLIP $1.18
35 103549 1 GROMMET $1.50
36 296736 1 WATER RETURN HOSE $102.94
37 296737 1 WATER DELIVERY HOSE $80.08
38 11628126 2 SCREW -No longer supplied- -Replaced by 82271400- $2.80
38 82271400 2 SCREW $1.46
39 11640521 2 SCREW -No longer supplied- -Replaced by 82271400- $1.63
39 82271400 2 SCREW $1.46
40 11640521 2 SCREW -No longer supplied- -Replaced by 82271400- $1.63
40 82271400 2 SCREW $1.46
41 245834 1 CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
