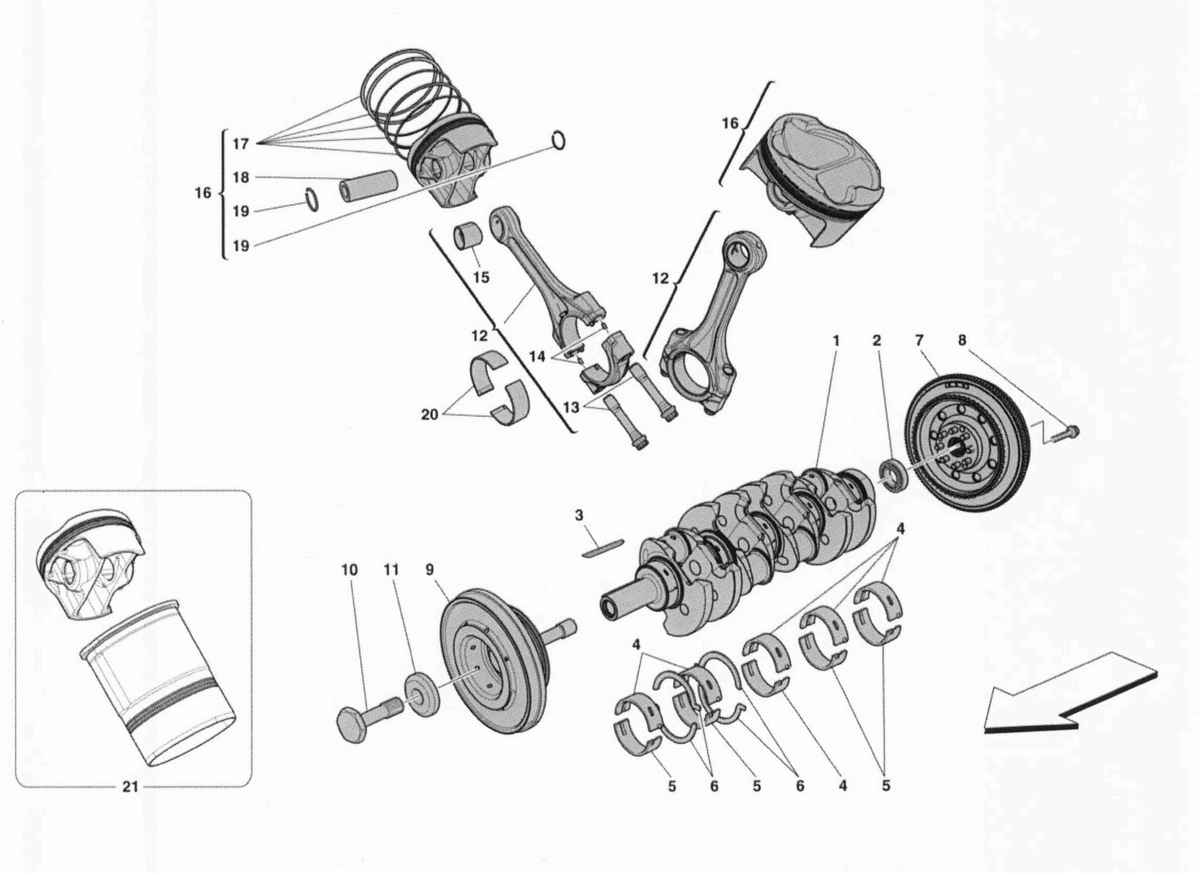

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 275436 *Qty: 1 ALBERO MOTORE $2,786.04
Location: 2 Prev | Next Part: 103877 *Qty: 1 BEARING $34.38
Location: 3 Prev | Next Part: 186201 *Qty: 1 LINGUETTA ALBERO MOTORE $1.26
Location: 4 Prev | Next Part: 268864 *Qty: 6 HALF BEARING UPPER -Blu- -Lead free- Call
Location: 4 Prev | Next Part: 268865 *Qty: 6 HALF BEARING UPPER -Giallo- -Lead free- Call
Location: 4 Prev | Next Part: 268866 *Qty: 6 HALF BEARING UPPER -Verde- -Lead free- Call
Location: 5 Prev | Next Part: 268870 *Qty: 6 HALF BEARING LOWER -Giallo- -Lead free- Call
Location: 5 Prev | Next Part: 268871 *Qty: 6 HALF BEARING LOWER -Verde- -Lead free- Call
Location: 5 Prev | Next Part: 268869 *Qty: 6 HALF BEARINGLOWER -Blu- -Lead free- Call
Location: 6 Prev | Next Part: 261727 *Qty: 4 RASAMENTO MOTORE -Lead free- -Valid for EU GS. UK- $11.23
Location: 7 Prev | Next Part: 256341 *Qty: 1 VOLANO MOTORE DAMPER $2,172.89
Location: 8 Prev | Next Part: 229907 *Qty: 8 SCREW SERRAGGIO $12.15
Location: 9 Prev | Next Part: 266912 *Qty: 1 SMORZATORE TORSIONALE $718.56
Location: 10 Prev | Next Part: 196216 *Qty: 1 SCREW FISSAGGIO SMORZATORE $43.53
Location: 11 Prev | Next Part: 263683 *Qty: 1 WASHER Call
Location: 12 Prev | Next Part: 300663 *Qty: 8 BIELLA E CAPPELLO CPL. -Lead free- Call
Location: 13 Prev | Next Part: 281320 *Qty: 16 SCREW -Lead free- Call
Location: 14 Prev | Next Part: 292751 *Qty: 16 SPINA CENTRAGGIO Call
Location: 15 Prev | Next Part: 300758 *Qty: 8 BOCCOLA Call
Location: 16 Prev | Next Part: 300383 *Qty: 4 PISTONE CPL. DI SEGMENTI BANCATA SX. Call
Location: 16 Prev | Next Part: 300382 *Qty: 4 PISTONE CPL. DISEGMENTIBANCATA DX. Call
Location: 17 Prev | Next Part: 263328 *Qty: 8 SERIE CPL. SEGMENTI PISTONE $241.57
Location: 18 Prev | Next Part: 198260 *Qty: 8 SPINOTTO PER PISTONE $55.60
Location: 19 Prev | Next Part: 257919 *Qty: 16 ANELLO D''ARRESTO $10.17
Location: 20 Prev | Next Part: 261719 *Qty: 16 HALF BEARING BIELLA -Blu- -Lead free- $19.87
Location: 20 Prev | Next Part: 261720 *Qty: 16 HALF BEARING BIELLA -Nero- -Lead free- $19.87
Location: 20 Prev | Next Part: 261718 *Qty: 16 HALF BEARING BIELLA -Rosso- -Lead free- $19.87
Location: 20 Prev | Next Part: 262987 *Qty: 16 HALF BEARING BIELLA-Rosa- -Lead free- Call

* Quantity shown indicates the number of pieces used in the diagram.
