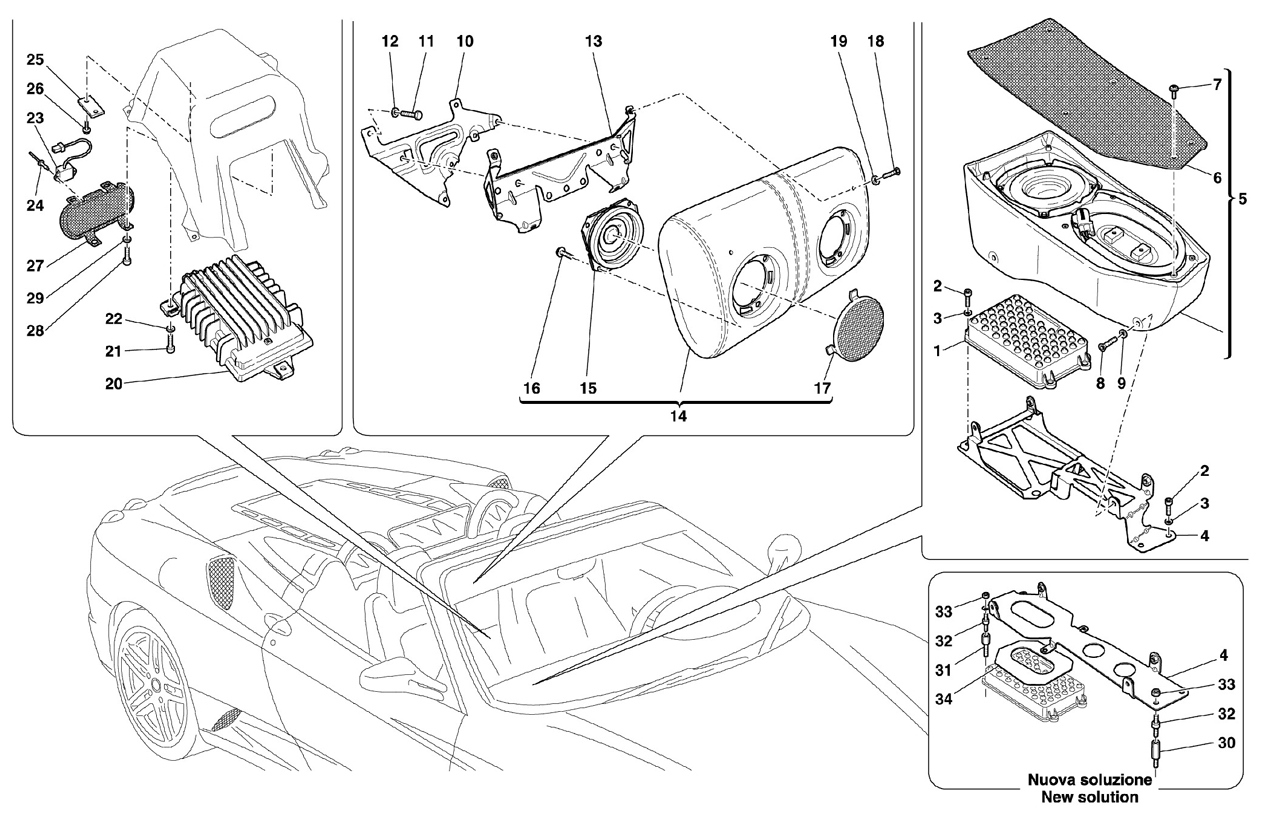

POWERED HI FI BOSE SYSTEM

Go to Split View

POWERED HI FI BOSE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 233478 *Qty: 1 BASS-BOX BOSE AMPLIFIER $2,234.45
Location: 2 Prev | Next Part: 14358624 *Qty: 6 SCREW -Valid till Ass. Nr. 74795- Call
Location: 3 Prev | Next Part: 12638107 *Qty: 6 SHER -Valid till Ass. Nr. 74795- $1.50
Location: 4 Prev | Next Part: 80409000 *Qty: 1 BRACKET -Valid till Ass. Nr. 74795- $136.13
Location: 4 Prev | Next Part: 80946800 *Qty: 1 BRACKET -Valid from Ass. Nr. 74796- Call
Location: 5 Prev | Next Part: 801991 *Qty: 1 BASS-BOX BOSE MOULDING Call
Location: 6 Prev | Next Part: 80199300 *Qty: 1 GRILL Call
Location: 7 Prev | Next Part: 16085177 *Qty: 6 SCREW Call
Location: 8 Prev | Next Part: 68927900 *Qty: 4 SCREW $0.90
Location: 9 Prev | Next Part: 12611107 *Qty: 4 WASHER $1.01
Location: 10 Prev | Next Part: 80569100 *Qty: 1 R.H. INSERT Call
Location: 10 Prev | Next Part: 80569300 *Qty: 1 L.H. INSERT Call
Location: 11 Prev | Next Part: 10902124 *Qty: 6 SCREW $0.90
Location: 12 Prev | Next Part: 10519424 *Qty: 6 WASHER Call
Location: 13 Prev | Next Part: 80481600 *Qty: 2 SUPPORTING BRACKET Call
Location: 14 Prev | Next Part: 804829 *Qty: 1 CPL. R.H. TWIDDLER CONTAINER Call
Location: 14 Prev | Next Part: 804830 *Qty: 1 CPL. L.H. TWIDDLER CONTAINER Call
Location: 15 Prev | Next Part: 227270 *Qty: 4 LOUD SPEAKER TWIDDLER $87.77
Location: 16 Prev | Next Part: 16082777 *Qty: 16 SCREW Call
Location: 17 Prev | Next Part: 80584300 *Qty: 4 PLATE $101.74
Location: 18 Prev | Next Part: 68927400 *Qty: 16 SCREW Call
Location: 19 Prev | Next Part: 12611107 *Qty: 16 WASHER $1.01
Location: 20 Prev | Next Part: 233479 *Qty: 1 BOSE 8800 AMPLIFIER $3,098.52
Location: 21 Prev | Next Part: 14305321 *Qty: 3 SCREW $0.90
Location: 22 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 23 Prev | Next Part: 192522 *Qty: 1 AUDIOPILOT BOSE MICROPHONE $78.56
Location: 24 Prev | Next Part: 61756800 *Qty: 2 RIVET $0.90
Location: 25 Prev | Next Part: 80552200 *Qty: 1 CLAMP FOR CABLE Call
Location: 26 Prev | Next Part: 16082977 *Qty: 2 SCREW $9.55
Location: 27 Prev | Next Part: 80554000 *Qty: 1 GRILL Call
Location: 28 Prev | Next Part: 14418924 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 13550077 *Qty: 4 WASHER $4.44
Location: 30 Prev | Next Part: 80858000 *Qty: 2 STUD -Valid from Ass. Nr. 74796- Call
Location: 31 Prev | Next Part: 80858100 *Qty: 4 STUD -Valid from Ass. Nr. 74796- Call
Location: 32 Prev | Next Part: 80858400 *Qty: 6 SUPPORT -Valid from Ass. Nr. 74796- Call
Location: 33 Prev | Next Part: 12577821 *Qty: 6 NUT -Valid from Ass. Nr. 74796- $0.90
Location: 34 Prev | Next Part: 81017800 *Qty: 1 GASKET Call

* Quantity shown indicates the number of pieces used in the diagram.
