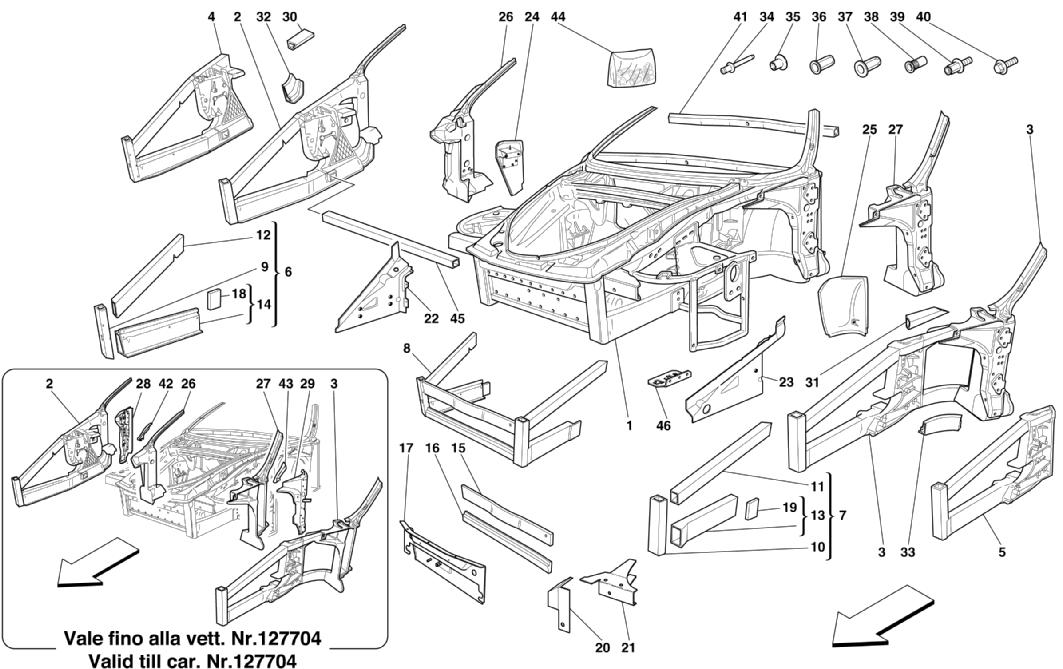

FRAME - FRONT ELEMENTS STRUCTURES AND PLATES

Go to Split View

FRAME - FRONT ELEMENTS STRUCTURES AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67386200 *Qty: 1 COMPLETE FRONT FRAME -Not for GD -Valid from car Nr. 127705 -Not for USA and CDN from car 12989 Call
Location: 1 Prev | Next Part: 66452000 *Qty: 1 COMPLETE FRONT FRAME -Not for GD -Valid from car Nr. 120069 to car Nr. 127704 Call
Location: 1 Prev | Next Part: 65940100 *Qty: 1 COMPLETE FRONT FRAME -Not for GD -Valid till car Nr. 120068 Call
Location: 1 Prev | Next Part: 67387300 *Qty: 1 COMPLETE FRONT FRAME -Valid for GD -Valid from car Nr. 127705 Call
Location: 1 Prev | Next Part: 66451200 *Qty: 1 COMPLETE FRONT FRAME -Valid for GD -Valid till car Nr. 120193 Call
Location: 1 Prev | Next Part: 67632100 *Qty: 1 COMPLETE FRONT FRAME -Valid only for USA and CDN from car 129895 -See Table 102 Pos. 1 Call
Location: 1 Prev | Next Part: 66452100 *Qty: 1 COMPLETE FRONT FRAME -Valid for GD -Valid from car Nr. 120194 to car Nr. 127704 Call
Location: 2 Prev | Next Part: 65940700 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Not for GD -Valid till car Nr. 120068 Call
Location: 2 Prev | Next Part: 66452300 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Valid for GD -Valid from car Nr. 120069 to car Nr. 127704 Call
Location: 2 Prev | Next Part: 67386700 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Not for GD -Valid from car Nr. 127705 Call
Location: 2 Prev | Next Part: 66451300 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Valid for GD -Valid till car Nr. 120193 Call
Location: 2 Prev | Next Part: 67410300 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Valid for GD -Valid from car Nr. 127705 Call
Location: 2 Prev | Next Part: 66452200 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME -Not for GD -Valid from car Nr. 120069 to car Nr. 127704 Call
Location: 3 Prev | Next Part: 65940800 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Not for GD -Valid till car Nr. 120068 Call
Location: 3 Prev | Next Part: 66452400 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Not for GD -Valid from car Nr. 120069 to car Nr. 127704 Call
Location: 3 Prev | Next Part: 66451400 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Valid for GD -Valid till car Nr. 120193 Call
Location: 3 Prev | Next Part: 67410600 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Not for GD -Valid from car Nr. 127705 Call
Location: 3 Prev | Next Part: 66452500 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Valid for GD -Valid from car Nr. 120069 to car Nr. 127704 Call
Location: 3 Prev | Next Part: 67410700 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME -Valid for GD -Valid from car Nr. 127705 Call
Location: 4 Prev | Next Part: 66452600 *Qty: 1 R.H. FRONT LATERAL SPRAG -Valid from car Nr. 120069 for GS and 120194 for GD Call
Location: 4 Prev | Next Part: 65940500 *Qty: 1 R.H. FRONT LATERAL SPRAG -Valid till car Nr. 120068 for GS and 120193 for GD Call
Location: 5 Prev | Next Part: 67040100 *Qty: 1 L.H. FRONT LATERAL SPRAG -Valid for GD -Valid till car Nr. 120193 Call
Location: 5 Prev | Next Part: 66452800 *Qty: 1 L.H. FRONT LATERAL SPRAG -Not for GD -Valid from car Nr. 120069 Call
Location: 5 Prev | Next Part: 65940600 *Qty: 1 L.H. FRONT LATERAL SPRAG -Not for GD -Valid till car Nr. 120068 Call
Location: 5 Prev | Next Part: 67040200 *Qty: 1 L.H. FRONT LATERAL SPRAG -Valid for GD -Valid from car Nr. 120194 Call
Location: 6 Prev | Next Part: 65940300 *Qty: 1 COMPLETE R.H. FRONT LATERAL FRAME Call
Location: 7 Prev | Next Part: 65940400 *Qty: 1 COMPLETE L.H. FRONT LATERAL FRAME Call
Location: 8 Prev | Next Part: 65940200 *Qty: 1 COMPLETE FRONT FRAME Call
Location: 9 Prev | Next Part: 166202 *Qty: 1 R.H. FRONT BUMPER PILLAR Call
Location: 10 Prev | Next Part: 166102 *Qty: 1 L.H. FRONT BUMPER PILLAR Call
Location: 11 Prev | Next Part: 166105 *Qty: 1 L.H. FRONT UPPER FRAME Call
Location: 12 Prev | Next Part: 166205 *Qty: 1 R.H. FRONT UPPER FRAME Call
Location: 13 Prev | Next Part: 177481 *Qty: 1 L.H. FRONT CRUSH-BOX Call
Location: 13 Prev | Next Part: 166103 *Qty: 1 L.H. FRONT LOWER FRAME -Not as spare part -Replaced by 177481 Call
Location: 14 Prev | Next Part: 166203 *Qty: 1 R.H. FRONT LOWER FRAME -Not as spare part -Replaced by 177482 Call
Location: 14 Prev | Next Part: 177482 *Qty: 1 R.H. FRONT CRUSH-BOX Call
Location: 15 Prev | Next Part: 166301 *Qty: 1 FRONT UPPER CROSS MEMBER $231.95
Location: 16 Prev | Next Part: 183816 *Qty: 1 FRONT LOWER CROSS MEMBER $178.50
Location: 16 Prev | Next Part: 166357 *Qty: 1 FRONT LOWER CROSS MEMBER -Not as spare part -Replaced by 183816 Call
Location: 17 Prev | Next Part: 65393500 *Qty: 1 TRUNK COMPARTMENT FRONT WALL Call
Location: 18 Prev | Next Part: 166291 *Qty: 1 R.H. FRONT REINFORCEMENT Call
Location: 19 Prev | Next Part: 166191 *Qty: 1 L.H. FRONT REINFORCEMENT $15.38
Location: 20 Prev | Next Part: 177467 *Qty: 1 R.H. BRACKET -Not as spare part -Replaced by 66395511 Call
Location: 20 Prev | Next Part: 66395411 *Qty: 1 L.H. BRACKET Call
Location: 20 Prev | Next Part: 66395511 *Qty: 1 R.H. BRACKET Call
Location: 20 Prev | Next Part: 177466 *Qty: 1 L.H. BRACKET -Not as spare part -Replaced by 66395411 Call
Location: 21 Prev | Next Part: 166170 *Qty: 1 L.H. BRAKET FOR FRONT BUMPER FIXING Call
Location: 21 Prev | Next Part: 166270 *Qty: 1 R.H. BRAKET FOR FRONT BUMPER FIXING Call
Location: 22 Prev | Next Part: 65152700 *Qty: 1 R.H. FRONT SIDE WALL Call
Location: 23 Prev | Next Part: 65152800 *Qty: 1 L.H. FRONT SIDE WALL Superseded
Location: 24 Prev | Next Part: 179433 *Qty: 1 R.H. PLATE -Valid for GD Call
Location: 24 Prev | Next Part: 175738 *Qty: 1 R.H. PLATE -Not for GD Call
Location: 25 Prev | Next Part: 175737 *Qty: 1 L.H. PLATE -Not for GD Call
Location: 25 Prev | Next Part: 179432 *Qty: 1 L.H. PLATE -Valid for GD Call
Location: 26 Prev | Next Part: 65941600 *Qty: 1 COMPLETE R.H. DOOR PILLAR -Valid till car Nr. 127704 Call
Location: 26 Prev | Next Part: 67385900 *Qty: 1 COMPLETE R.H. DOOR PILLAR -Valid from car Nr. 127705 Call
Location: 27 Prev | Next Part: 67385800 *Qty: 1 COMPLETE L.H. DOOR PILLAR -Valid from car Nr. 127705 Call
Location: 27 Prev | Next Part: 65941700 *Qty: 1 COMPLETE L.H. DOOR PILLAR -Valid till car Nr. 127704 Call
Location: 28 Prev | Next Part: 64768200 *Qty: 1 COMPLETE FRONT R.H. PILLAR -Valid till car Nr. 127704 Call
Location: 29 Prev | Next Part: 64768300 *Qty: 1 COMPLETE FRONT L.H. PILLAR -Valid till car Nr. 127704 Call
Location: 30 Prev | Next Part: 166207 *Qty: 1 R.H. UPPER FRAME Call
Location: 31 Prev | Next Part: 166107 *Qty: 1 L.H. UPPER FRAME Call
Location: 32 Prev | Next Part: 166215 *Qty: 1 R.H. LOWER FRAME Call
Location: 33 Prev | Next Part: 166115 *Qty: 1 L.H. LOWER FRAME Call
Location: 34 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 34 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 35 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 36 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.22
Location: 36 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 36 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.60
Location: 36 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.01
Location: 36 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 37 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 38 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.79
Location: 38 Prev | Next Part: 179299 *Qty: 0 RIVET M10 BLIND $2.04
Location: 38 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 38 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 38 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 39 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 40 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 41 Prev | Next Part: 181310 *Qty: 1 UNDER WINDSCREEN CROSS MEMBER -Valid for GD Call
Location: 41 Prev | Next Part: 166310 *Qty: 1 UNDER WINDSCREEN CROSS MEMBER -Not for GD Call
Location: 42 Prev | Next Part: 65160200 *Qty: 1 FRONT PILLAR R.H. UPPER CARPET SHIELD -Valid till car Nr. 127704 Call
Location: 43 Prev | Next Part: 65160300 *Qty: 1 FRONT PILLAR L.H. UPPER CARPET SHIELD -Valid till car Nr. 127704 Call
Location: 44 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16
Location: 45 Prev | Next Part: 166314 *Qty: 1 CROSS MEMBER Call
Location: 46 Prev | Next Part: 65013100 *Qty: 3 BRACKET FOR CONTROL UNITS FIXING $142.12

* Quantity shown indicates the number of pieces used in the diagram.
