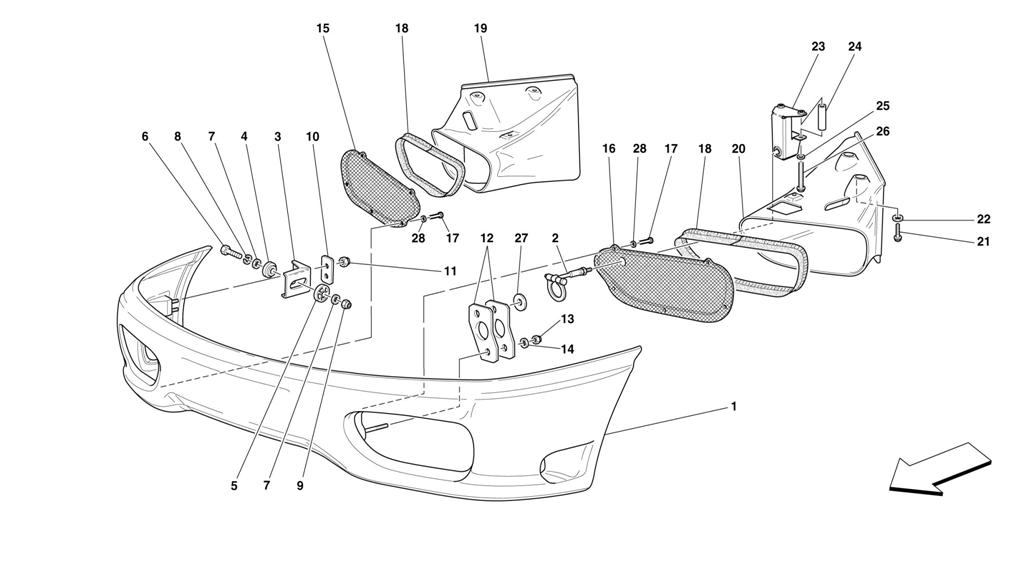

FRONT BUMPER

Go to Split View

FRONT BUMPER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65251610 *Qty: 1 FRONT BUMPER $823.62
Location: 2 Prev | Next Part: 181454 *Qty: 1 TOW HOOK $551.11
Location: 3 Prev | Next Part: 62973000 *Qty: 2 BUMPER LATERAL FIXING BRACKET $32.31
Location: 4 Prev | Next Part: 62128200 *Qty: 2 EXTERNAL SMALL BLOCK $2.33
Location: 5 Prev | Next Part: 62128300 *Qty: 2 INTERNAL SMALL BLOCK $1.47
Location: 6 Prev | Next Part: 11307021 *Qty: 2 SCREW $0.95
Location: 7 Prev | Next Part: 12646801 *Qty: 4 WASHER $1.70
Location: 8 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 12574521 *Qty: 2 NUT $0.90
Location: 10 Prev | Next Part: 62126600 *Qty: 2 PLATE $2.26
Location: 11 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 65311700 *Qty: 4 SPACER PLATE $51.80
Location: 13 Prev | Next Part: 12574521 *Qty: 4 NUT $0.90
Location: 14 Prev | Next Part: 12646801 *Qty: 8 WASHER $1.70
Location: 15 Prev | Next Part: 63330200 *Qty: 1 R.H. FRONT BUMPER GRILL $305.44
Location: 16 Prev | Next Part: 63330300 *Qty: 1 L.H. FRONT BUMPER GRILL $305.44
Location: 17 Prev | Next Part: 13272011 *Qty: 10 SCREW $60.79
Location: 18 Prev | Next Part: 66181100 *Qty: 2 GASKET $32.59
Location: 19 Prev | Next Part: 65985400 *Qty: 1 R.H. AIR INLET $1,959.48
Location: 20 Prev | Next Part: 65986800 *Qty: 1 L.H. AIR INLET $200.05
Location: 21 Prev | Next Part: 14778818 *Qty: 8 SCREW Call
Location: 22 Prev | Next Part: 12644424 *Qty: 8 WASHER $0.90
Location: 23 Prev | Next Part: 65311800 *Qty: 1 TOW HOOK BRACKET $315.78
Location: 24 Prev | Next Part: 65802300 *Qty: 2 SPACER $5.76
Location: 25 Prev | Next Part: 14447125 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 16297824 *Qty: 2 SCREW $2.06
Location: 27 Prev | Next Part: 65921200 *Qty: 0 SPACER -Possible fitting $3.12
Location: 28 Prev | Next Part: 14496204 *Qty: 10 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
