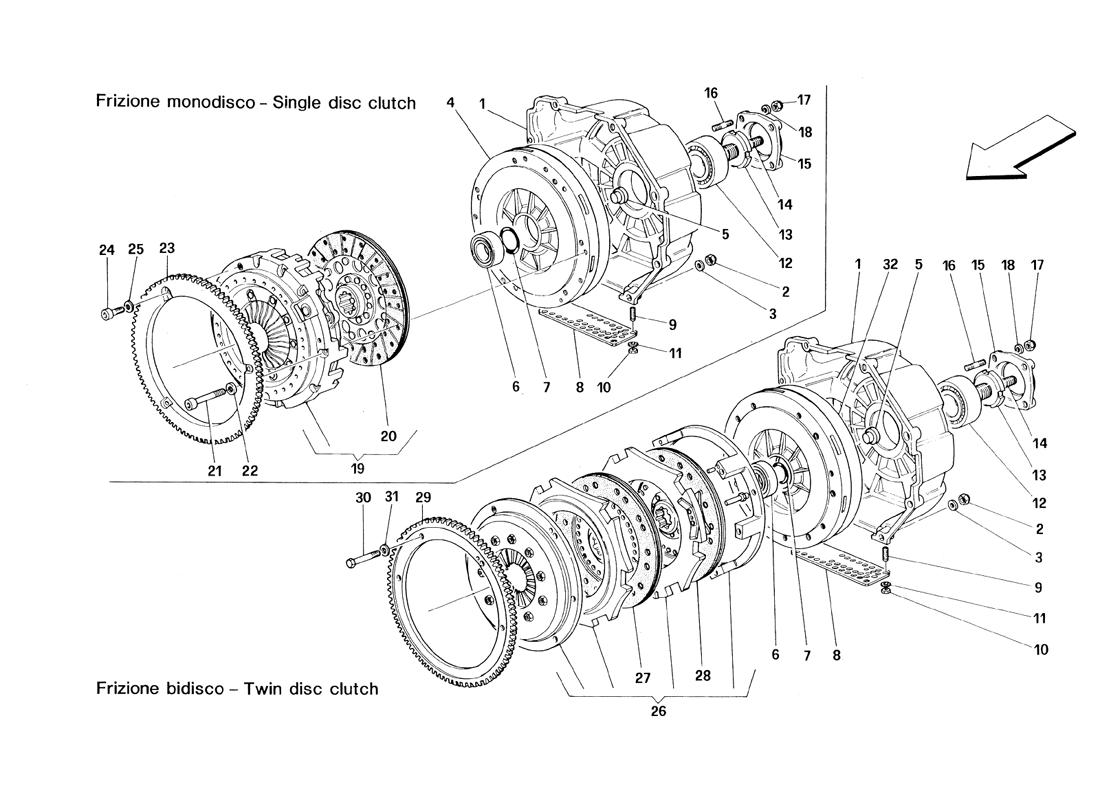

CLUTCH - CONTROLS

Go to Split View

CLUTCH - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 143279 *Qty: 1 COMPLETE CLUTCH HOUSING
Valid till engine No. 24980
$1,582.51
Location: - Prev | Next Part: 150463 *Qty: 1 COMPLETE CLUTCH HOUSING
Valid from engine Nr. 24981
$1,077.36
Location: 1 Prev | Next Part: - *Qty: 1 CLUTCH HOUSING
Not as spare part With the assembly 143279 and 150463
Call
Location: 2 Prev | Next Part: 16100811 *Qty: 6 NUT Superseded
Location: 3 Prev | Next Part: 12601374 *Qty: 6 WASHER $0.90
Location: 4 Prev | Next Part: 146572 *Qty: 1 FLYWHEEL Call
Location: 5 Prev | Next Part: 142989 *Qty: 1 SPACER $37.70
Location: 6 Prev | Next Part: 131051 *Qty: 1 BEARING $18.85
Location: 7 Prev | Next Part: 104984 *Qty: 1 O.R. GASKET $1.69
Location: 8 Prev | Next Part: 136058 *Qty: 1 DRILLED SHEET $63.77
Location: 9 Prev | Next Part: 13539021 *Qty: 4 STUD Superseded
Location: 10 Prev | Next Part: 15896470 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 12601179 *Qty: 4 WASHER Superseded
Location: 12 Prev | Next Part: 136957 *Qty: 1 BEARING $279.12
Location: 13 Prev | Next Part: 136879 *Qty: 1 SPECIAL SCREW $57.00
Location: 14 Prev | Next Part: 13813421 *Qty: 1 SCREW $9.94
Location: 15 Prev | Next Part: 139184 *Qty: 1 REAR SMALL COVER Superseded
Location: 16 Prev | Next Part: 12354524 *Qty: 4 STUD $37.74
Location: 17 Prev | Next Part: 16100311 *Qty: 4 NUT Call
Location: 18 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 138978 *Qty: 1 COMPLETE CLUTCH
"VALEO" type
Superseded
Location: 19 Prev | Next Part: 146407 *Qty: 1 COMPLETE CLUTCH
"AP"type
$1,500.00
Location: 20 Prev | Next Part: 138979 *Qty: 1 CLUTCH DISC
"VALEO" type
Call
Location: 20 Prev | Next Part: 146409 *Qty: 1 CLUTCH DISC
"AP" type
Call
Location: 21 Prev | Next Part: 14306031 *Qty: 9 SCREW Superseded
Location: 22 Prev | Next Part: 10569279 *Qty: 9 WASHER $0.90
Location: 23 Prev | Next Part: 144015 *Qty: 1 RING GEAR $945.77
Location: 24 Prev | Next Part: 14305721 *Qty: 3 SCREW Superseded
Location: 25 Prev | Next Part: 10569279 *Qty: 3 WASHER $0.90
Location: 26 Prev | Next Part: 136800 *Qty: 1 COMPLETE CLUTCH $2,210.00
Location: 27 Prev | Next Part: 136805 *Qty: 1 CLUTCH DISC AT PRESSURE PLATE SIDE Call
Location: 28 Prev | Next Part: 136804 *Qty: 1 CLUTCH DISC AT FLYWHEEL SIDE Call
Location: 29 Prev | Next Part: 140413 *Qty: 1 RING GEAR $317.51
Location: 30 Prev | Next Part: 16044431 *Qty: 6 SCREW $0.90
Location: 31 Prev | Next Part: 12601374 *Qty: 6 WASHER $0.90
Location: 32 Prev | Next Part: 146571 *Qty: 1 FLYWHEEL $7,629.45

* Quantity shown indicates the number of pieces used in the diagram.
