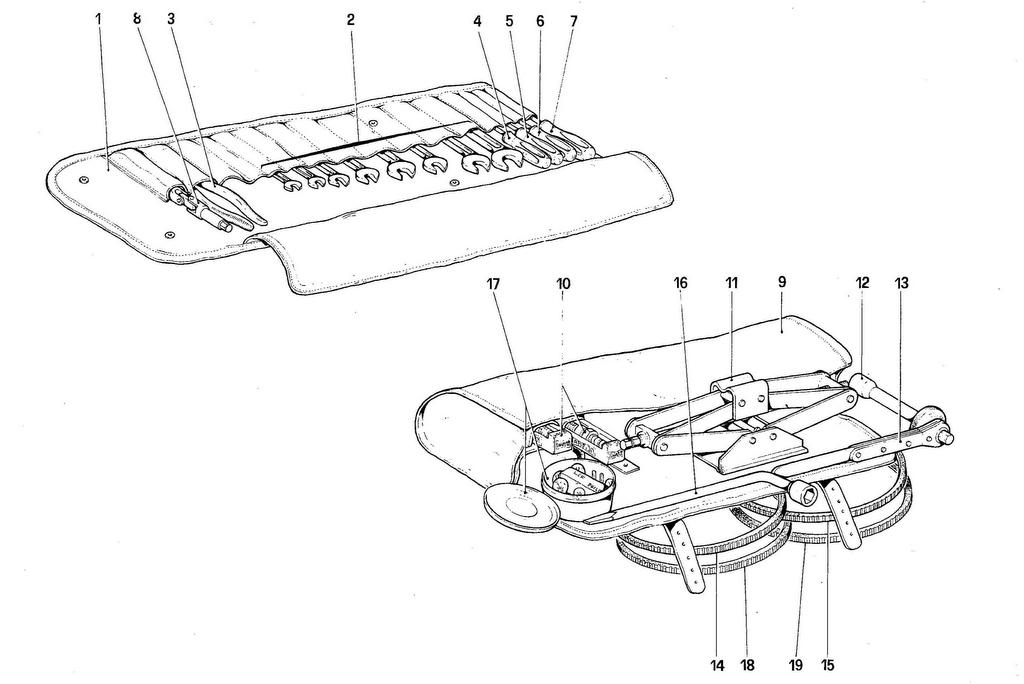

TOOL KIT

Go to Split View

TOOL KIT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 106876 *Qty: 1 Box. containing: Call
Location: 2 Prev | Next Part: 114440 *Qty: 8 Set of spanner Call
Location: 3 Prev | Next Part: 101515 *Qty: 1 Pliers. 180 mm. Call
Location: 4 Prev | Next Part: 101516 *Qty: 1 Screwdriver. 150 mm. Call
Location: 5 Prev | Next Part: 101517 *Qty: 1 Screwdriver. 120 mm. Call
Location: 6 Prev | Next Part: 101518 *Qty: 1 Philips screwdriver up to 0 4 mm. Call
Location: 7 Prev | Next Part: 101519 *Qty: 1 Philips screwdriver up to 0 5 to 9 mm. Call
Location: 8 Prev | Next Part: 114438 *Qty: 1 Spanner for spark plug Call
Location: 9 Prev | Next Part: 118345 *Qty: 1 Bag. black imitation leather containing first aid tools: Assembly with 2 individual belts Superseded
Location: 9 Prev | Next Part: 124375 *Qty: 1 Bag. black imitation leather containing first aid tools: Assembly with single belt Call
Location: 10 Prev | Next Part: 119492 *Qty: 2 Sparking plugs (CHAMPION N 6 GY) Superseded
Location: 11 Prev | Next Part: 106530 *Qty: 1 Jack. pipe 232 F Superseded
Location: 12 Prev | Next Part: 106531 *Qty: 1 Socket spanner for jack Call
Location: - Prev | Next Part: *Qty: 0 Call
Location: 13 Prev | Next Part: 106532 *Qty: 1 Ratchet spanner. zinc - plated $9.60
Location: 14 Prev | Next Part: 105046 *Qty: 1 Compressor belt $40.00
Location: 15 Prev | Next Part: 107971 *Qty: 1 Water pump and alternator belt Assembly with single belt $42.04
Location: 16 Prev | Next Part: 106877 *Qty: 1 Spanner for wheels Superseded
Location: 17 Prev | Next Part: - *Qty: 1 Box. containing: Call
Location: - Prev | Next Part: 14145890 *Qty: 1 Bulb. 12V - 4W (SAE type 518-2 cp) Call
Location: - Prev | Next Part: 14145990 *Qty: 1 Bulb. 12V-5W (SAE type 67-4 cp) Call
Location: - Prev | Next Part: 14146090 *Qty: 1 Bulb. 12V-21W (SAE type 1073 32 cp) Call
Location: - Prev | Next Part: 14146190 *Qty: 1 Bulb. 12V 5/12W (SAE type 1034- 3/32 cp) Call
Location: - Prev | Next Part: 101525 *Qty: 1 Bulb. 12V 3W Call
Location: - Prev | Next Part: 10858090 *Qty: 2 8 amp.. fuse Call
Location: - Prev | Next Part: 11048990 *Qty: 2 16 amp.. fuse Call
Location: 18 Prev | Next Part: 121655 *Qty: 1 Water pump belt Assembly with 2 individual belts $34.33
Location: 19 Prev | Next Part: 123709 *Qty: 1 Alternator belt Assembly with 2 individual belts Superseded

* Quantity shown indicates the number of pieces used in the diagram.
