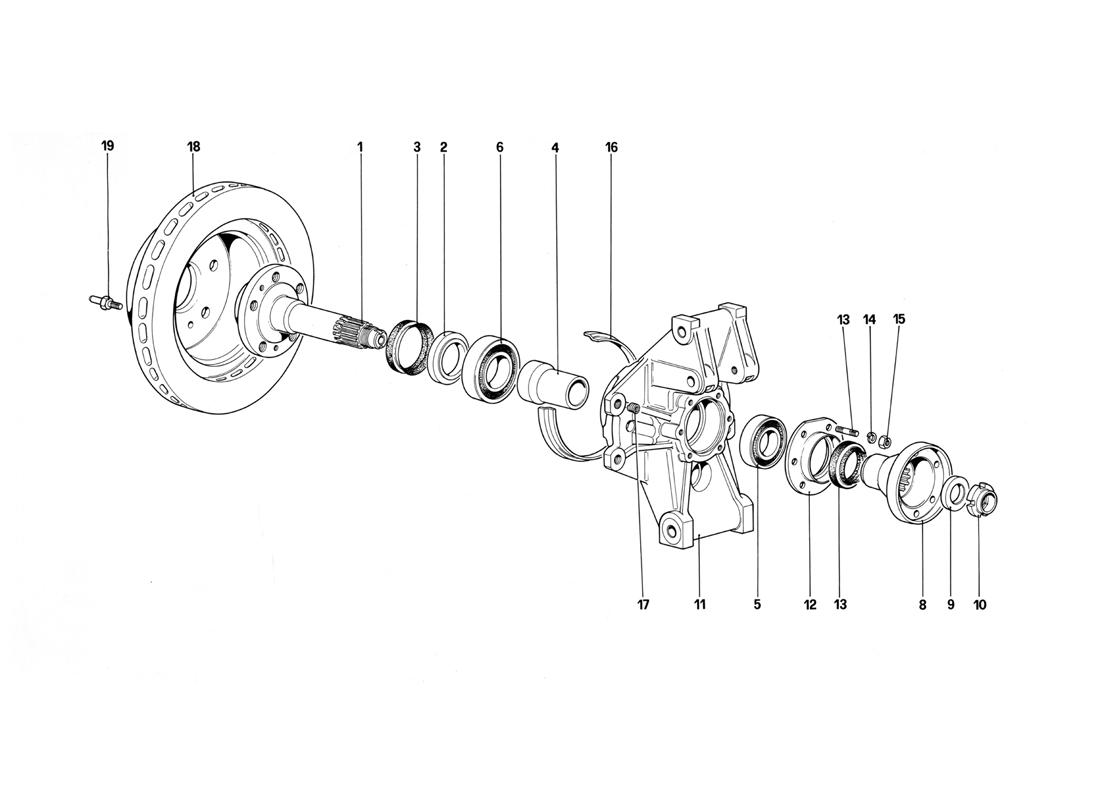

REAR SUSPENSION - BRAKE DISC (STARTING FROM CAR NO.75997)

Go to Split View

REAR SUSPENSION - BRAKE DISC (STARTING FROM CAR NO.75997)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 134780 *Qty: 2 Shaft with bub
After exhaustion use no. 145553
Superseded
Location: 2 Prev | Next Part: 118190 *Qty: 2 Spacer $73.55
Location: 3 Prev | Next Part: 110579 *Qty: 2 Centrifugal ring $8.24
Location: 4 Prev | Next Part: 134769 *Qty: 2 Spacer
After exhaustion use no. 145554
$287.29
Location: 5 Prev | Next Part: 125934 *Qty: 2 Inner bearing
After exhaustion use no. 145805
Superseded
Location: 6 Prev | Next Part: 125935 *Qty: 2 Outer bearing
After exhaustion use no. 144807
Superseded
Location: 7 Prev | Next Part: 115968 *Qty: 2 Scaling ring $131.59
Location: 8 Prev | Next Part: 119372 *Qty: 2 Axle shaft flange $209.44
Location: 9 Prev | Next Part: 105511 *Qty: 2 Washer $14.71
Location: 10 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 11 Prev | Next Part: 134887 *Qty: 2 Rear bub holder $1,361.43
Location: 12 Prev | Next Part: 125976 *Qty: 2 Bearing retaining flange $66.54
Location: 13 Prev | Next Part: 13543321 *Qty: 12 Stud Superseded
Location: 14 Prev | Next Part: 127496 *Qty: 12 Washer $0.90
Location: 15 Prev | Next Part: 16100821 *Qty: 12 Nut $3.57
Location: 16 Prev | Next Part: 101546 *Qty: 2 Water shield $22.61
Location: 17 Prev | Next Part: 13524570 *Qty: 4 Heli-coil $3.74
Location: 18 Prev | Next Part: 134730 *Qty: 2 Brake disc Superseded
Location: 19 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
