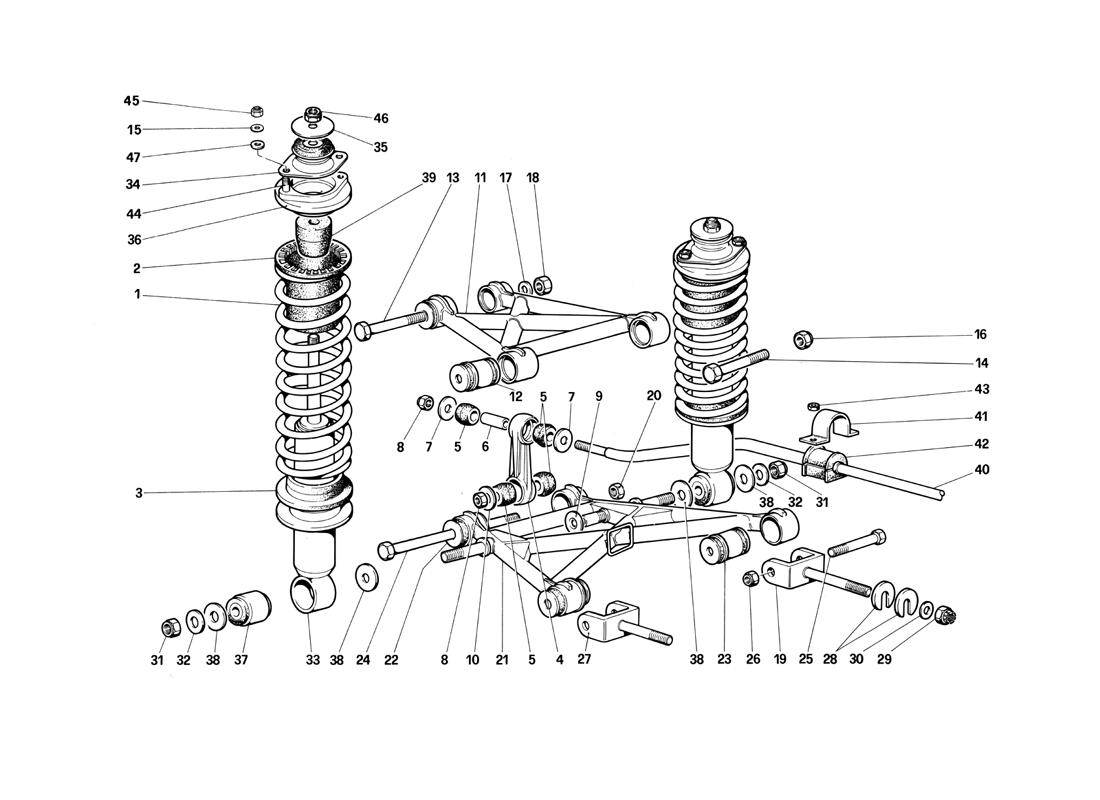

REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (UNTIL CAR NO. 75995)

Go to Split View

REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS (UNTIL CAR NO. 75995)

Location Part # Quantity* Description Price Add To Cart
1 124982 4 Suspension spring Unavailable
2 103263 4 Upper spacer Superseded
3 103264 4 Lower spacer $44.42
4 124330 2 Rod link $49.71
5 108244 8 Grommet $20.38
6 108294 2 Spacer tube $106.09
7 107409 4 Grommet retaining washer Unavailable
8 16104421 4 Nut Superseded
9 14489201 2 Washer Unavailable
10 124338 2 Washer $9.11
11 122964 2 Upper lever $2,392.64
12 111616 8 Rubber bush for upper levers Superseded
13 116699 2 Screw $130.29
14 121693 4 Screw
Until car no. 		$136.72
14 106419 4 Screw
Starting car no. 		$22.45
15 12646721 4 Washer Superseded
16 16105121 2 Nut Superseded
17 12601571 2 Washer Unavailable
18 16105121 2 Nut Superseded
19 116690 2 Rear fork
Not for B1 		Superseded
19 125889 2 Rear fork
Not for B1 		$140.62
20 101040 2 Nut $21.32
21 128415 2 Lower fork $3,362.59
22 120813 4 Lower rubber bush-hub holder side Superseded
23 129583 4 Rubber bushing
After exhaustion use no. 134883 		Superseded
24 120815 2 Screw $102.47
25 106422 4 Screw $35.42
26 12575821 2 Nut Superseded
27 116690 4 Fork
For B1 		Superseded
28 107339 4 Shim 2 mm. thichness Unavailable
28 107342 4 Shim 3,25 mm. thichness $1.14
28 107340 4 Shim 2,5 mm. thichness Unavailable
28 107341 4 Shim 3 mm. thichness Unavailable
28 101039 4 Shim 1 mm. thichness Unavailable
28 107338 4 Stiim 1,5 mm. thichness Unavailable
29 101040 4 Nut $21.32
30 101041 4 Washer Unavailable
31 12575821 4 Selflocking nut Superseded
32 106855 4 Washer Superseded
33 128430 4 Shock absorber Unavailable
34 116864 4 Hyperblock $404.88
35 116862 8 Hyperblock retaining washer $6.05
36 116861 4 Shock absorber securing cup Unavailable
37 125926 4 Estandblock $181.12
38 128509 8 Washer $9.66
39 116358 4 Shock absorber pad $91.98
40 124984 1 Rod link $899.33
41 104417 2 Rod retaining U bolt Unavailable
42 109010 2 Rod retaining pad $33.96
43 12575611 4 Stud Superseded
44 13543521 8 Stud Superseded
45 16104121 8 Nut Superseded
46 16105121 4 Nut Superseded
47 113113 4 Spacer Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
