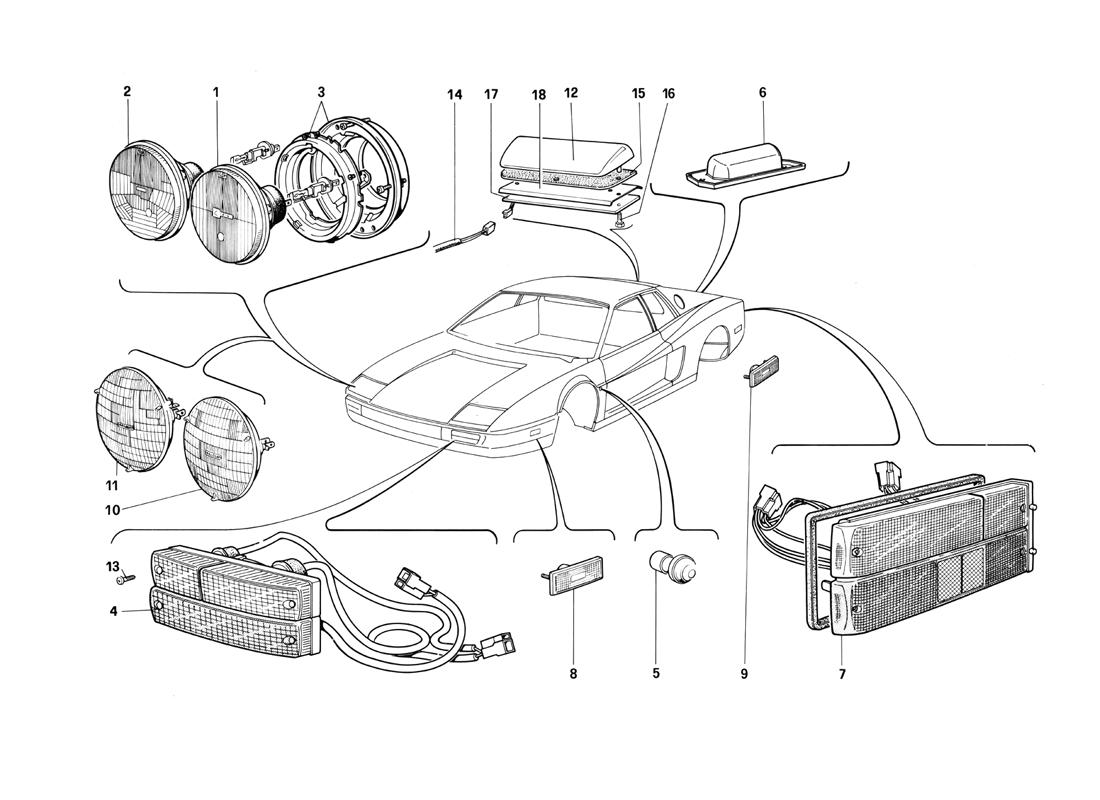

LAMPS

Go to Split View

LAMPS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61005400 *Qty: 2 High beam lamp
For F
$121.01
Location: 1 Prev | Next Part: 60907200 *Qty: 2 High beam lamp
Not for F
$196.52
Location: 2 Prev | Next Part: 61005600 *Qty: 2 Low beam lamp
For F
Call
Location: 2 Prev | Next Part: 60907400 *Qty: 2 Low beam lamp
Not for RHD - F - J
Call
Location: 2 Prev | Next Part: 60944800 *Qty: 2 Low beam lamp
For RHD and J
$146.15
Location: 3 Prev | Next Part: 61646500 *Qty: 1 Ring frame for left high beam lamp $117.72
Location: 3 Prev | Next Part: 61646700 *Qty: 1 Ring frame for left low beam lamp $70.23
Location: 3 Prev | Next Part: 61646600 *Qty: 1 Ring frame for right low beam lamp $64.44
Location: 3 Prev | Next Part: 61646400 *Qty: 1 Ring frame for right high beam lamp Call
Location: 4 Prev | Next Part: 61725800 *Qty: 1 Front right side - direction - flashing light for LHD
Not for US - D - F
Call
Location: 4 Prev | Next Part: 61536300 *Qty: 1 Lens for front right light
For US
Call
Location: 4 Prev | Next Part: 61815900 *Qty: 1 Front right side - direction - flashing light
For F
$1,016.30
Location: 4 Prev | Next Part: 61643200 *Qty: 1 Front right side - direction - flashing
For RHD and D
$2,682.23
Location: 4 Prev | Next Part: 61535900 *Qty: 1 Lens for front right light
For LHD
Call
Location: 4 Prev | Next Part: 61643300 *Qty: 1 Front left side - direction - flashing
For RHD and D
Call
Location: 4 Prev | Next Part: 61652400 *Qty: 1 Front left side - direction - flashing light
For US
Call
Location: 4 Prev | Next Part: 61725900 *Qty: 1 Front left side - direction - flashing light for LHD
Not for US - D - F
Call
Location: 4 Prev | Next Part: 61536200 *Qty: 1 Lens for front left light
For RHD
$113.81
Location: 4 Prev | Next Part: 61536400 *Qty: 1 Lens for front left light
For US
Call
Location: 4 Prev | Next Part: 61816000 *Qty: 1 Front left side - direction flashing light
For F
Call
Location: 4 Prev | Next Part: 61536000 *Qty: 1 Lens for front left light
For LHD
Call
Location: 4 Prev | Next Part: 61652300 *Qty: 1 Front riont side - direction flashing light
For US
Call
Location: 4 Prev | Next Part: 61536100 *Qty: 1 Lens for front right light
For RHD
Call
Location: 5 Prev | Next Part: 61646800 *Qty: 2 Side direction light
Not for US
Superseded
Location: 6 Prev | Next Part: 61558800 *Qty: 2 Plate light Superseded
Location: 7 Prev | Next Part: 61536600 *Qty: 1 Lens for rear left light $100.86
Location: 7 Prev | Next Part: 61536500 *Qty: 1 Lens for rear right light $100.86
Location: 7 Prev | Next Part: 61652800 *Qty: 1 Rear left light
For US and J
Call
Location: 7 Prev | Next Part: 61536800 *Qty: 1 Lens for rear left light Call
Location: 7 Prev | Next Part: 61643400 *Qty: 1 Rear right light
Not for US and J
$1,220.46
Location: 7 Prev | Next Part: 61536700 *Qty: 1 Lens for rear right light $100.86
Location: 7 Prev | Next Part: 61652700 *Qty: 1 Rear right light
For US and J
Call
Location: 7 Prev | Next Part: 61643500 *Qty: 1 Rear left light
Not for US and J
$781.27
Location: 8 Prev | Next Part: 61652500 *Qty: 2 Front side marker
For US
$16.46
Location: 9 Prev | Next Part: 61652600 *Qty: 2 Rear side marker
For US
Call
Location: 10 Prev | Next Part: 61610500 *Qty: 2 Headlamp main beams
For US
$43.26
Location: 11 Prev | Next Part: 61610600 *Qty: 2 Headlamp dipped beams
For US
$42.37
Location: 12 Prev | Next Part: 61892900 *Qty: 1 Additional stop lights
For US
$459.11
Location: 13 Prev | Next Part: 131373 *Qty: 12 Screw $15.56
Location: 14 Prev | Next Part: 129319 *Qty: 1 Cable $82.14
Location: 15 Prev | Next Part: 61895400 *Qty: 1 Gasket $26.72
Location: 16 Prev | Next Part: 61565100 *Qty: 2 Screw $2.80
Location: 17 Prev | Next Part: 61542000 *Qty: 1 Insulation $90.89
Location: 18 Prev | Next Part: 61567400 *Qty: 1 Support $39.57

* Quantity shown indicates the number of pieces used in the diagram.
