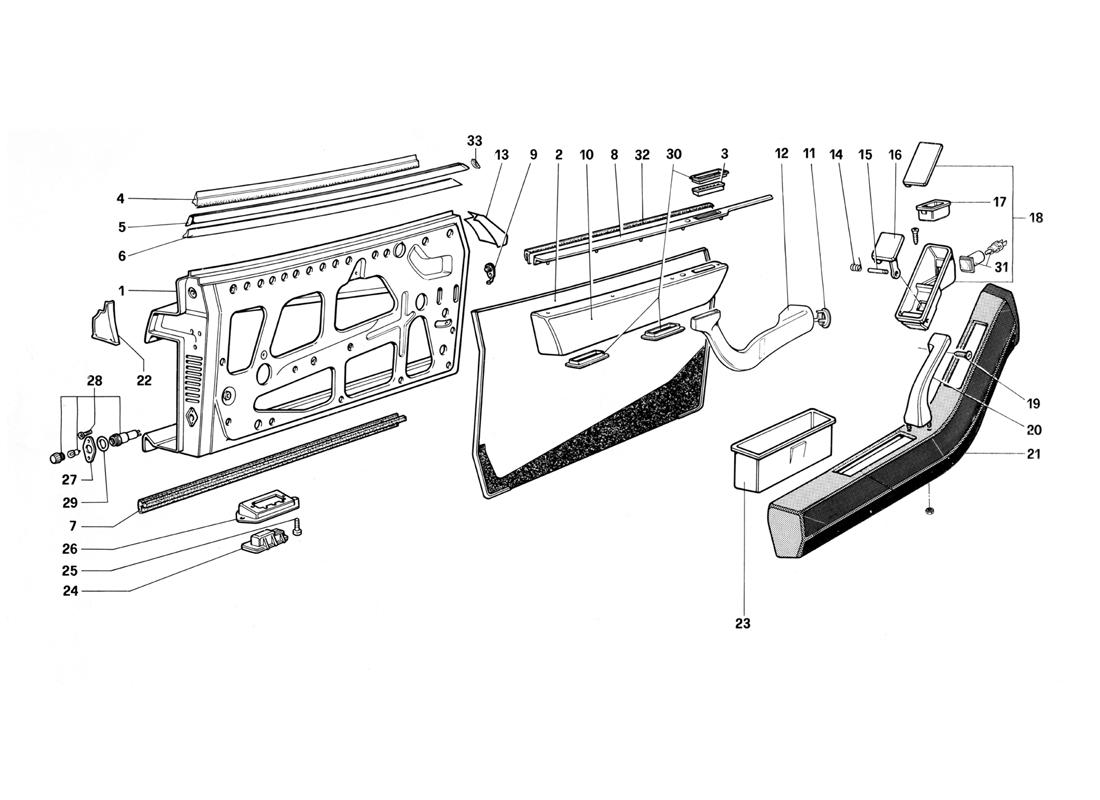

DOOR

Go to Split View

DOOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 61540500 *Qty: 1 Left door
For US - Not for J
$8,971.38
Location: 1 Prev | Next Part: 61501700 *Qty: 1 Left door
Not for US
$8,165.02
Location: 1 Prev | Next Part: 61501600 *Qty: 1 Right door
Not for US
$8,165.02
Location: 1 Prev | Next Part: 61540600 *Qty: 1 Right door
For US - Not for J
$9,997.81
Location: 2 Prev | Next Part: 61502000 *Qty: 1 Right panel $508.69
Location: 2 Prev | Next Part: 61502100 *Qty: 1 Left panel $508.69
Location: 3 Prev | Next Part: 61502200 *Qty: 1 Right air tube $4.75
Location: 3 Prev | Next Part: 61502300 *Qty: 1 Left air tube $4.75
Location: 4 Prev | Next Part: 61543800 *Qty: 1 Left gasket
Until car no 78847
$46.93
Location: 4 Prev | Next Part: 61543700 *Qty: 1 Right gasket
Until car no 78847
$43.97
Location: 4 Prev | Next Part: 61573600 *Qty: 1 Right gasket
From car no 78848
Call
Location: 4 Prev | Next Part: 61573700 *Qty: 1 Left gasket
From car no 78848
Call
Location: 5 Prev | Next Part: 61539200 *Qty: 1 Left outer moulding $450.20
Location: 5 Prev | Next Part: 61539300 *Qty: 2 Right outer moulding $423.72
Location: 6 Prev | Next Part: 61543600 *Qty: 1 LH run channel $145.18
Location: 6 Prev | Next Part: 61543500 *Qty: 1 RH run channel $145.18
Location: 7 Prev | Next Part: 61539600 *Qty: 1 Underdoor gasket $25.76
Location: 8 Prev | Next Part: 61559900 *Qty: 1 Right inner moulding $358.10
Location: 8 Prev | Next Part: 61560000 *Qty: 1 Left inner moulding $568.21
Location: 9 Prev | Next Part: 61503300 *Qty: 2 Switch Superseded
Location: 10 Prev | Next Part: 61503500 *Qty: 1 Upper covering for left panel $749.44
Location: 10 Prev | Next Part: 61503400 *Qty: 1 Upper covering for right panel $1,249.37
Location: 11 Prev | Next Part: 61503600 *Qty: 1 Aft tube ring $0.90
Location: 12 Prev | Next Part: 61503700 *Qty: 1 R.H. air tube $12.97
Location: 12 Prev | Next Part: 61503800 *Qty: 1 L.H. air tube $12.97
Location: 13 Prev | Next Part: 61505800 *Qty: 1 Left gasket for door front side $73.38
Location: 13 Prev | Next Part: 61505700 *Qty: 2 Right gasket for door front side $73.38
Location: 14 Prev | Next Part: 61504400 *Qty: 1 Left spring $3.15
Location: 14 Prev | Next Part: 61504300 *Qty: 1 Right spring $3.15
Location: 15 Prev | Next Part: 61504500 *Qty: 2 Pin $0.90
Location: 16 Prev | Next Part: 61504600 *Qty: 1 Right handle $9.45
Location: 16 Prev | Next Part: 61504700 *Qty: 1 Left handle $11.05
Location: 17 Prev | Next Part: 61504800 *Qty: 2 As tray box $43.42
Location: 18 Prev | Next Part: 61505000 *Qty: 1 Left ash tray Call
Location: 18 Prev | Next Part: 61504900 *Qty: 1 Right ash tray Call
Location: 19 Prev | Next Part: 15672801 *Qty: 1 Screw Call
Location: 20 Prev | Next Part: 61505100 *Qty: 1 Right inner handle $267.05
Location: 20 Prev | Next Part: 61505200 *Qty: 1 Left inner handle $267.05
Location: 21 Prev | Next Part: 61505400 *Qty: 1 Left armrest $1,171.55
Location: 21 Prev | Next Part: 61505300 *Qty: 2 Right armrest $730.18
Location: 22 Prev | Next Part: 61506000 *Qty: 2 Left gasket for door rear side Superseded
Location: 22 Prev | Next Part: 61505900 *Qty: 4 Right gasket for door rear side Superseded
Location: 23 Prev | Next Part: 61505600 *Qty: 2 Door glove box Call
Location: 24 Prev | Next Part: 60842100 *Qty: 2 Courtesy lamp Call
Location: 25 Prev | Next Part: 17668201 *Qty: 2 Screw Call
Location: 26 Prev | Next Part: 60842000 *Qty: 2 Frame $5.47
Location: 27 Prev | Next Part: 102249 *Qty: 6 Frame $1.32
Location: 28 Prev | Next Part: 102248 *Qty: 2 Open door light Superseded
Location: 29 Prev | Next Part: 61647000 *Qty: 2 Gasket Superseded
Location: 30 Prev | Next Part: 61533100 *Qty: 1 Frame for air outlet $29.77
Location: 31 Prev | Next Part: 61535800 *Qty: 1 Open door marker $84.40
Location: 32 Prev | Next Part: 61557800 *Qty: 1 Inner gasket Superseded
Location: 33 Prev | Next Part: 61502800 *Qty: 1 Plug for RH moulding
From car No 78848
Superseded
Location: 33 Prev | Next Part: 61502900 *Qty: 1 Plug for LH moulding
From car No 78848
Superseded

* Quantity shown indicates the number of pieces used in the diagram.
