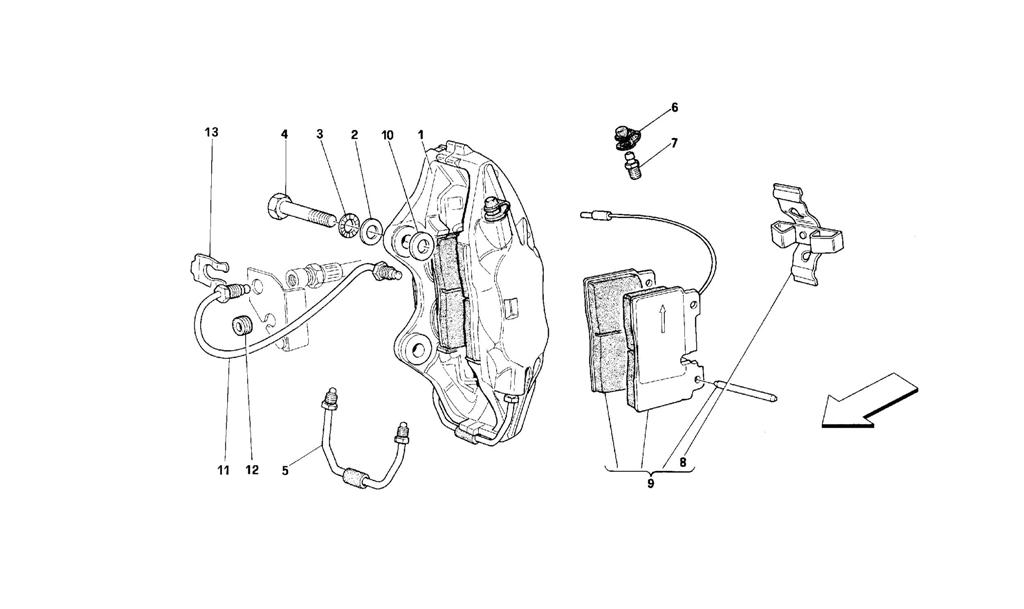

FRONT BRAKES CALIPERS

Go to Split View

FRONT BRAKES CALIPERS

Location Part # Quantity* Description Price Add To Cart
1 151901 1 R.H. front caliper with pads (BREMBO) Unavailable
1 151902 1 L.H. front caliper with pads (BREMBO) Unavailable
1 142478 1 L.H. front caliper with pads (TEVES) $2,065.61
1 142479 1 R.H. front caliper with pads (TEVES) $1,967.25
2 106616 4 Washer Unavailable
3 10615874 4 Washer Unavailable
4 174214 4 Screw $5.52
5 151962 2 Connection hose (Caliper TEVES) $164.44
5 172868 2 Connection hose (Caliper BREMBO) $55.74
6 152955 2 Cap (Caliper BREMBO) $6.88
6 147136 2 Cap (Caliper TEVES) $109.27
7 147135 2 Screw (Caliper TEVES) $20.83
7 152954 2 Screw (Caliper BREMBO) $7.41
8 151963 2 Pads spring (Caliper TEVES) $38.38
8 172348 2 Pads spring (Caliper BREMBO) $32.42
9 70000766 1 Set of front pads with spring and pin (TEVES) Superseded
9 70000823 1 Set of front pads with spring and pin (BREMBO) Unavailable
10 156260 0 Washer 0,2 mm thickness -Possible mounting $1.50
10 156261 0 Washer 0,3 mm thickness -Possible mounting $1.57
10 156262 0 Washer 0,5 mm thickness -Possible mounting $1.50
10 156263 0 Washer 0,6 mm thickness -Possible mounting $1.52
10 156264 0 Washer 0,7 mm thickness -Possible mounting $1.37
10 156265 0 Washer 0,8 mm thickness -Possible mounting Unavailable
10 156266 0 Washer 1,0 mm thickness -Possible mounting $1.50
11 147974 1 Pipe from hose to R.H. front caliper (ATE) $20.46
11 147975 1 Pipe from hose to L.H. front caliper (ATE) $10.47
11 152049 1 Pipe from hose to R.H. front caliper (BREMBO) $23.69
11 152050 1 Pipe from hose to L.H. front caliper (BREMBO) $23.69
12 10396380 2 Cable grommet Unavailable
13 116374 4 Spring $2.82

* Quantity shown indicates the number of pieces used in the diagram.
