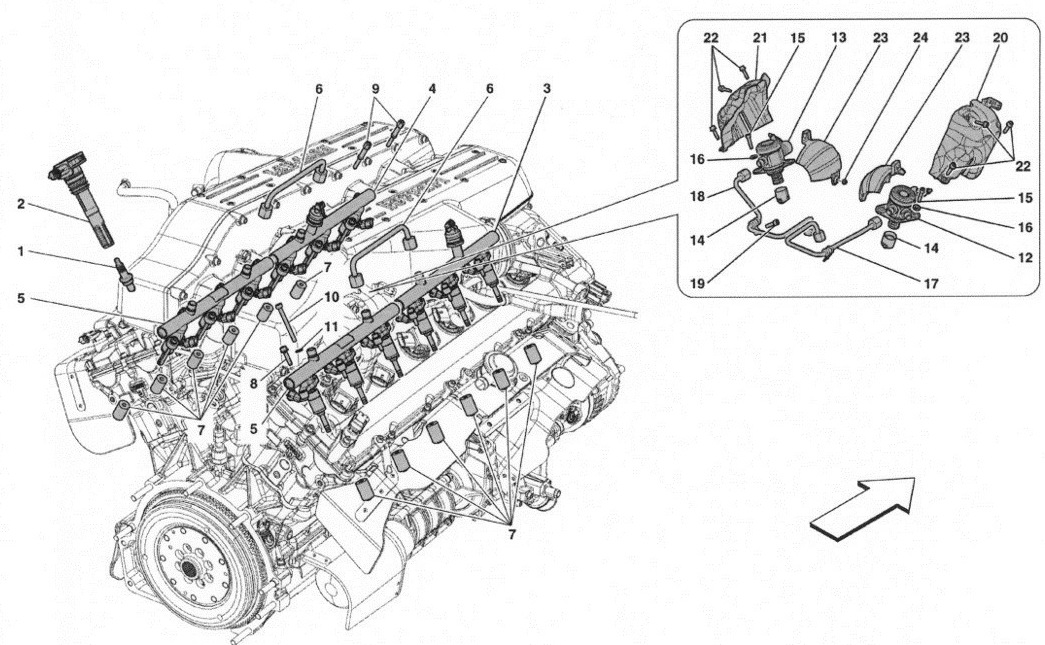

INJECTION - IGNITION SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 254771 0 SPARK PLUG -NGK- $74.50
2 248406 0 IGNITION COIL Superseded
3 260166 0 COMPL. FRONT RH FUEL PIPE -Also order pipe ref. 6- $2,486.06
4 260167 0 COMPL. FRONT LH FUEL PIPE -Also order pipe ref. 6- $2,486.06
5 255639 0 COMPL. REAR FUEL PIPE -Also order pipe ref. 6 and pipe ref. 17 for RH cylinder bank or ref. 18 for LH cylinder bank- $1,953.37
6 247918 0 FUEL PIPE CONNECTING FRONT AND REAR RAILS $249.91
7 255724 0 SHIM $10.58
8 231620 0 SCREW -M6 X 25- Unavailable
9 260965 0 STUD BOLT -M6 X 23- Unavailable
10 14303824 0 SCREW -M6 X 60- $8.81
11 11197774 0 WASHER $0.90
12 259334 0 RH FUEL PUMP $786.79
13 259335 0 LH FUEL PUMP $786.79
14 212797 0 CUP $69.04
15 14305434 0 SCREW Unavailable
16 12639724 0 WASHER $0.90
17 254515 0 RH FUEL PIPE $283.65
18 254516 0 LH FUEL PIPE $283.65
19 231618 0 SCREW -M6 X 20- Unavailable
20 263982 0 RH SOUNDPROOFING COVER Unavailable
21 263983 0 LH SOUNDPROOFING COVER Unavailable
22 231619 0 SCREW -M6 X 22- Unavailable
23 264002 0 PUMP COVER Unavailable
24 14058411 0 NUT Superseded

* Quantity shown indicates the number of pieces used in the diagram.
